Cable Specifications -- Continued
Copper Cable
Category 3: (minimum requirement)
Gauge 24 to 22 AWG
Attenuation 11.5 dB/100m @ 5-10 MHz
Maximum Cable Distance 100 meters
Category 5: (recommended)
Gauge 24 to 22 AWG
Attenuation 22.0 dB /100m @ 100 MHz
Maximum Cable Distance 100 meters
• Straight-through OR twisted-pair cable may be used.
• Shielded twisted-pair OR unshielded twisted-pair may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network.
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

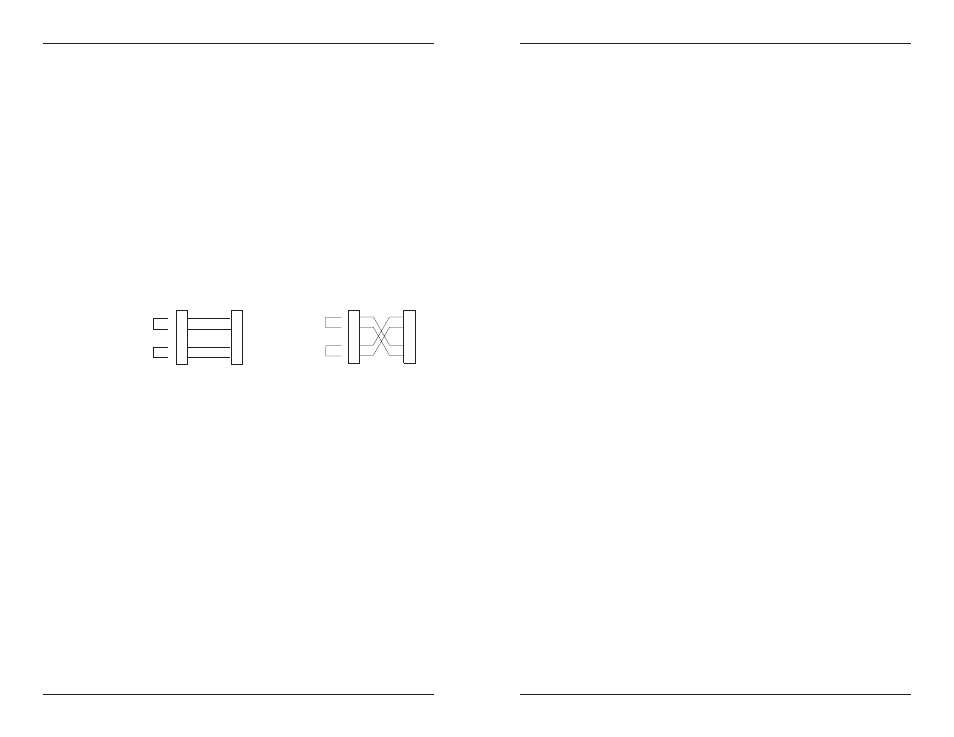

Crossover Cable
1
2
3
6
Straight-Through Cable
Twisted Pair #1 Twisted Pair #1
Twisted Pair #2 Twisted Pair #2
1
2
3
6
1
2
3
6
1
2
3
6
9 [email protected] -- Click the “Transition Now” link for a live Web chat.
Technical Specifications
For use with Transition Networks Model CETTF10xx-200 or equivalent.
Standards IEEE 802.3™
Data Rate 10 Mb/s
Dimensions 3.4" x 0.86" x 5.0" (86 x 22 x 127 mm)
Weight 3 oz (91 g) (approximate)
Power Consumption 2.3 watts
MTBF 408,231 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
1,412,845 hours (Bellcore7 V5.0)
Environment Tmra*: 0 to 60°C (32 to 140°F )
Storage Temp: -20 to 85°C (-4 to 185°F)
Humidity: 10 to 90%, non condensing
Altitude: 0 to 10,000 feet
Warranty Lifetime
*Manufacturer’s rated ambient temperature: Tmra range for this media converter
depends on the physical characteristics and the installation configuration of the
Transition Networks PointSystem™ chassis in which this media converter will be
installed.
The information contained in this user’s guide is subject to change. For the most
up-to-date version, see the user’s guide on line at: www.transition.com.
