CETTF10xx-200
6
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Operation
-- Continued
Product Features
AutoCross
™
The AutoCross feature detects and configures the twisted-pair copper port on
the CETTF10xx-200 media converter to the correct straight-through (MDI) or
crossover (MDI-X) configuration. This feature allows either MDI or MDI-X
cable to connect the media converter to devices such as hubs, transceivers, or
network interface cards (NICs).
NOTE: When AutoCross is disabled, the 10Base-T (copper) port is in MDI-X
(crossover) mode.

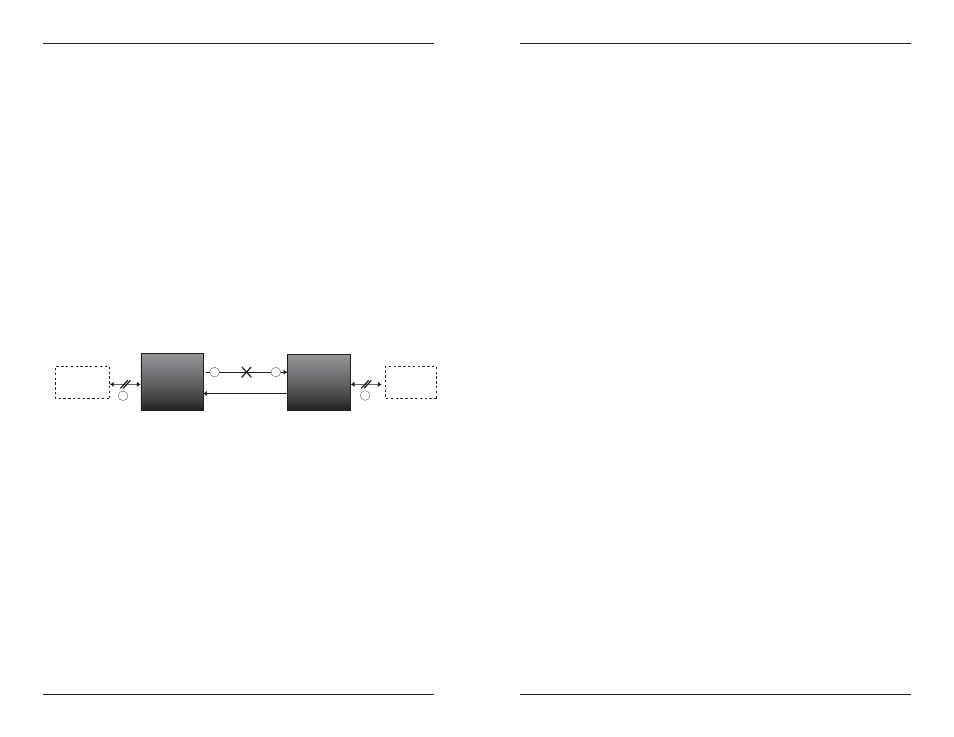

Link Pass-Through
The Link Pass-Through feature allows the media converter to monitor both the
fiber and copper RX (receive) ports for loss of signal. In the event of a loss of
an RX signal (1), the media converter will automatically disable the TX
(transmit) signal (2), thus, “passing through” the link loss (3). The far-end
device is automatically notified of the link loss (4), which prevents the loss of
valuable data unknowingly transmitted over an invalid link.
NOTE: An enable/disable switch allows the Link Pass-Through feature to be
disabled. Link Pass-Through may interfere with the Auto-Negotiation feature
of other devices in networks where there are two media converters installed in
series.
4
1
Media
Converter A
Media
Converter B
Near-End
Device
Far-End
Device
original fault
on the copper link
media converter B
disables the copper link
media converter A
disables the fiber TX link
3
2
media converter B
loses the fiber RX link
7
[email protected] -- Click the “Transition Now” link for a live Web chat.
Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber Cable
Bit Error Rate:
<10-9
Single mode fiber (recommended):
9 µm
Multimode fiber (recommended):
62.5/125 µm
Multimode fiber (optional):
100/140, 85/140, 50/125 µm
CETTF1011-200
850 nm multimode
Fiber Optic Transmitter Power:
min: -19.0 dBm
max: -14.0 dBm
Fiber Optic Receiver Sensitivity:
min: -32.5 dBm
max: -14.0 dBm
Link Budget:
13.5 dB
CETTF1012-200
1310 nm single mode
Fiber Optic Transmitter Power:
min: -27.0 dBm
max: -10.0 dBm
Fiber Optic Receiver Sensitivity:
min: -34.0 dBm
max: -14.0 dBm
Link Budget:
7.0 dB
CETTF1013-200
850 nm multimode
Fiber Optic Transmitter Power:
min: -19.0 dBm
max: -14.0 dBm
Fiber Optic Receiver Sensitivity:
min: -32.5 dBm
max: -14.0 dBm
Link Budget:
13.5 dB
CETTF1014-200
1310 nm single mode
Fiber Optic Transmitter Power:
min: -27.0 dBm
max: -10.0 dBm
Fiber Optic Receiver Sensitivity:
min: -34.0 dBm
max: -14.0 dBm
Link Budget:
7.0 dB
CETTF1022-200
1310 nm single mode
Fiber-optic Transmitter Power:
min: -15.0 dBm
max: -5.0 dBm
Fiber-optic Receiver Sensitivity:
min: -34.0 dBm
max: -14.0 dBm
Link Budget:
19.0 dB
CETTF1027-200
1300 nm multimode
Fiber-optic Transmitter Power:
min: -19.0 dBm
max: -15.0 dBm
Fiber-optic Receiver Sensitivity:
min: -32.5 dBm
max: -14.0 dBm
Link Budget:
13.5 dB
Product is certified by the manufacturer to comply with DHHS Rule
21/CFR, Subchapter J applicable at the date of manufacture.
The fiber optic transmitters on this device meets Class I Laser safety
requirements per IEC-825/CDRH standards and complies with 21
CFR1040.10 and 21CFR1040.11.
CAUTION: Visible and Invisible Laser Radiation When Open. Do Not
Stare Into Beam Or View Directly With Optical Instruments.
CAUTION: Use of controls, adjustments or the performance of
procedures other than those specified herein may result in hazardous
radiation exposure.
