116
10
22
25
24
6, 7, 8
14
15
21
11
23
32
9
13
12
31
26
4
27, 28, 29, 30
20
UNIT
SET CL
SETTING
UNIT No.
CODE No.
TEST
SET DATA
R.C. No.
2
3, 904, 905
901, 902, 903
19

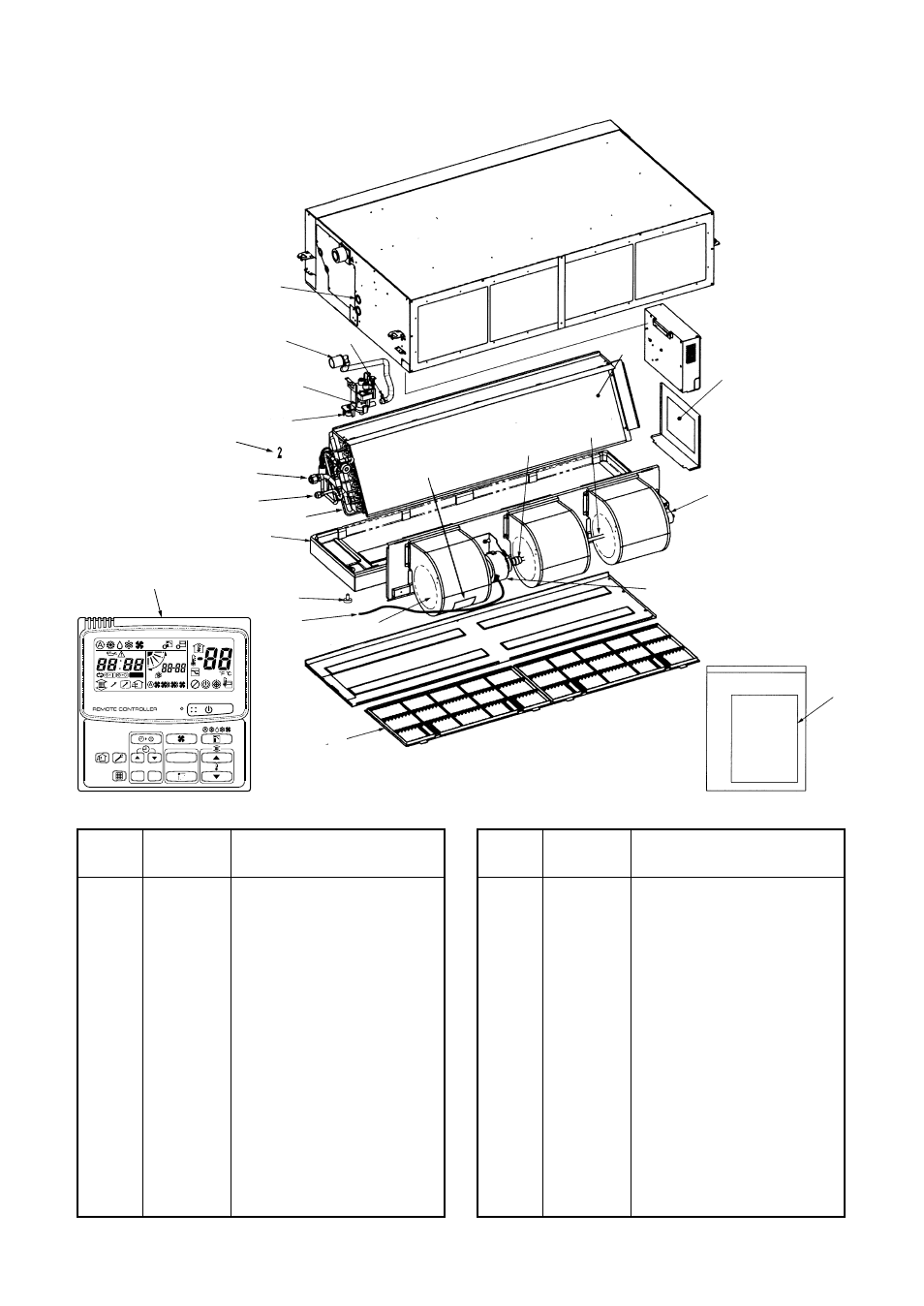

RAV-SM1001BT-E / SM1401BT-E
Location
Part Description
No.
2 43019904 Holder, Sensor
3 43047609 Bonnet
4 43079249 Band, Hose
10 43120220 Fan, Multi Blade
11 43121713 Pump Ass’y, Drain
12 43121708 Motor, Fan
13 43125135 Bearing, Shaft
14 43125155 Coupling
15 43125156 Shaft
19 4314J177 Distributor Ass’y
20 4314J184 Refrigeration cycle Ass’y
21 43151281 Switch, Float
22 43160553 Lead, Motor, Fan
23 43170233 Hose, Drain
Location
Part Description
No.
24 43172166 Pan Ass’y, Drain
25 43179110 Plug
26 43180311 Air Filter
27 4316V194 Remote Controller
28 4316V195 Remote Controller
29 4316V196 Remote Controller
30 4316V197 Remote Controller
31 4318T458 Owner’s Manual
32 43196012 Bushing
901 43194026 Soket
902 43194029 Bonnet
903 43194055 Nut, Flare, 3/8, IN
904 43194078 Nut, Flare, 5/8, IN
905 43194079 Soket
