SecuGen _______________________________________________________ Products - 8
PC Peripheral Type,
USB Fingerprint Recognition Device
FDU02
SGD 03-03210001A
SecuGen FDU0
2
Mounting
♦
Cable connection (Between USB interface and Sensor)

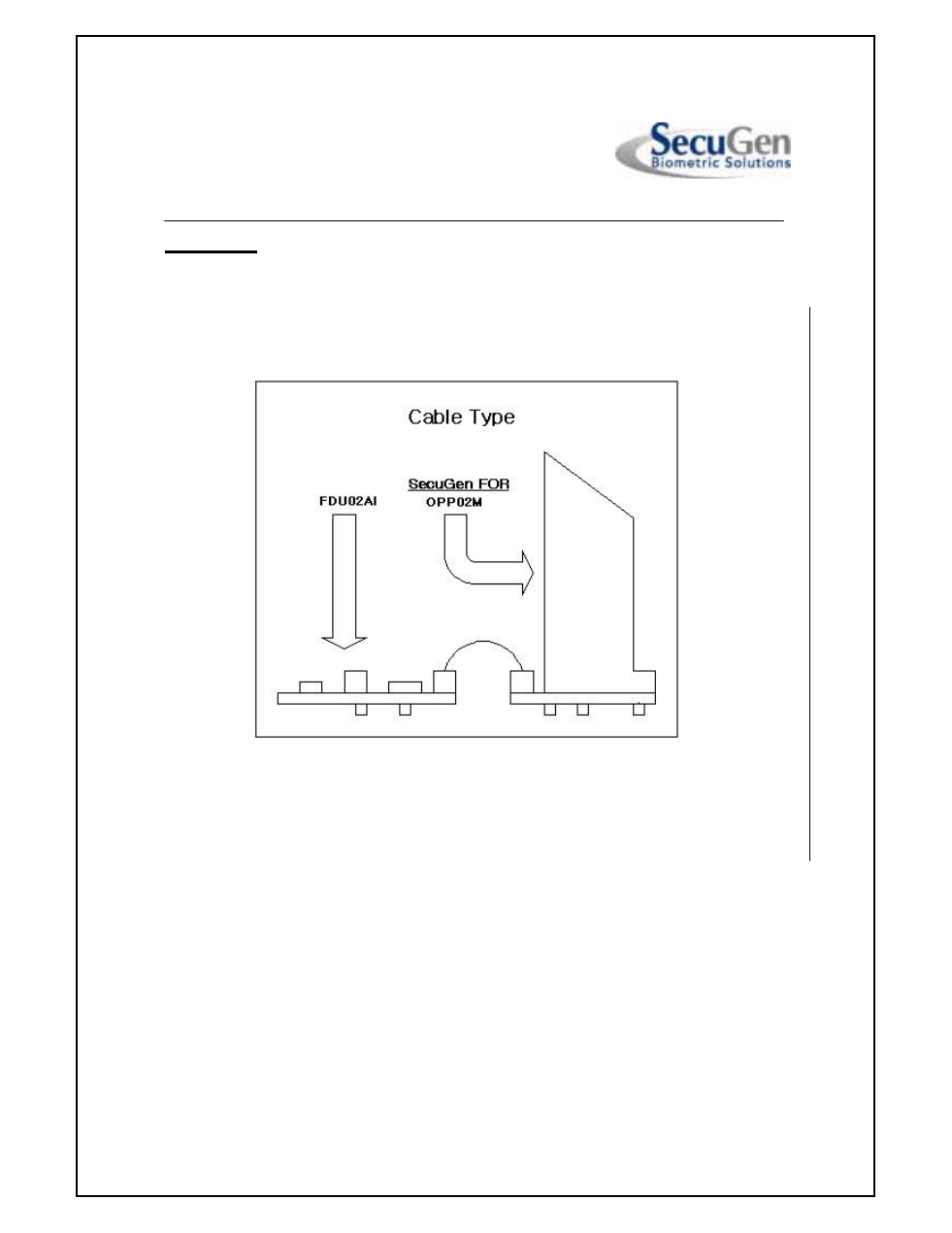

FDU02AI USB interface board (FDU02AI) is cable-connected to the Fingerprint Sensor by a 9-
pin cable connection (use the Molex 9 Pin Connector P/N 53048-0910).
