9
Parallel Interface Connector Configuration
All standard parallel pole displays will have a DB25 male connector. It
is connected to the printer port of the computer.
1.
–Strobe
2.
Data 0
3.
Data 1
4.
Data 2
5.
Data 3
6.
Data 4
7.
Data 5
8.
Data 6
9.
Data 7
10.
–Ack
11.
Busy
12-17
NC
18-25
Ground
For pass-through models, the display cable comes with a dual
DB25M/F connector. The DB25M is to be connected to the computer
while the DB25F is for connection to the peripheral.
1.
–Strobe
2.
Data 0
3.
Data 1
4.
Data 2
5.
Data 3
6.
Data 4
7.
Data 5
8.
Data 6
9.
Data 7
10.
–Ack
11.
Busy
12.
Paper End
13.
Select
14.
-Auto Feed
15.
-Error
16.
-Initialize Printer
17.
-Select In
18-25.
Ground

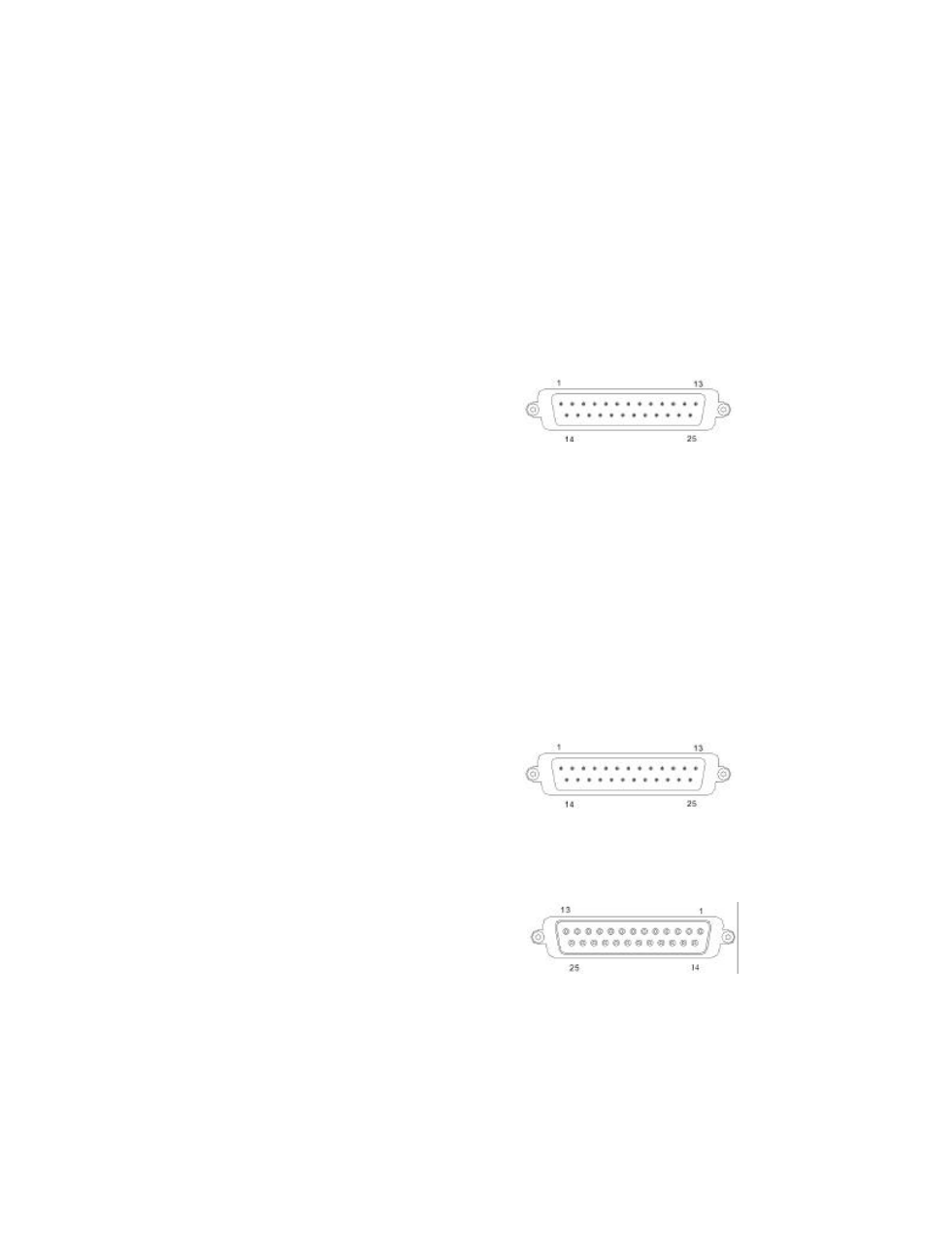

DB25M (to computer)
DB25M (to computer)
DB25F (to peripheral)
