6 I N S T A L L A T I O N
WARNING: Death, injury and equipment damage
may result from improper positioning. It is the
operator’s responsibility to ensure the oven is properly
positioned on countertop daily. TurboChef will not warrant
any damage or injury to ovens that fall off countertops due
to improper placement.
C 3 O V E N A S S E M B L Y

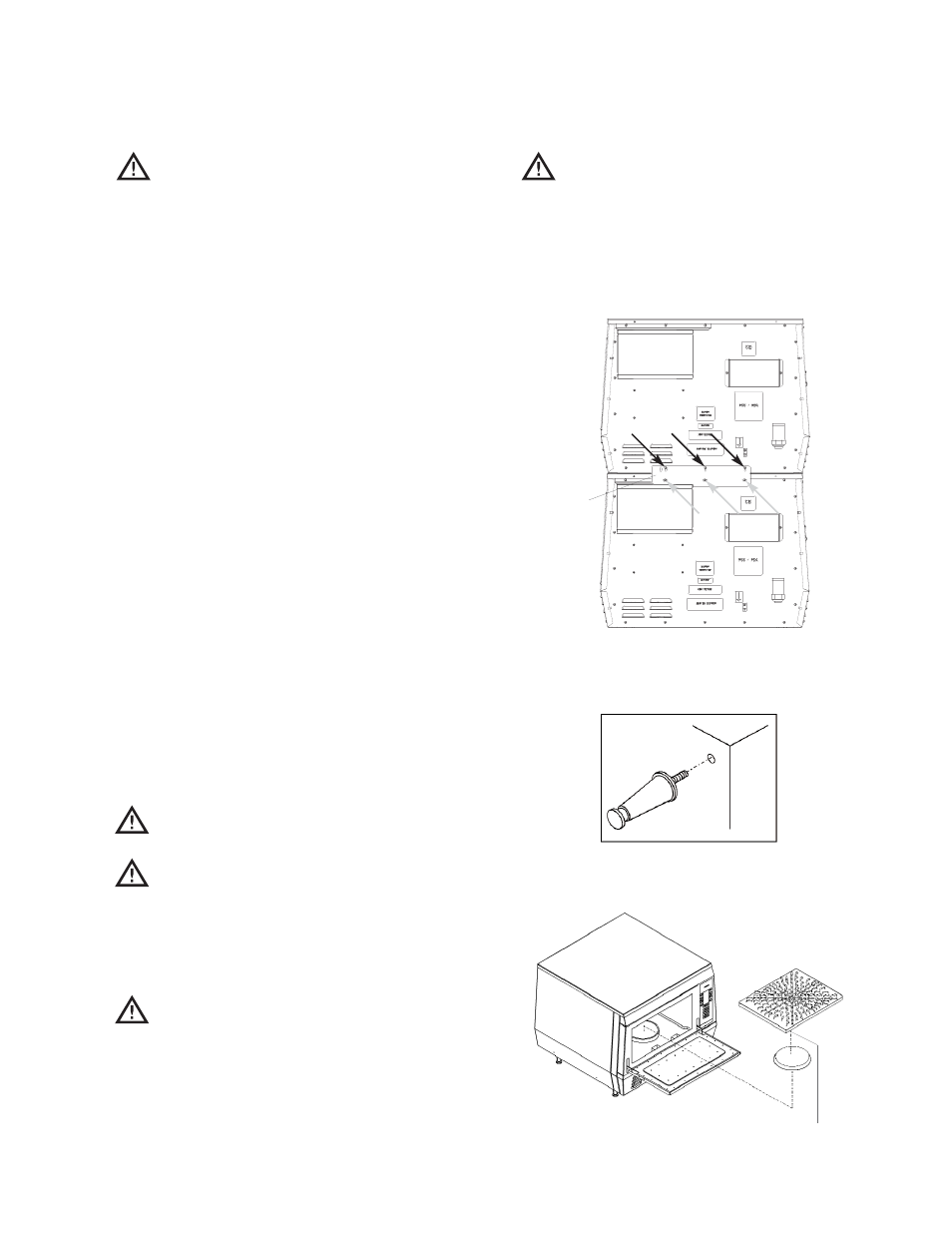

Double Stacking Ovens
Figure 1
1. Ensure the surface that will hold the stacked ovens can
support the total weight (510 lbs. (231 kg)).
2. Allow each oven adequate time to cool and then
unplug them.
NOTE: If you are stacking the ovens on a TurboChef
oven cart, make sure that the bottom oven is bolted to
the cart and the wheels are locked.
3. Attach the Stacking Bracket (TC3-0323) to the back
of the bottom oven:
a. Remove the screws marked with gray arrows in
Figure 1.
b. Align the holes on the Stacking Bracket with the
holes on the oven and reinstall the screws.
c. Be sure to orient the bracket as shown in Figure 1.
4. Remove the legs of the oven that will be placed on top.
This requires two or more persons—at least one person
to lift and one person to unscrew the legs.
5. Remove the screws from the oven that will be placed on
top, as marked with black arrows in Figure 1.
6. Place the oven on top of the oven with the stacking
bracket attached.
WARNING: Do not attempt to lift the oven with
fewer than 2 people.
WARNING: When lifting the oven, position at
least one person on each side. Do not lift the oven
from the front and back. Do not use the handle to
lift the oven.
8. Align the holes on the Stacking Bracket with the holes
on the top oven and reinstall the screws.
WARNING: Do not stack ovens over two-high.
Oven Assembly and Ceramic Platter Installation
Figure 3
1. Carefully remove the packing material from the ceramic
cooking platter and Wave Guide Cap.
2. Open the oven door and place the Wave Guide Cap on
top of the wave guide (center of cavity floor).
3. Slide the cooking platter along the side rails in the
cook cavity (See Front & Back label on platter).
F I G U R E 2 : Oven Leg Removal
F I G U R E 1 : Double Stacking Ovens
F I G U R E 3 : Oven Assembly and Ceramic Platter Installation
Lip faces forward
Stacking Bracket
C A U T I O N : Equipment damage may occur from
improper installation of the ceramic platter.
Install the ceramic platter with the rounded corners to
rear of oven (the lip of the platter should face forward).
If door does not close with the platter installed, DO NOT
force the door closed . Call TurboChef for assistance at
800. 90TURBO or +1 214-379-6000.
