Basic PDUs
✔ Multiple Outlets
✔ Long Input Power Cord ✔ All-Metal Cabinet with
Versatile Mounting Options
Tripp Lite Basic PDUs reliably distribute AC power from a UPS system, generator or utility wall outlet to multiple devices. Basic PDUs offer high-
quality plug/outlet connections and a switch-free design to prevent the PDU from being accidentally disconnected or shut down. Versatile all-metal
cabinets with detachable mounting hardware accommodate a variety of mounting options: wallmount, under-counter and 19-inch rackmount
mounting in 1U and/or zero-U formats*. Basic PDUs are available in a variety of capacities from 15A to 30A. The PDUNV model features multiple
detachable plugs to connect the PDU to a variety of outlets. The PDU40TDUAL model features two separate power circuits (with corresponding
color-coded power cord, circuit breaker and outlets), making it ideal for servers with redundant power supplies and other equipment in loaded racks.
* See specifications for mounting options supported by each model.
SPECIFICATIONS
Input Input Unit 0U Wallmount/
Input Maximum Plug Outlet Front Rear Cord Dimensions 1U Vertical Under Counter
Model Voltage Input Current Breakers Type Qty. & Type
(E)
Outlets Outlets Length (H x W x D, in) Rackmount Mount Mount
PDU1215 120V 15A 1 x 15A 5-15P 13 (5-15R) 1 12 15 ft. 1.75 x 17.5 x 4.5 ✔ ✔ ✔
PDU1220 120V 20A 1 x 20A 5-20P 13 (5-15/20R) 1 12 15 ft. 1.75 x 17.5 x 4.5 ✔ ✔ ✔
PDU1220T 120V 20A 1 x 20A L5-20P 13 (5-15/20R) 1 12 15 ft. 1.75 x 17.5 x 4.5 ✔ ✔ ✔
PDU2430 120V 30A 2 x 15A L5-30P 24 (5-15R) 12 12 15 ft. 1.75 x 17.5 x 4.5 ✔ ✔ ✔
PDU1230 208/240V 30A 2 x 15A, 4 x 10A L6-30P 18 (2 C19 / 16 C13) 4 C13 / 2 C19 12 C13 15 ft. 1.75 x 17.5 x 5.25 ✔ ✔ ✔
PDU1415 120V 15A 1 x 15A 5-15P 14 (5-15R) n/a 14 15 ft. 1.75 x 25.75 x 2.25 n/a ✔ ✔
PDU1420T 120V 20A 1 x 20A L5-20P 14 (5-15/20R) n/a 14 15 ft. 1.75 x 25.75 x 2.25 n/a ✔ ✔
PDU40TDUAL 120V 2 x 20A 2 x 20A L5-20P / 5-20P (2) (B) 40 (5-15/20R) 40 n/a 2 x 10 ft. 3 x 71 x 1.5 n/a ✔ ✔
PDUNV 100-250V 16A 2 x 16A Supports 6 plugs (C) 14 (12 C13 / 2 C19) 4 C13 8 C13 / 2 C19 10 ft. 1.75 x 17.5 x 4.25 ✔ ✔ ✔
PDU12IEC 100-250V 16A 2 x 16A C20 inlet (no cord) (D) 14 (12 C13 / 2 C19) 4 C13 8 C13 / 2 C19 n/a 1.75 x 17.5 x 4.25 ✔ ✔ ✔
PDUV15 120V 15A 1 x 15A 5-15P 12 (5-15R) 12 n/a 15 ft. 1.75 x 36 x 1.25 n/a ✔ ✔
PDUV20 120V 20A 1 x 20A 5-20P 12 (5-15/20R) 12 n/a 15 ft. 1.75 x 36 x 1.25 n/a ✔ ✔
PDUV30HV 208V 30A (A) 2 x 15A L6-30P 38 (32 C13 / 6 C19) 38 n/a 10 ft. 3.5 x 63.75 x 2.25 n/a ✔ ✔
(A) Code-derated maximum input current is 80% of value shown.
(B) PDU40TDUAL is a two-corded, dual-circuit PDU in a vertical strip format with (2) twist-lock L5-20P plugs
and (2) adapters to support connection to straight-blade 5-20R outlets.
(C) PDUNV includes a C20 input plug, plus 5 adapters which terminate in C14, 5-15P, 5-20P, L5-20P or L6-20P.
(D) PDU12IEC has a C20 power inlet. User must supply input cord with C19 connection to attach to the PDU,
and any plug type to connect to a utility source. (E) 5-15/20R outlets accept 5-15P or 5-20P plugs.
Certifications vary by model.
Multiple High-Quality Outlets Long Input Cord with High-Quality Input Plug AC Circuit Breaker Protection
Rugged All-Metal Housing Secure Mounting Hardware Grounding Lug Twist-Lock L5-20P to Straight-Blade 5-20P Plug Adapters Dual Circuits H G F E D
C B A

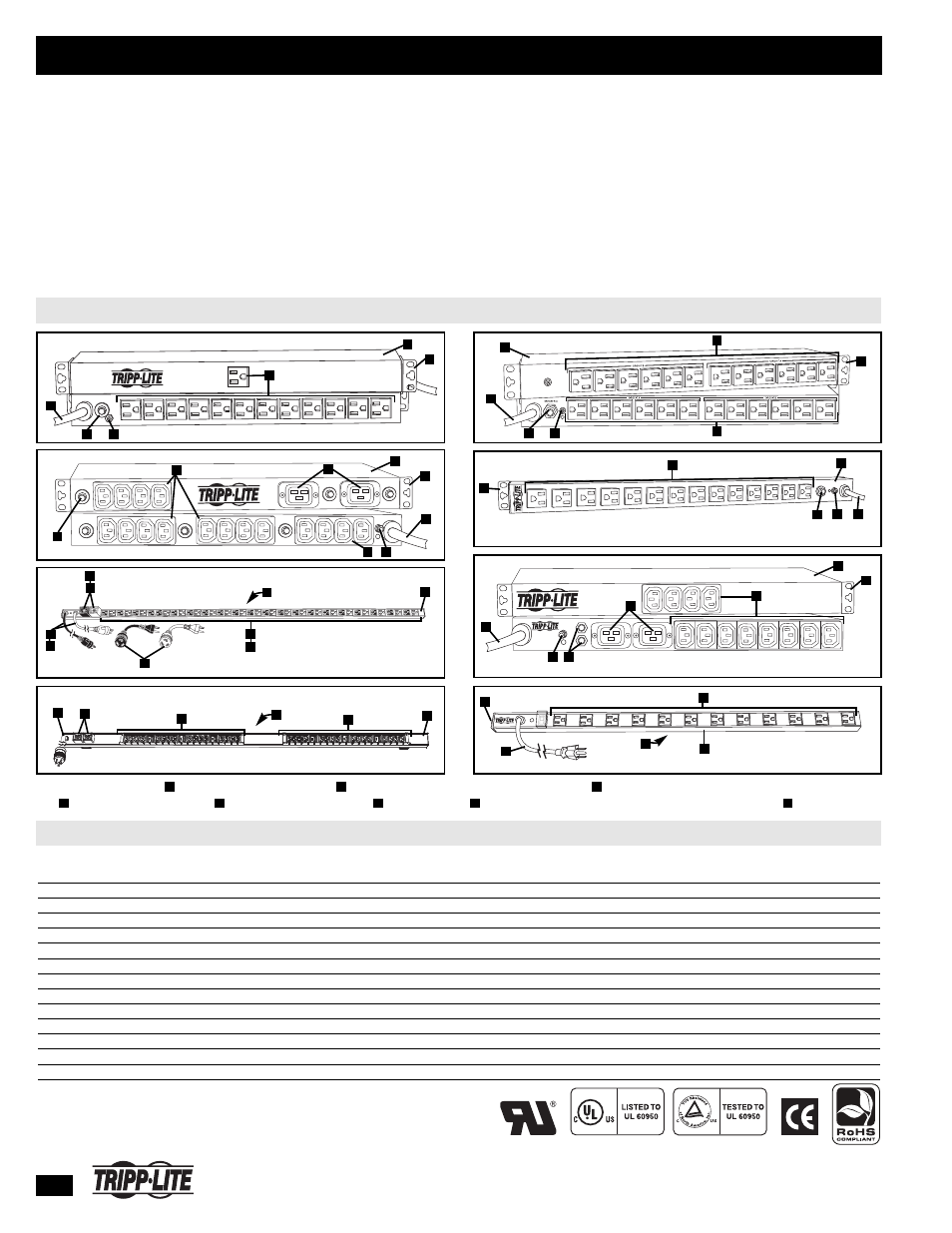

FEATURES
PDU1215
PDU1220 & PDU1220T have 5-15/20R outlets PDU2430
PDU1230
PDU1415
PDU1420T has 5-15/20R outlets
PDU40TDUAL
PDUNV
PDU12IEC has C20 inlet for detachable input cord (user-supplied)
PDUV30HV
front panel
rear panel
A
B
C
D
E
F
front panel
rear panel
C
A
A
B
D
E
F
B
H
H
C
G
D E (not shown)
D
E
A
A
B
C F
rear panel
E
A D
C F B
front panel
rear panel
A
D
E
F C
B
A
A
A A
C D B E (not shown)
A
H
PDUV15
PDUV20 has 5-20P plug and 5-15/20R outlets
B
C
D
A
E (not shown)
