PF Series

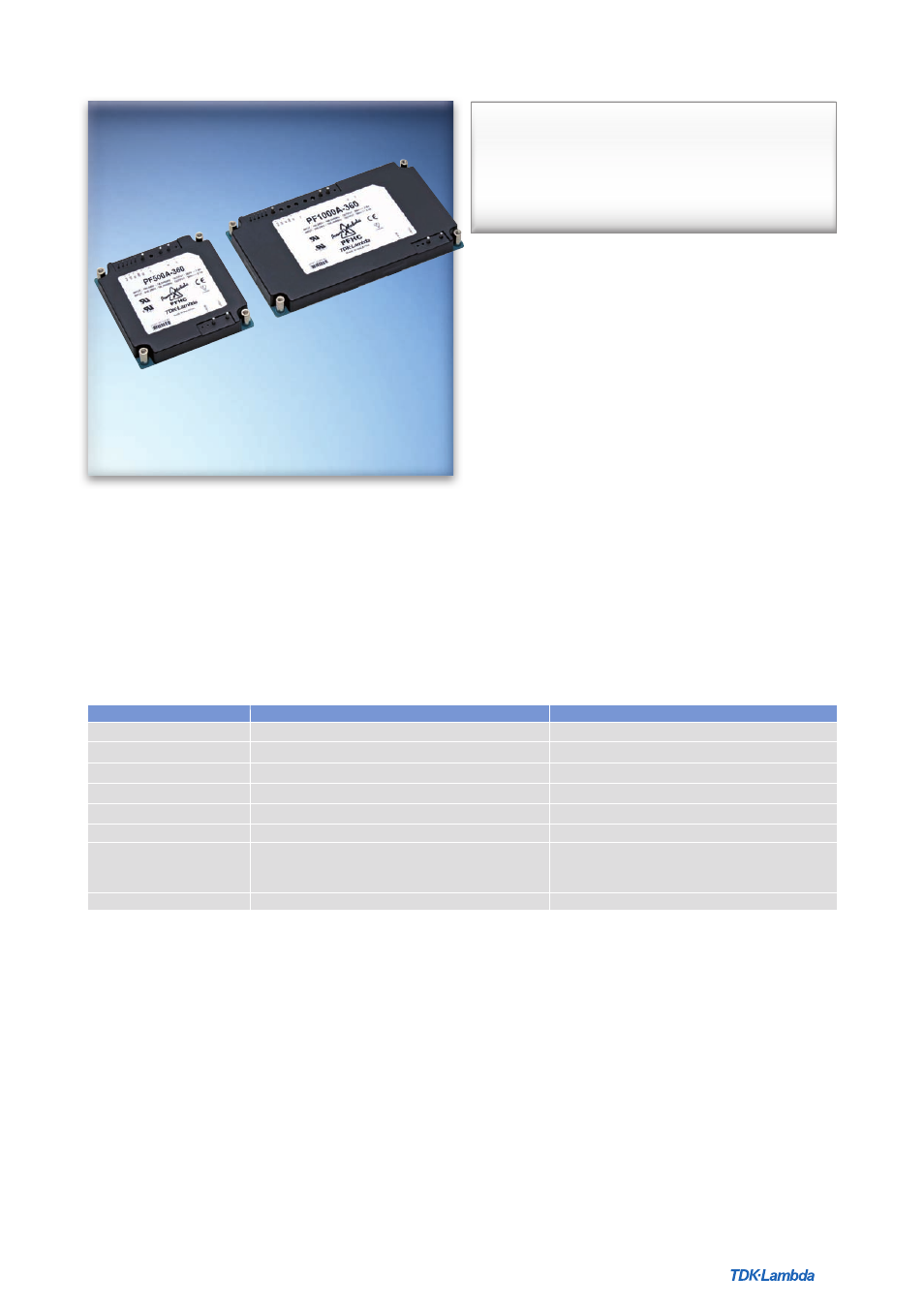

The PF series of AC-DC front end converters provide a
regulated high voltage DC output to power the TDK-L PF
and PAF families of DC-DC converters, allowing the user
to create a full ‘custom’ PSU, from standard parts,
featuring wide input AC-DC operating range and power
factor / harmonic correction. They may be connected in
parallel to achieve higher power ratings or N+1
redundancy.
• Wide AC input voltage range
• Power factor / harmonic correction
• 3kVAC input / output isolation
• EN60555-2 compliant
• Active current share
• Enable signal
• Inverter good signal
• Constant switching frequency
• N+1 redundancy
AC/DC converters, front end
converters – regulated high
voltage output
Series PFE500A PFE1000A
Warranty 2 years 2 years
Format, closed closed
Industry standard ½brick, thru hole ½brick, thru hole
Baseplate yes yes
Output voltage 360V 360V
Input voltage range 85 – 264 AC 85 – 264V AC
Output trim feature yes yes
Remote sense feature yes yes
Efficiency / Vin AC upto 90 % / 100V, 95 % / 200V upto 90 % / 100V, 95 %, / 200
Output power / Vin AC upto 504W / 100V, 756W / 200V upto 1008W / 100V, 1512W / 200V
