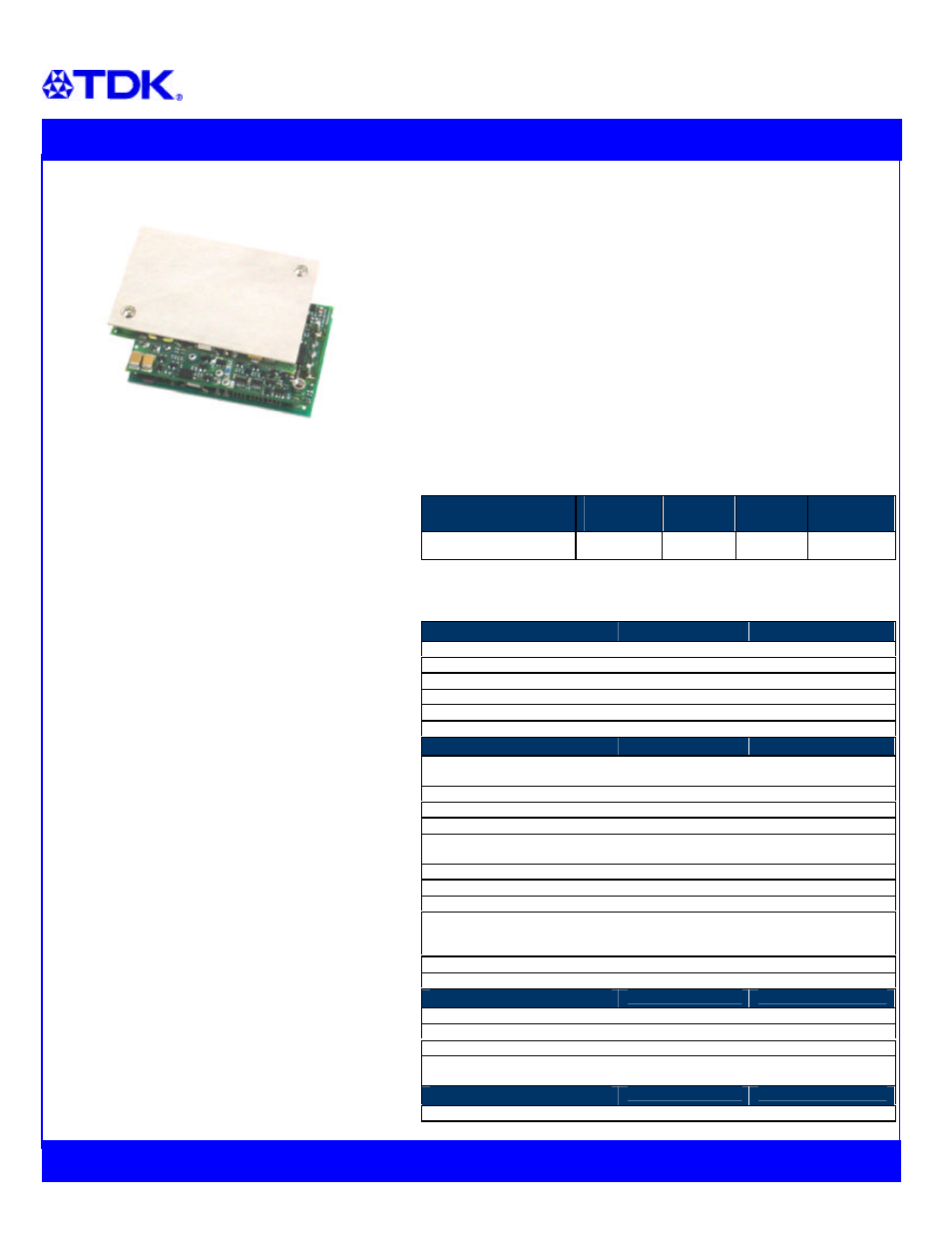

Advance Product Brief: Supereta™ Series – Single Output High Current Quarter Brick
©2004 TDK Innoveta Inc.
iQN 28V 7A Advance Product Brief 11/19/2004 ' (877) 498-0099
1/2
TDK Innoveta Base
Product Code
Input
Voltage
Output
Voltage
Output
Current
Efficiency
100%Load
iQN48007A280V 36-75V 28V 7A 92%
Input Characteristics
Operating input range 36-75V
Transient input voltage 100V 100mS max
Turn-on voltage 34.5V
Turn-off voltage 32.3V
Start-up time 50 mS On/Off to 90% Vout
Maximum input current 7A Input 0-75V, Io,max
Output Characteristics
Output Initial set-point accuracy +/- 1% Vin=Vin,nom, Io=0A,
Tc=operating range
Efficiency 92% Io,max
Line regulation 28 mV Over rated input
Droop Rate 0.125 V/ A Help to load share
Load regulation 28 mV* Over rated load
* Excluding the droop
Output voltage adjustment 60%-110% %Vo,nom
Output ripple 75 mVp-p 20MHz bandwidth
Output current range 0 to 7A With voltage droop
Dynamic response
Transient voltage
Recovery time
375 mV
0.85 mS
Load step 25% of
Io,max
slew rate =0.1A/us
Output Load Capacitance 5000 uF Min ESR > 3m
Ω
Ripple frequency 310 kHz Fixed
Protection
Output over-current Constant Current Voltage foldback
Short circuit Constant Current Continuous protection
Output over-voltage 120% of Vout,nom Latching
Thermal shutdown 120C Auto recovery with
hysteresis
Environmental
Operating temperature -40C to 115C See full datasheet
The Supereta™ iQN Series offers an industry standard quarter
brick high current power module with true useable output power.
Its 92% typical efficiency, a power density greater than 118W per
cubic inch, output voltage fold-back current limit feature, and
superior thermal performance make the iQN Series of power
modules ideally suited for wireless
applications to power various
RF amplifiers. This rugged building block is designed to serve as
the core of the high reliability system. The droop current sharing
capability allows multiple modules connected in parallel to be
possible. A wide output voltage trim range, -40 to +10%, remote
sensing, and remote ON/OFF control are standard features
enhancing versatility.
Features
•
Standard Quarter Brick Pinout
•
Size: 2.28”
Ч
1.45”
Ч
0.5”
•
Up to 7A of output current
•
Power density > 118W / in
3
•
Efficiency – up to 93.5%
•
Full load efficiency – 92%
•
Droop load share (0.125V/A)
•
Voltage foldback constant current limit
•
Wide output voltage trim range 17-30.8V
•
Insulated Metal Substrate (IMS) for high
usable power
•
Suitable for wireless RF applications
•
Basic insulation – 1500Vdc
•
Choice of remote on/off configuration
•
Remote sense
•
Constant switching frequency
•
Latched output over-voltage protection
•
Auto-recovery full protections:
o
Input under and over voltage
o Output over-current
o Output short circuit
o Thermal limit
•
UL 60950 (US and Canada), VDE 0805,
CB scheme (IEC950) Safety markings
and CE Mark (EN60950)
•
Optional 0.110”, 0.180”, 0.200” pin length
•
Optional Thru-Hole PEM Studs
•
Optional non-latching OVP protection
•
Optional Latched over-current protection
•
Optional Latched OTP
•
EMI: CISPR 22 A or B with external filter
•
Multiple patents
•
ISO9000 certified manufacturing facilities
Supereta™ iQN Series DC/DC Power Modules
48V Input, 28V Output, 200W Quarter Brick
Typical Performance
