TDK ZRCT-MF series - Manual

(1/2)
002-01 / 20080819 / e9123_zrct_mf.fm
• All specifications are subject to change without notice.
EMC Filters for AC Power Line
For Triple-phase, Large-size Box Cased(Square Wire Winding Type) ZRCT-MF Series
FEATURES
• The ZRCT-MF series employ a highly efficient thermal design,
which ensures high current handling capacity in a compact
package with superior EMC suppression characteristics.
• They are highly effective at preventing both the radiation and
penetration of EMC noise. The parts are, therefore, highly
immune to externally generated noise and do not, themselves,
serve as sources of radiated noise.
• For the CISPR frequency band, this product provides superior
attenuation for both differential mode and common mode noise
components.
• The withstand voltage between line and ground is AC.2500V.
• Single-direction block terminal design simplifies wiring require-
ments, thereby improving workflow.
• It is a product conforming to RoHS directive.
APPLICATIONS
Computers, general purpose inverters, UPE(uninterruptible power
equipment), computer control devices, NC control devices, etc.
Highly recommended for large equipment destined for CE coun-
tries, where compliance with EMC radiation standards is required
as part of CE marking certification.
SAFETY STANDARDS

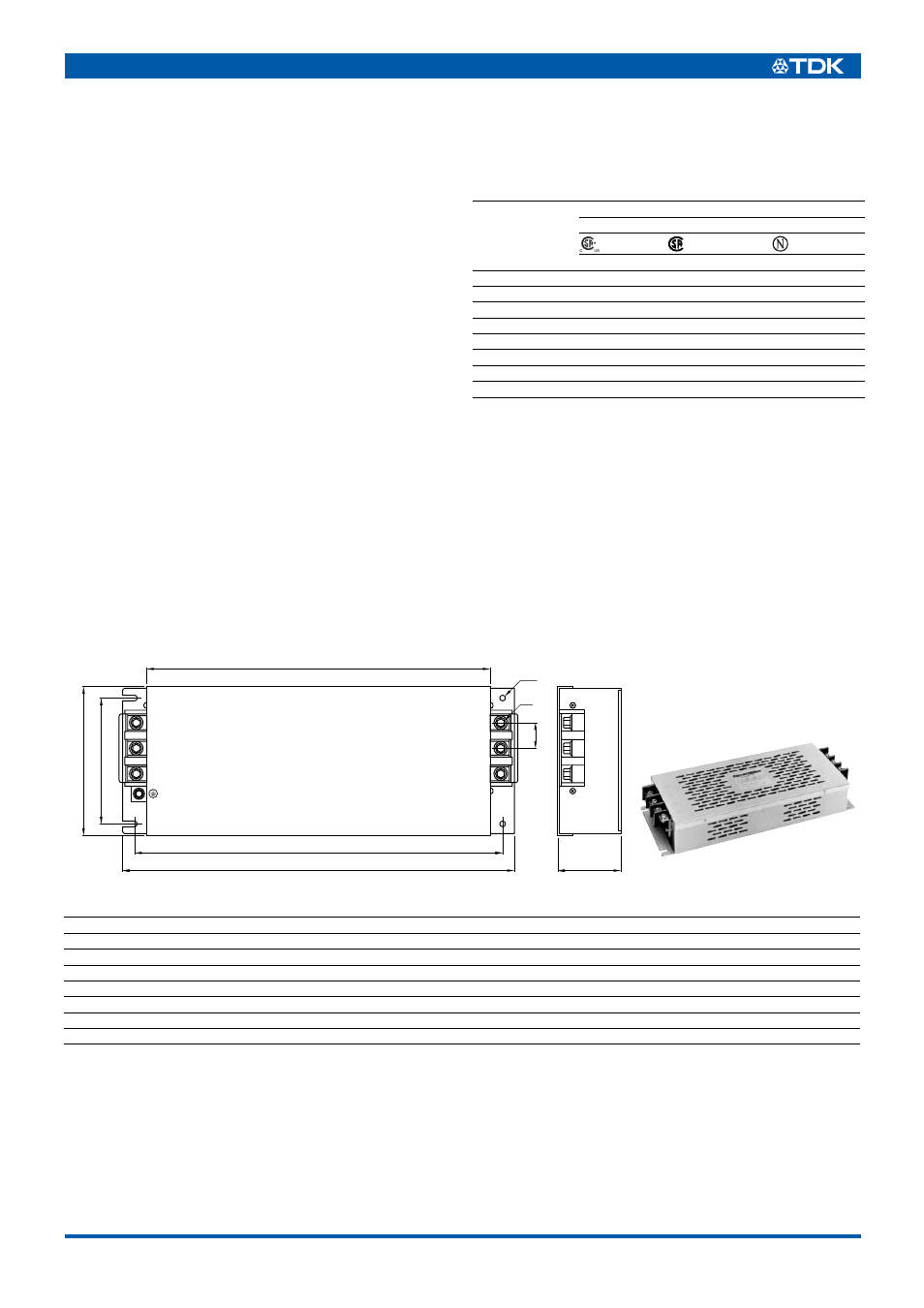

SHAPES AND DIMENSIONS
Dimensions in mm
• Case:metal, terminal cover:polycarbonate, terminal block:bolt with hexagonal hole, case and cover surface:long hole 4 × 20mm punching
Conformity to RoHS Directive
Part No.
Standard and standard No.
U.S.A.
Canada Europe
UL1283 CSA C22.2 No.8 EN60939
Rated voltage [250V] [250V] [500V]
ZRCT5050-MF 1062358 LR76849C P07208138
ZRCT5080-MF 1062358 LR76849C P07208138
ZRCT5100-MF 1062358 LR76849C P07208138
ZRCT5150-MF 1062358 LR76849C P07208138
ZRCT5200-MF 1062358 LR76849C P07208138
ZRCT5250-MF 1062358 LR76849C P07208138
ZRCT5300-MF 1062358 LR76849C P07208138
UL(NRTL) CSA NEMKO
Part No. A B C D E F G øH I
ZRCT5050-MF 164 344 68 396 135 369 M6 6.5 25.5
ZRCT5080-MF 169 391 72 445 141 418 M8 6.5 29
ZRCT5100-MF 170 425 79 477 135 450 M8 6.5 29
ZRCT5150-MF 190 465 87 517 160 490 M8 6.5 29
ZRCT5200-MF 197.5 499 107 605 152 590 M10 6.5 49
ZRCT5250-MF 197.5 499 107 605 152 590 M10 6.5 49
ZRCT5300-MF 197.5 499 107 605 152 590 M10 6.5 49
øH
G
F
D C
I
A E
B
1
2
3
4
5
6
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
