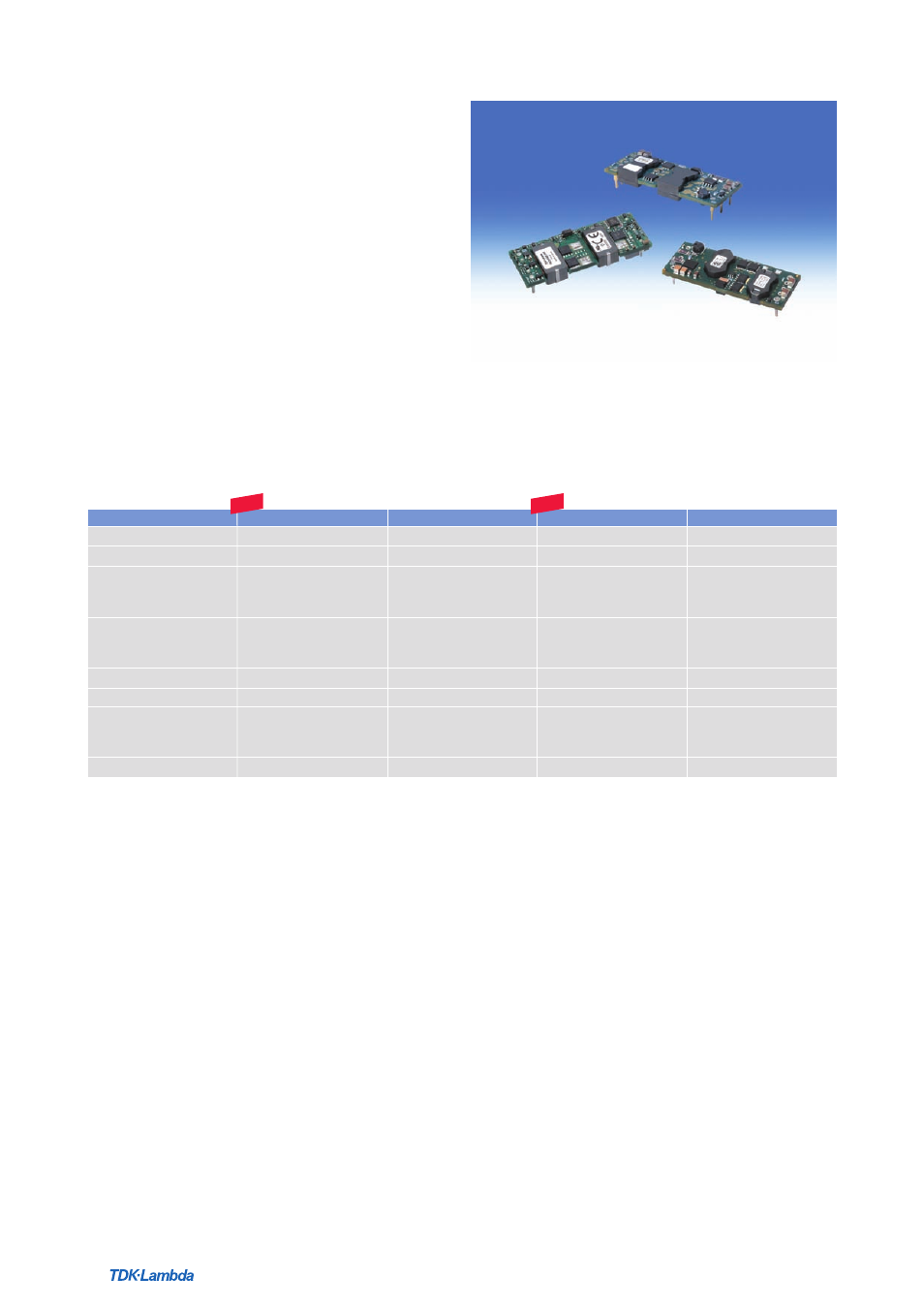

Eighth-Brick

TDK-Lambda’s hugely successful family of eighth brick
converters with the broadest range of output voltages
available has recently been augmented by the addition of
the new wide input voltage products, extending the scope
of applications to include ‘remotely powered’ RF devices
commonly found in latest LTE / GSM telecom equipment.

• 1500V basic isolation
• Low profile – contact cooling compatibility
• Good output voltage adjustment / trim range
• Remote sense
• Monotonic start – up
• Starts into pre – biased load
• Constant switching frequency
• Pin length choice, SMT options
• Positive or negative on / off logic option

Series

iEE / iEE4W

Warranty

3 years

3 years 3 years 2 years

Format, DOSA

open frame

Industry standard 1/8B brick, thru hole 1/8 B brick, SMT

1/8B brick, thru hole 1/8B brick, thru hole

Baseplate

no no

Output voltage

3.3, 5 and 12V

3.3, 5 and 12 V 1.2, 1.5, 1.8, 2.5, 3.3, 1.8, 2.5, 3.3, 5 and 6V

5, 12, 15, 18 and 28V

12V (iEE4W)

12V (iEA4W)

Input voltage range 36 – 75V 36 – 75V 36 – 75V

36 – 75V

18 – 36

30 – 60V (iEE4W)

18 – 60V (iEA4W)

Output trim feature yes yes

yes

Remote sense feature yes yes yes

yes

Efficiency upto 92 % upto 92 %

upto 91 %

Output current / power upto 15A / 66W

upto 15 A / 66 W

upto 25A / 78W upto 30A / 100W

iEF

iEA / iEA4W

PAE

NEW
