11-3
EO1-33017
11. GENERAL MAINTENANCE
11.2 UNDER THE MEDIA GUIDES
1.
Remove the Media Guides.
2.
Remove the jammed Media.
3.
Clean “dust and glue” on the Media Guides with a soft cloth moistened with alcohol.
4.
Remount the Media guides using the screws.
NOTE: Be careful NOT TO LOSE the screw.
11.3 COVERS AND PANELS
The covers should be cleaned by wiping with a dry cloth or a cloth slightly dampened with a mild detergent
solution.
NOTE:
Clean printer cover with an electrostatic free cleaner for automated office equipment.
Screw
Media Guide
Screw
Media Guide

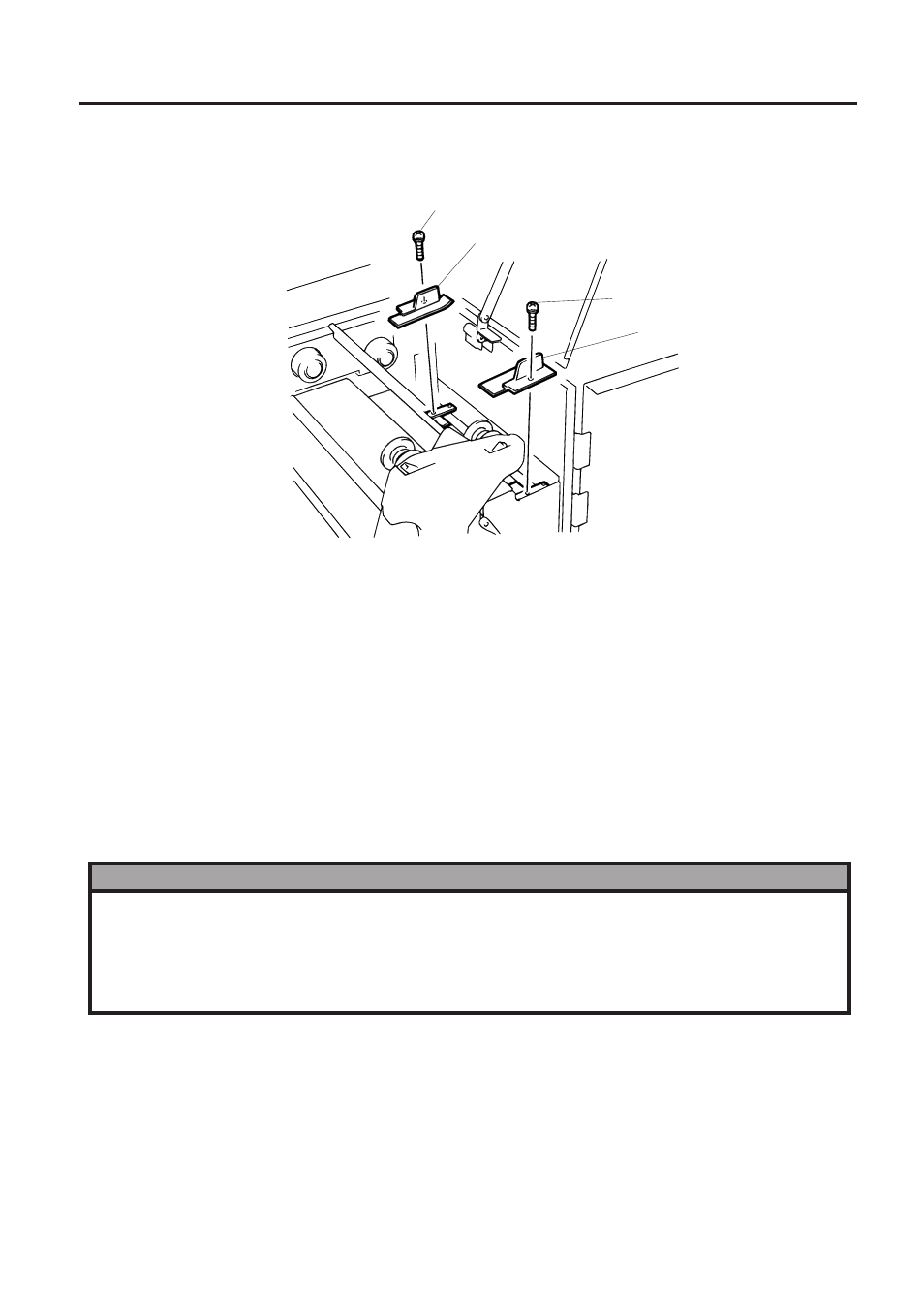

Fig. 11-4
WARNING!
1. DO NOT POUR WATER directly onto the printer.
2. DO NOT APPLY cleaner or detergent directly onto any cover or panel.
3. NEVER USE THINNER OR OTHER VOLATILE SOLVENT on the plastic covers.
4. DO NOT clean the panel covers or the supply window with alcohol as it may cause them to
discolor, loose their shape or develop structural weakness.
