Connecting a home network

Example #1: Networking via DSL modem service

You will need:

three telephone cables
three RJ-45 cables
one telephone cable splitter
one RJ-45 router
one DSL modem

Networking the TV with your home Internet e-mail service to enable remote
scheduling of recordings and reminders

You can network the TV with your home Internet service to remotely schedule recordings and reminders by sending an e-mail to the
TV.
To use this feature, you must have Internet e-mail service in your home and two separate e-mail addresses (your personal e-mail
address and a second e-mail address for use solely by the TV). Contact your ISP (Internet Service Provider) for these services.

Note:

• This feature is only for remotely scheduling recordings and reminders. You will not be able to access the Internet through the TV.

• To configure your TV for remote scheduling, see Chapter 11

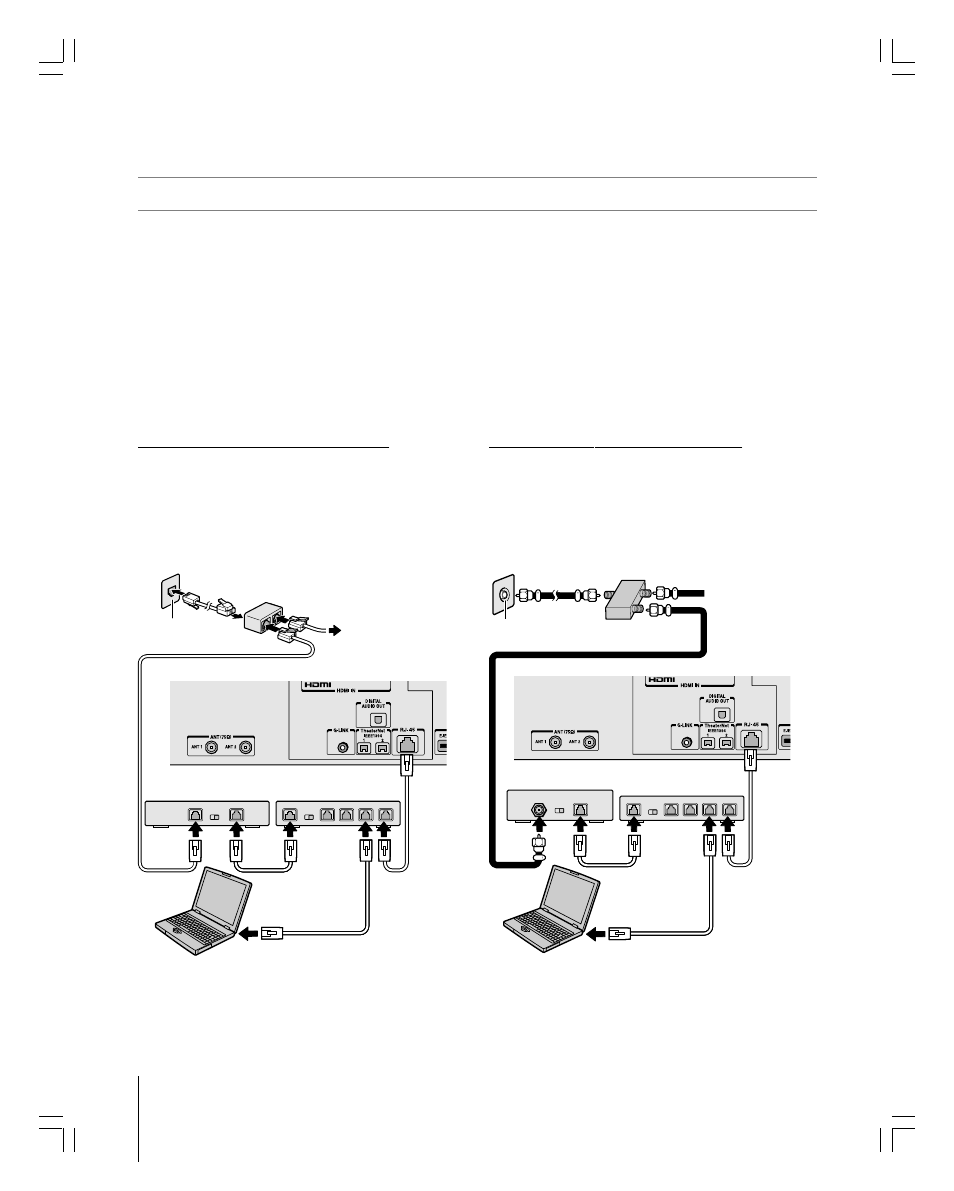

[1] Telephone cable

[2] RJ-45 cable

[3] Coaxial cable

To TV (ANT IN or via
Cable Box or VCR)

PC

Cable modem

Router

Coaxial cable jack

[2]

[2]

[2]

[3]

[3]

TV

Telephone cable splitter

To telephone

Phone jack

DSL modem

Router

PC

[1]

[1]

[1]

[2]

[2]

[2]

Example #2: Networking via cable modem service

You will need:

three coaxial cables
three RJ-45 cables
one coaxial cable splitter
one RJ-45 router
one cable modem

Coaxial cable splitter

[3]
