DynaView Interface
CG-SVU02B-E4 8
Main Screens
The Main screen shall be the default
screen. After an idle time of
30 minutes the CH530 shall display
the Main screen with the first data
fields. The remaining items (listed in
the following table) will be viewed
by selecting the up/down arrow
icons.

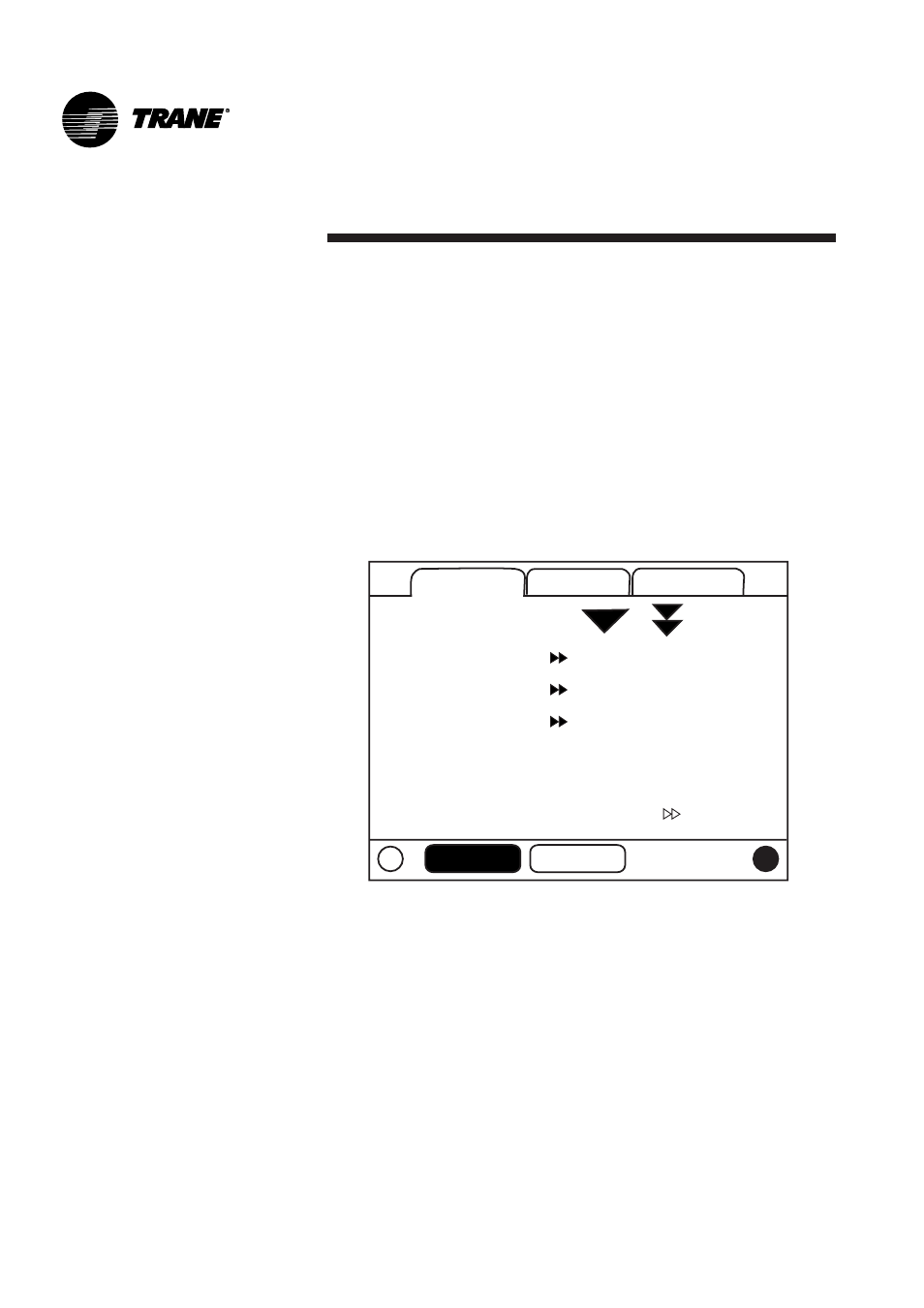

Figure 3 - Main screen
Main Main Reports Reports Settings Settings
Auto Auto Stop Stop
Chiller Mode:
Circuit 1 Mode:
Circuit 2 Mode:
Evap Ent / Lvg Water Temp:
Cond Ent / Lvg Water Temp:
Active Chilled Water Setpoint:
Running
Running - Limit
Auto
12 / 7 C
30 / 35 C
7 C
