DynaView Interface
CG-SVU02B-E4 18
Settings Screen
The Settings screen provides a user
the ability to adjust settings justified
to support daily tasks. The layout
provides a list of sub-menus,
organized by typical subsystem.
This organization allows each
subscreen to be shorter in length
which should improve the users
navigation.

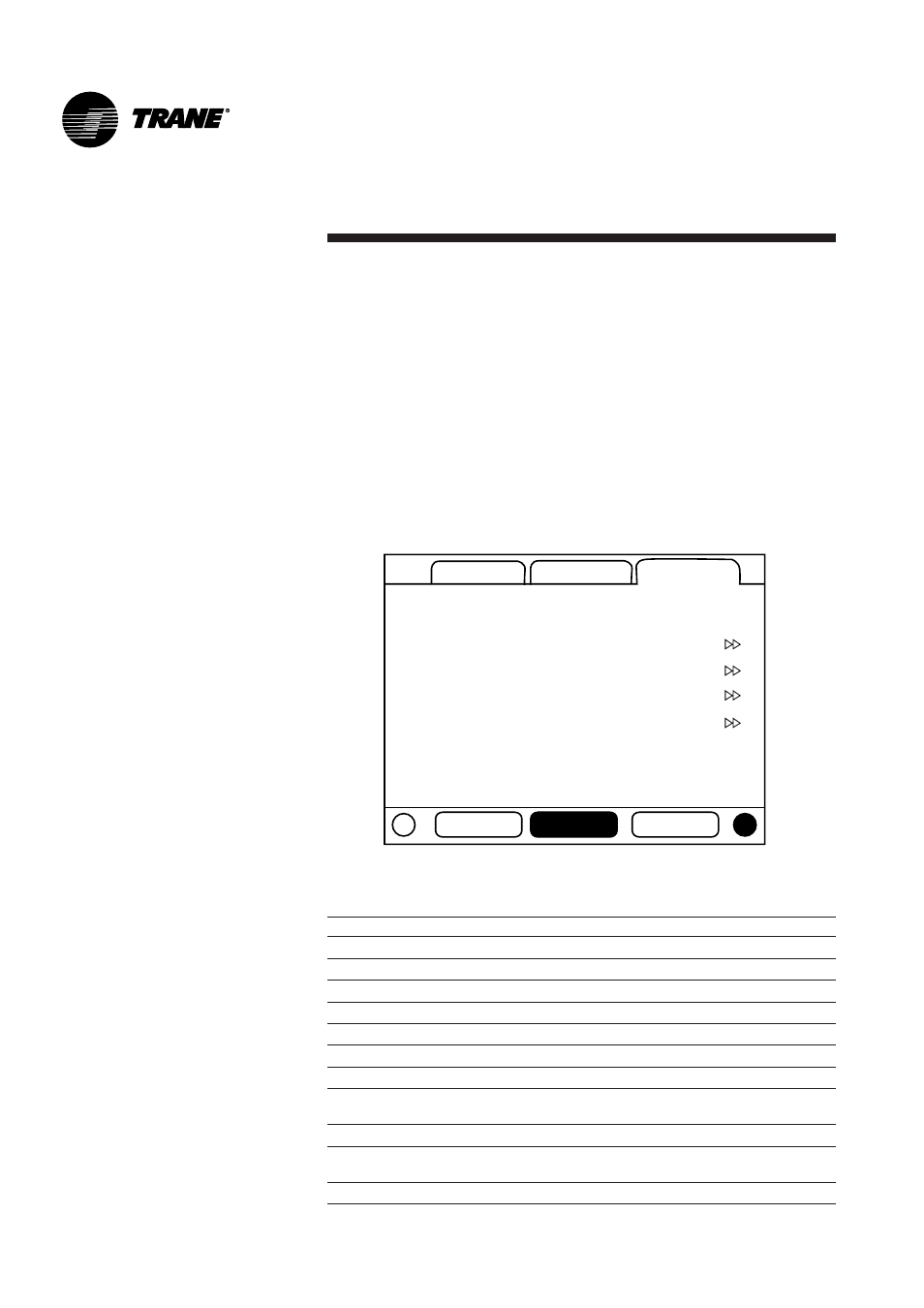

Figure 7 - Settings screen
Table 4 - Settings screen
Description Units Resolution, Default
Chiller
Front Panel Chilled Water Setpt Temperature + or - XXX.X
Low Refrigerant Temp Cutout Temperature + or - XXX.X
Front Panel Demand Limit Percent X
Front Panel Ice Build Cmd Text On/Auto
Front Panel Ice Termn Setpt Temperature XXX.X
Design Delta Temp Temperature XXX.X
Setpoint Source Text (BAS/Ext/FP, Ext/ Front Panel,
Front Panel), BAS/Ext/FP
Leaving Water Temp Cutout Temperature XX.X
Circuit Staging Option Text Bal Starts/Hrs, Circuit 1 Lead,
Circuit 2 Lead), Bal Starts/Hrs
Compressor Staging Option Text (Fixed, Bal Starts/Hrs), Fixed
Main Reports Settings
Auto Stop Alarms
Chiller
Feature Settings
Mode Overrides
Display Settings
