ASSEMBLY
Assembly Section 2-23
TRAVEL LOCK INSTALLATION
Your side flail bonnet(s) may have come without the travel lock hook welded on. This
is done after assembly to ensure a proper fit to your equipment. Follow the following
steps to attach the travel lock. Make sure to wear the proper personal protection
equipment.

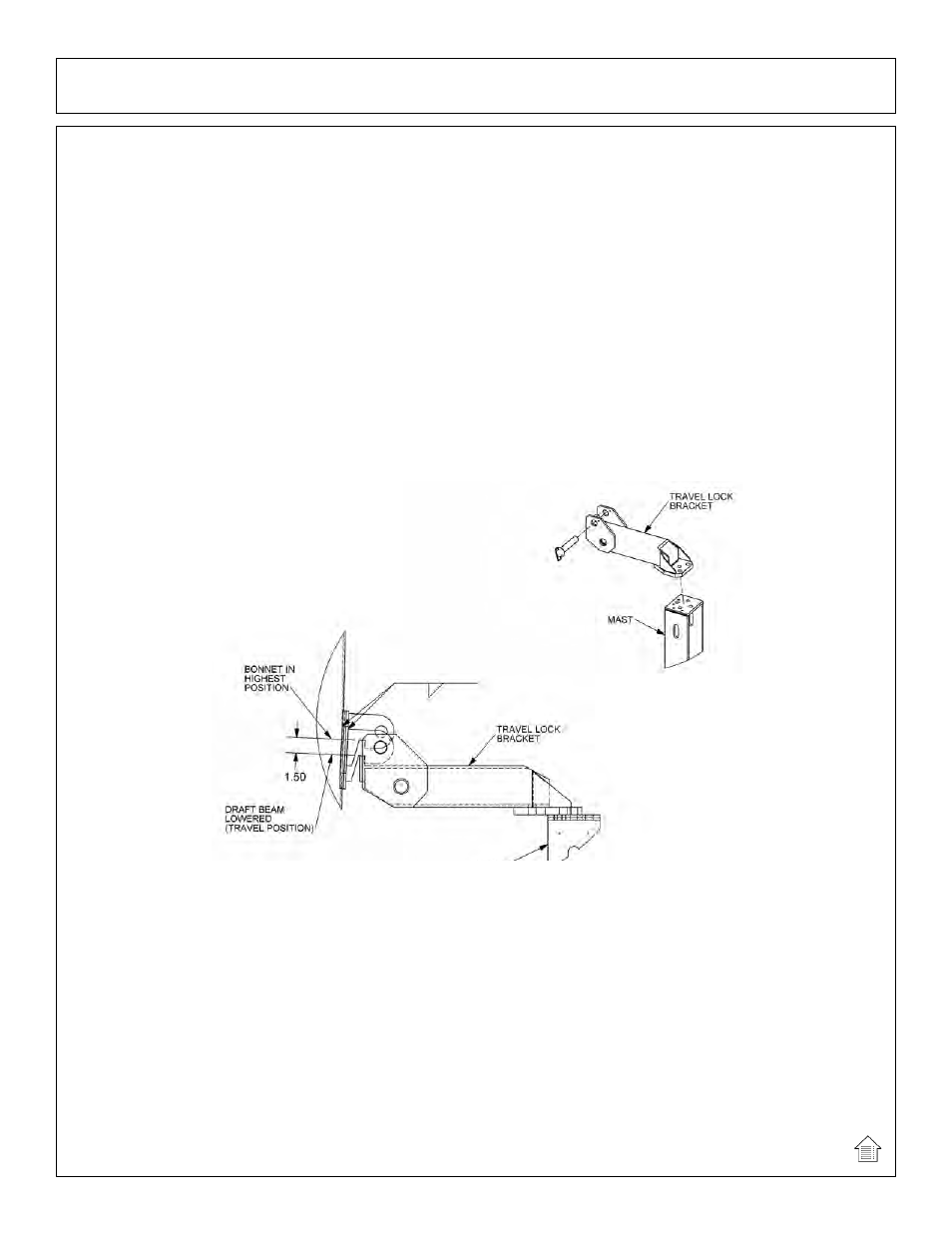

1. Mount the left and/or right travel lock brackets loosely to each side of the mast frame.
Refer to the Parts Section in this manual for part information.
2. Raise flail bonnets up to their highest position.
3. Lower draft beam cylinders 1-1/2 inches for travel lock hook clearance.
4. Mount the hook to the travel lock bracket with travel lock pin in place.
5. Line up the travel lock plate so that it is centered with the travel lock hook on each
side.
6. Weld the plates to the bonnets.
7. Weld the hooks to the plates.
(ASM-T3F-0025)
