ASSEMBLY
Assembly Section 2-22

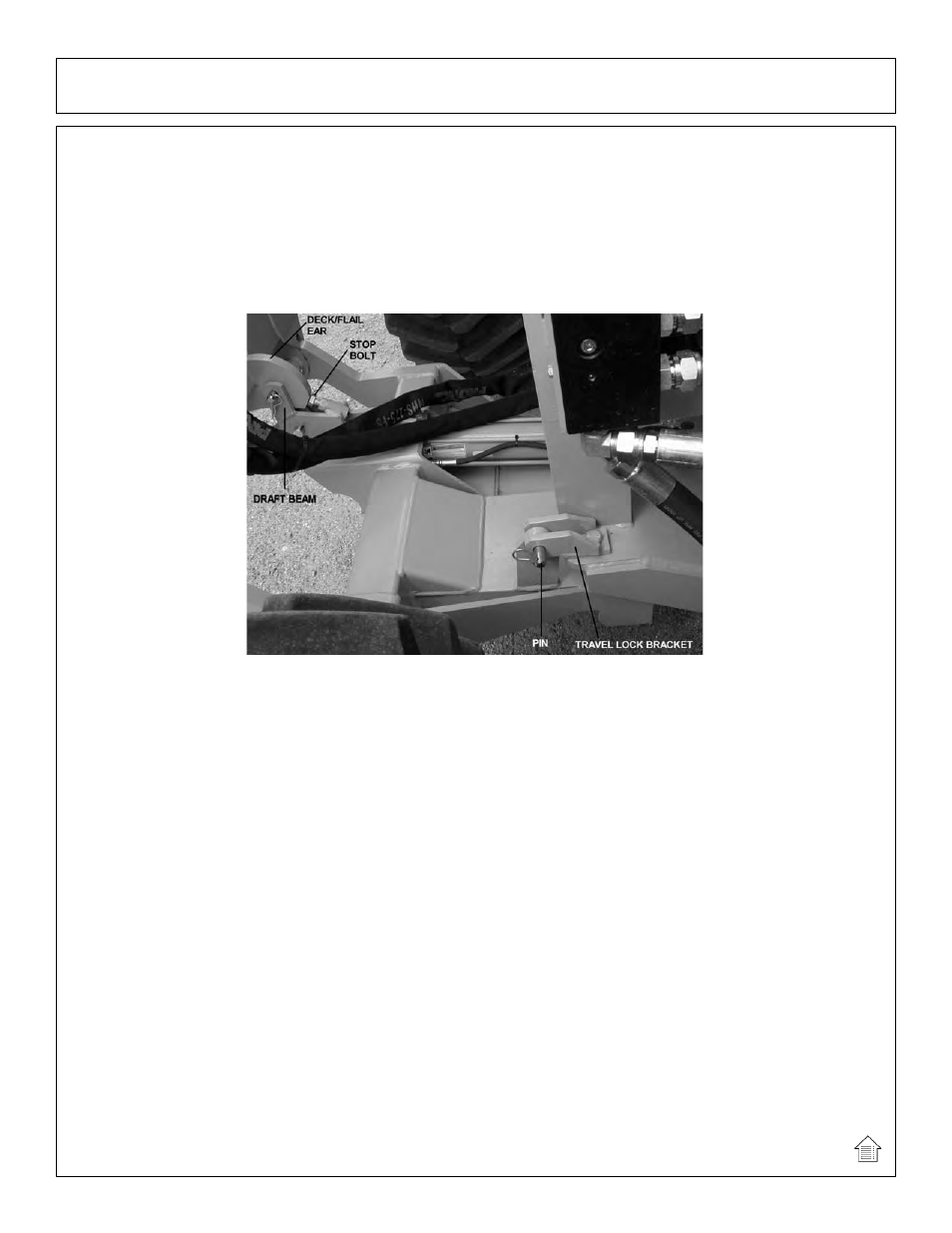

TRAVEL LOCK MOUNTING
Install the travel lock bracket with pin and clip on the draft beam. Slide the draft beam and
align the travel lock bracket hole with the mounting hole on the main frame. Install the capscrew,
lockwasher and hex nut as shown in the picture.
Raise the deck/flail to it’s upright position (Deck ear touches to stop bolt as shown in the
picture). Drill a 13/16” hole to the deck/flail ear through the draft beam as shown below. Insert the
supplied pin and clip through the hole.
(ASM-SIDE TRVL LOCK-0001)
