3in x 12in hydraulic cylinder breakdown – Tiger Mowers SIDE FLAIL ASEMBLIES JD 5085M-105M User Manual
Page 153

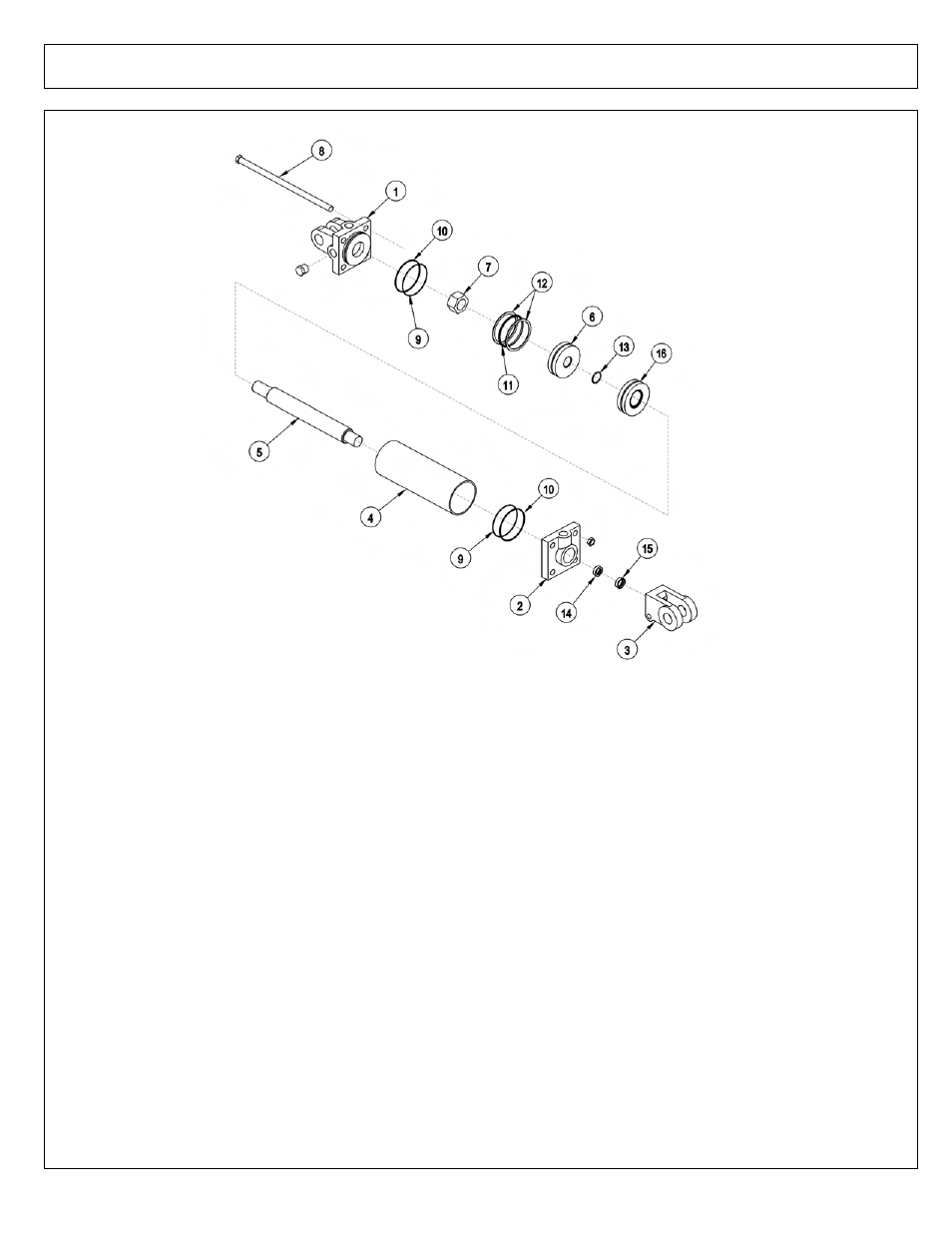

3IN X 12IN HYDRAULIC CYLINDER BREAKDOWN
ITEM
PART NO. QTY.
DESCRIPTION
------
32215
-
HYD. CYLINDER 3" X 12"
1
6T0167
1
CYLINDER BUTT
2
6T0170
1
CYLINDER GLAND
3
6T0178
1
CLEVIS END
4
6T0204
1
CYLINDER TUBE
5
6T0203
1
PISTON ROD
6
6T0173
1
PISTON
7
6T0179
1
LOCKNUT
8
6T0205
4
TIE ROD ASY
------
6T0187
-
SEAL KIT
9
------
2
O - RING
10
------
2
BACK - UP WASHER
11
------
1
O - RING
12
------
2
BACK - UP WASHER
13
------
1
O - RING
14
------
1
U - CUP
15
------
1
WIPER
©2012 Alamo Group Inc.
Parts Section 6-17
COMMON SIDE FLAIL - SD
