ASSEMBLY
Assembly Section 2-14

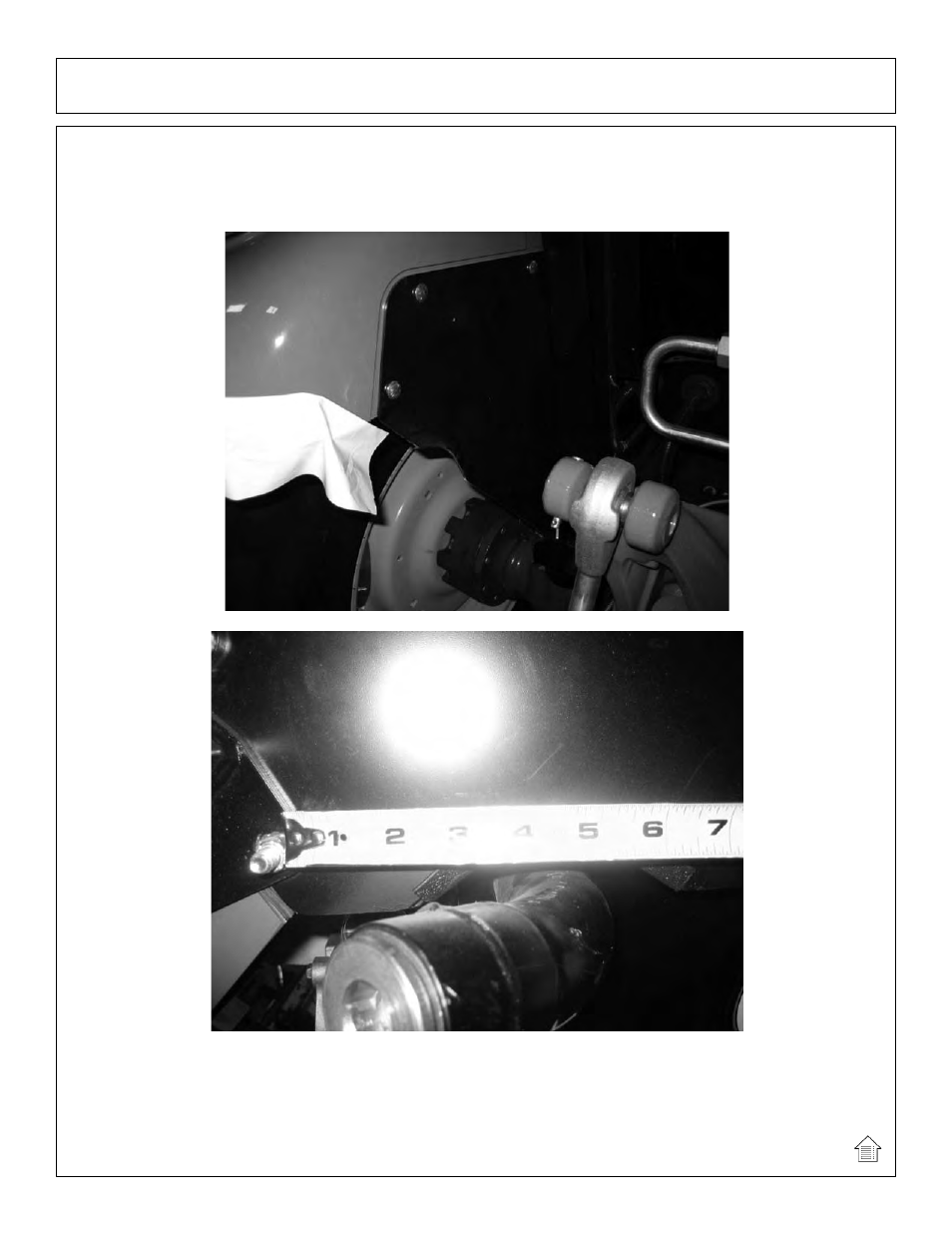

FENDER CUT FOR WHEEL WELL TANK
A notch will have to be cut into the left rear fender to allow room for the hydraulic tank filler
neck. The notch should start at 2 inches from the rear corner of the fender and create a 1 inch
deep arc that is 5 inches long. Trim lock should be used on the sharp edges..
(ASM-JD-0092)
