MIX 56 User Manual 3 User Functions
122188-10 A0 Telect, Inc. 3-3
To Patch with Two Single Patch Cords
Step Action
1. Insert a single patch cord into
the IN jack of the first jack.
2. Insert the other end into the
OUT jack of the second jack.
3. Insert another single patch
cord into the OUT jack of the
first jack.
4. Insert the other end of the
patch cord into the IN jack of
the second jack.
To Patch with a Dual Patch Cord
Step Action
1. Insert a dual patch cord into
the IN and OUT ports of the
first jack module.
2. Rotate the plug on the other
end of the cord 180 degrees
(so that it is turned upside
down from the first end) and
insert it into the IN and OUT
ports of the second jack
module.
Monitoring Signals
You can perform nonintrusive signal monitoring by connecting your circuit
monitoring device to the front monitor jack (labeled M) of the signal you
wish to monitor.

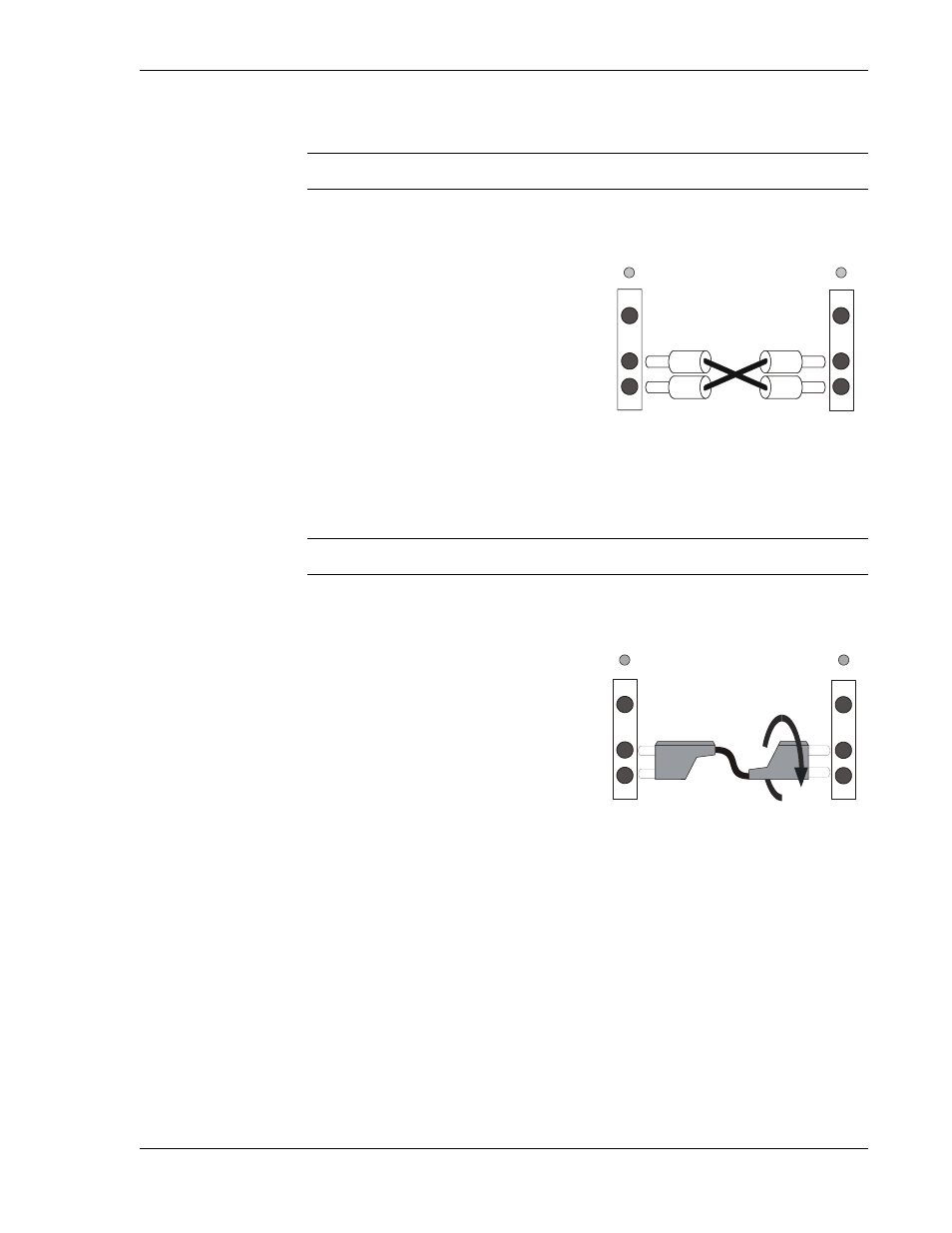

CROSS-CONNECT WITH
TWO SINGLE PATCH CORDS
First
jack
module
Second
jack
module
M
O
I
M
O
I
First
Jack
Module
M
O
I
M
O
I
Second
Jack
Module
CROSS-CONNECT
WITH DUAL PATCH CORD
