Cross-connecting circuits, Alert – Telect MIX 56 User Manual
Page 34
2 Installation
MIX 56 User Manual
2-12
Telect, Inc. 122188-10 A0

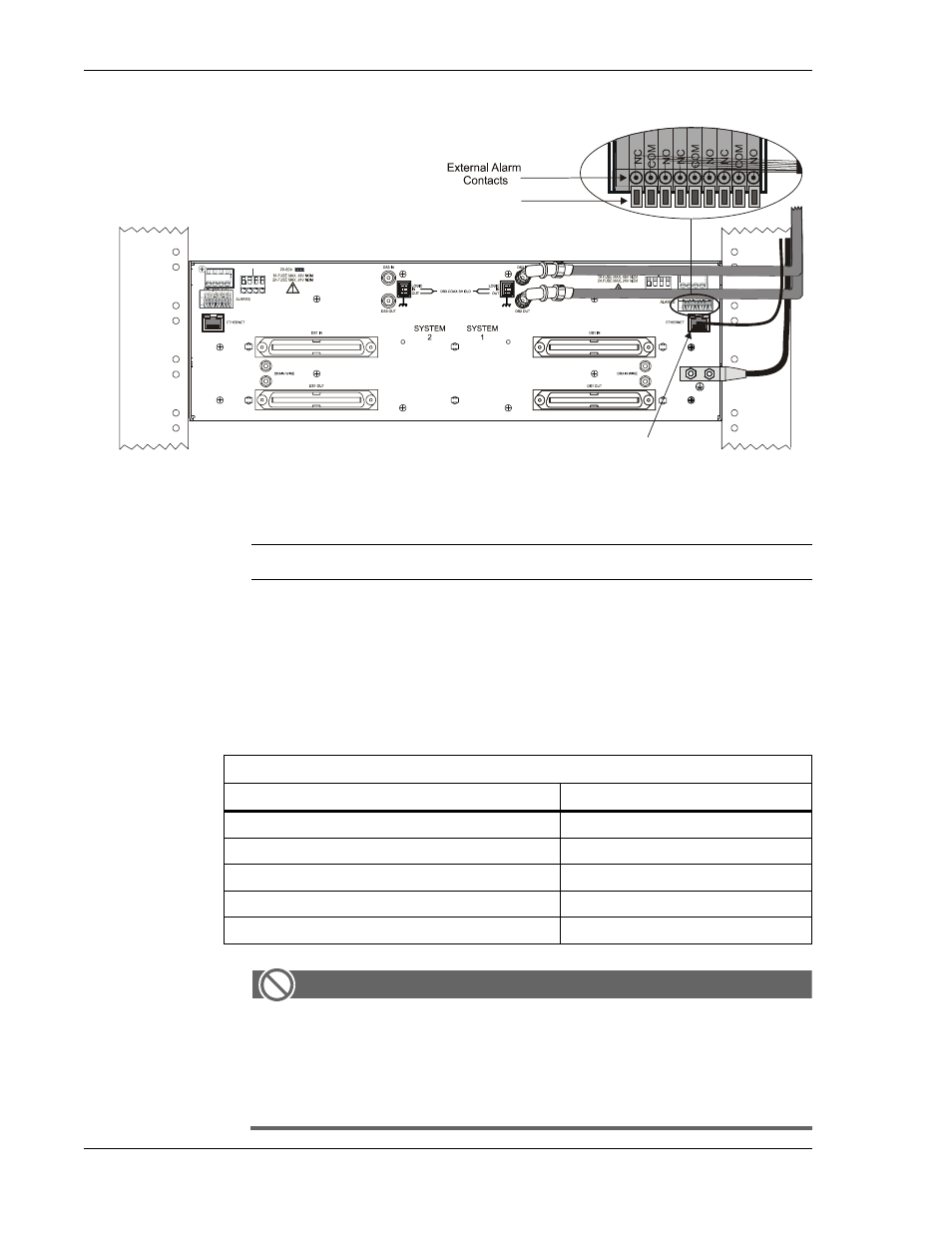

Cross-Connecting Circuits
Step
Action
1.
Connect T and R (OUT) of first jack to T and R (IN) of second jack.
2.
Connect T and R (IN) of first jack to T and R (OUT) of second jack.
3.
Connect TL to TL (tracer lamps).
4.
Record the cross-connect on the supplied designation strip.
ALERT
ALERT! DO NOT connect the tracer lamp (TL) signal between
systems that operate on different supply voltages, such as be-
tween a +24Vdc system and a -48Vdc system. Industry
standard tracer lamp circuits are designed to operate with a
single system-wide voltage.
Wire-Wrap Cross-Connect Color Scheme
Connect from 1st termination/wire color...
...To 2nd termination/wire color
TL / Green
TL / Green
T (Out) / Blue
T (Out) / Orange
R (Out) / Blue-White
R (Out) / Orange-White
T (In) / Orange
T (In) / Blue
R (In) / Orange-White
R (In) / Blue-White
+B
–B
+A
–A
+B
–B
+A
–A
RJ-45 Ethernet Cable
Spring Clip
