MIX 56 User Manual
2 Installation
122188-10 A0
Telect, Inc.
2-17
3.

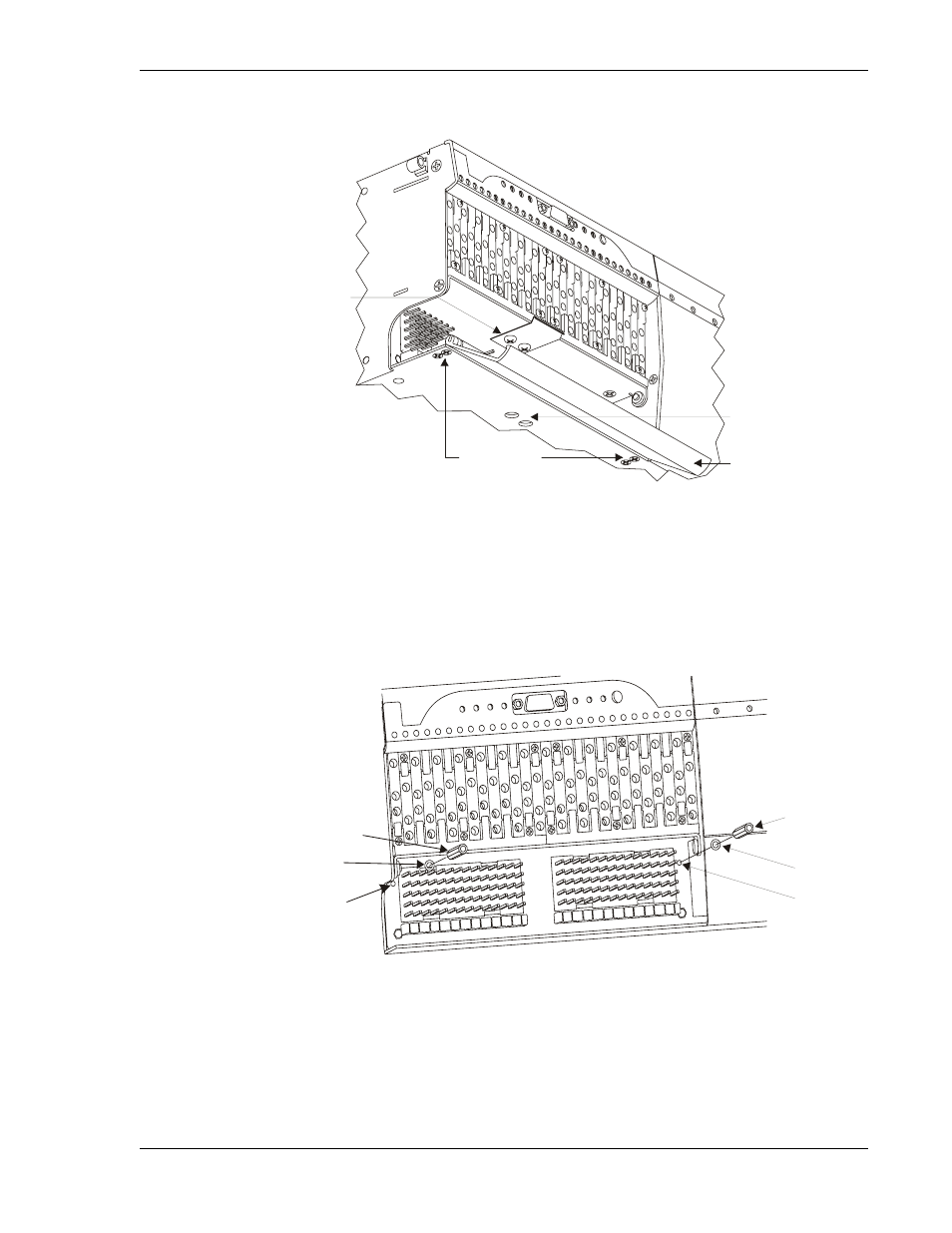

Insert a mounting post through a washer and into a mounting post
hole on either side of the pin blocks, as shown below.
4.
Using a 3/16 nut driver or a wrench, tighten the mounting post until
it is securely attached to the chassis.
5.
Repeat Steps 3 and 4 on the other side of the pin blocks.
6.
Gently place the holes on the back of the RJ Connector Retrofit
over the wire-wrap pins and carefully push the unit into place, as
Hinge Screws
Retainer
Clip Screws
Retainer
Clip Screw
Access Holes
Door
Mounting Post
Washer
Mounting
Post Hole
Mounting Post
Washer
Mounting
Post Hole
