2 Installation MIX 56 User Manual
2-16 Telect, Inc. 122188-10 A0

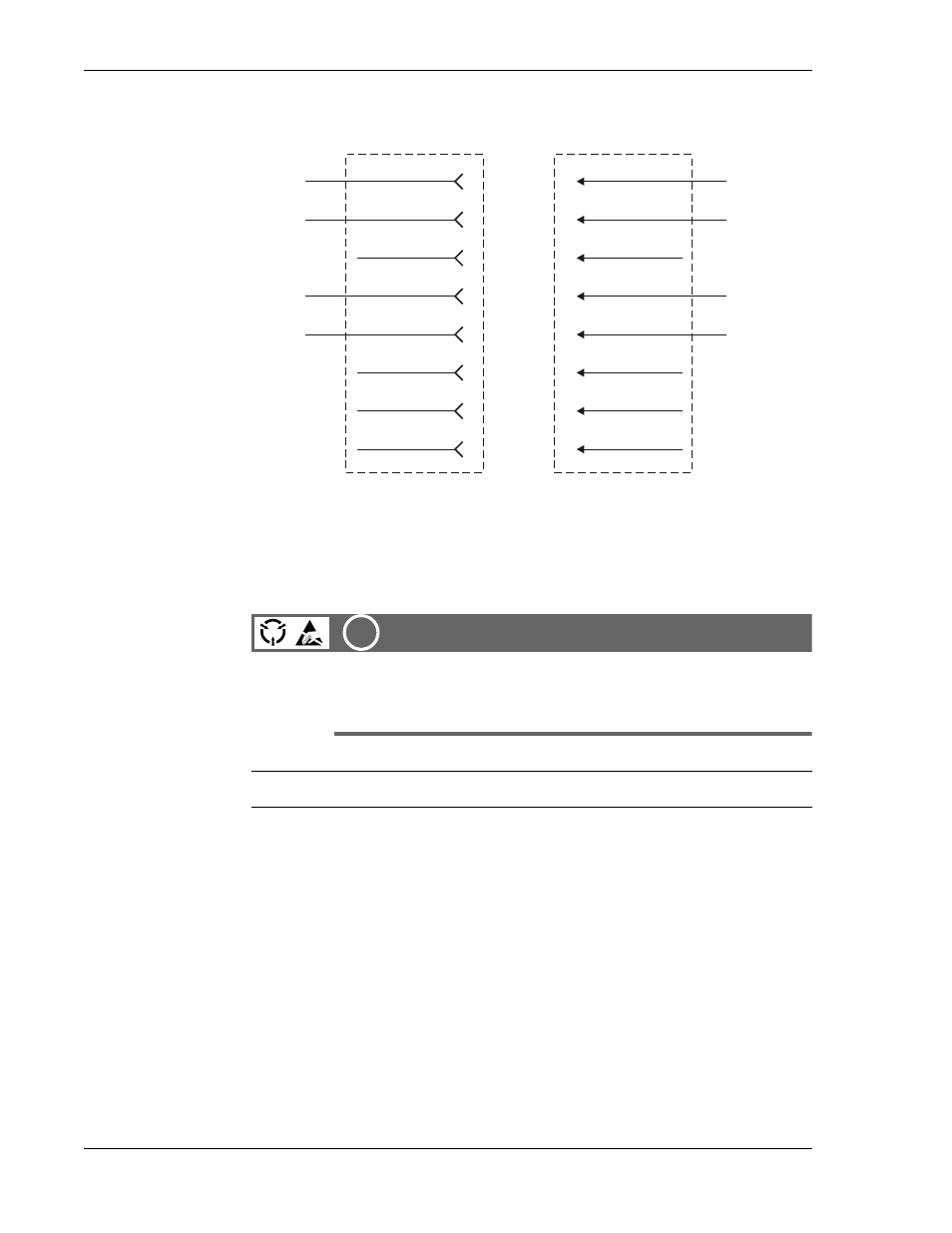

Schematic
Installation Procedure
ALERT !
ALERT! To avoid electrostatic discharge, always
wear a grounding strap plugged into the ESD jack
when handling any MIX 56 components.
Step Action
1. Uninstall the wire-wrap door by removing the four hinge screws
shown below from the underside of the chassis.
2. Uninstall the door’s retainer clip by removing the two screws
shown in the illustration on the next page.
NOTE
If necessary, insert the screwdriver through the access holes from beneath
the chassis to remove the retainer clip screws.
OUT
IN
R R1
R1 R
T T1
T1 T
Receive
Transmit
Jack to Network
Signal out
of MIX 56
Signal into
MIX 56
Plug from
Customer Installation
1
2
3
4
5
6
7
8
