11 MS-SVN015-EN
ECONO ECONO
ON
FAN
COOL
DRY
HEAT
AUTO OFF POWERCOOL
SW Z Z
MODE
LOUVER
SWEEP
FRONT BLADE
LIGHT
OFF
ON POWER
COOL
ECONO
SLEEP
SEND
Locate and attach the
wireless remote control
and wired control as
follows:
1. Do not place the control and
the remote control near heat
sources or expose to the
direct rays of the sun.
2. Do not expose the control to
the indoor unit’s supply air
stream.
3. Do not place in a confined
space.
4. Attach the remote control
holder as shown in Figure 25,
26.

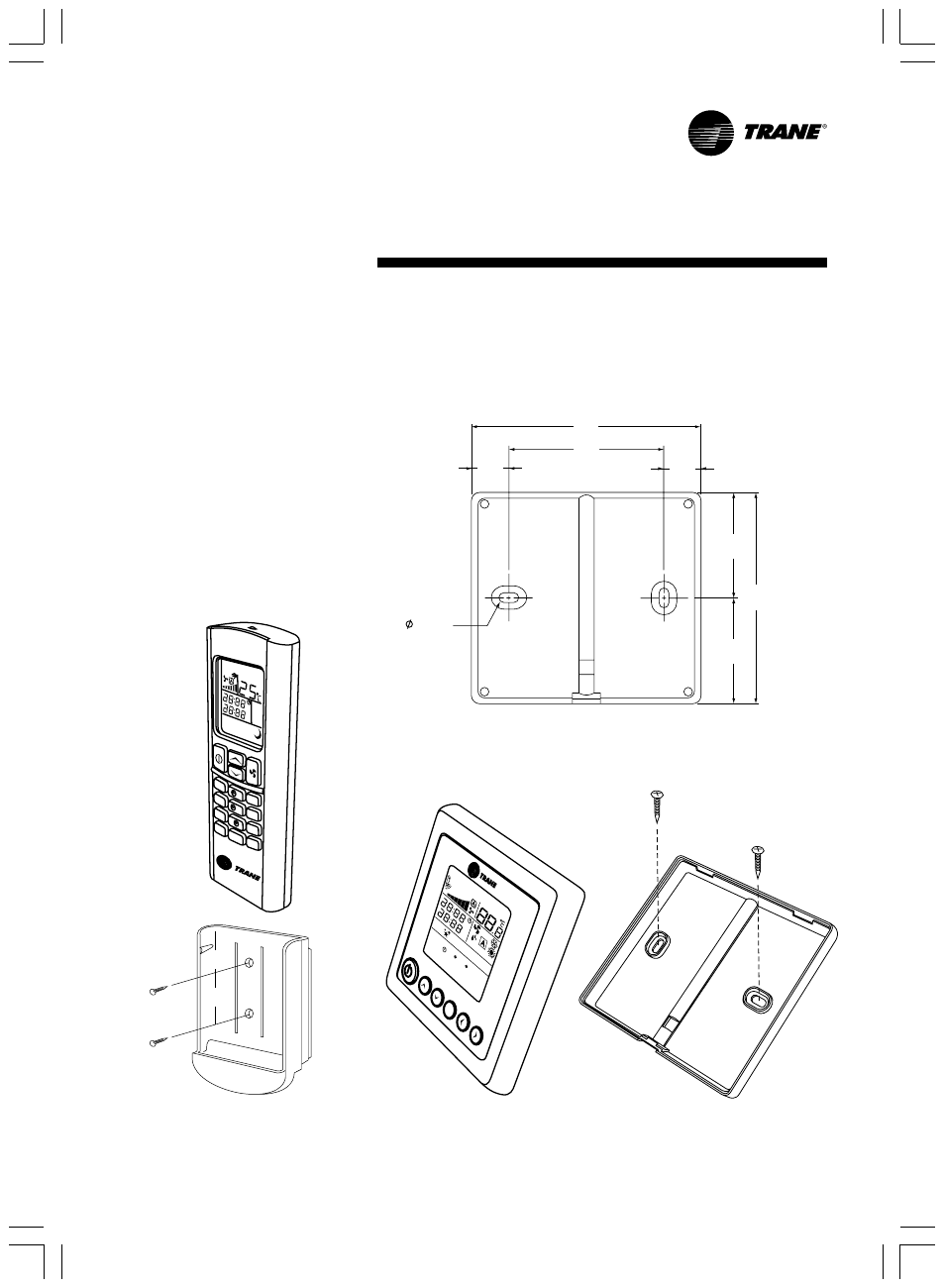

Remote Control Installation
Dimension
Wireless Remote Control Remote Control Mounting Bracket
Figure 25 Figure 26
TEMP
MENU
MODE
FA N
ON
ON
OFF
OFF
ECONO SW SLEEP ECONO
TURBO
TURBO
AU TO
14.5
4.0 X 2
SLOT
14.5
45.0
90.0
45.0
90.0
61.0
