H A R D WA R E
I N S TA L L AT I O N •
L E A D S A N D C O N N E C T I O N S

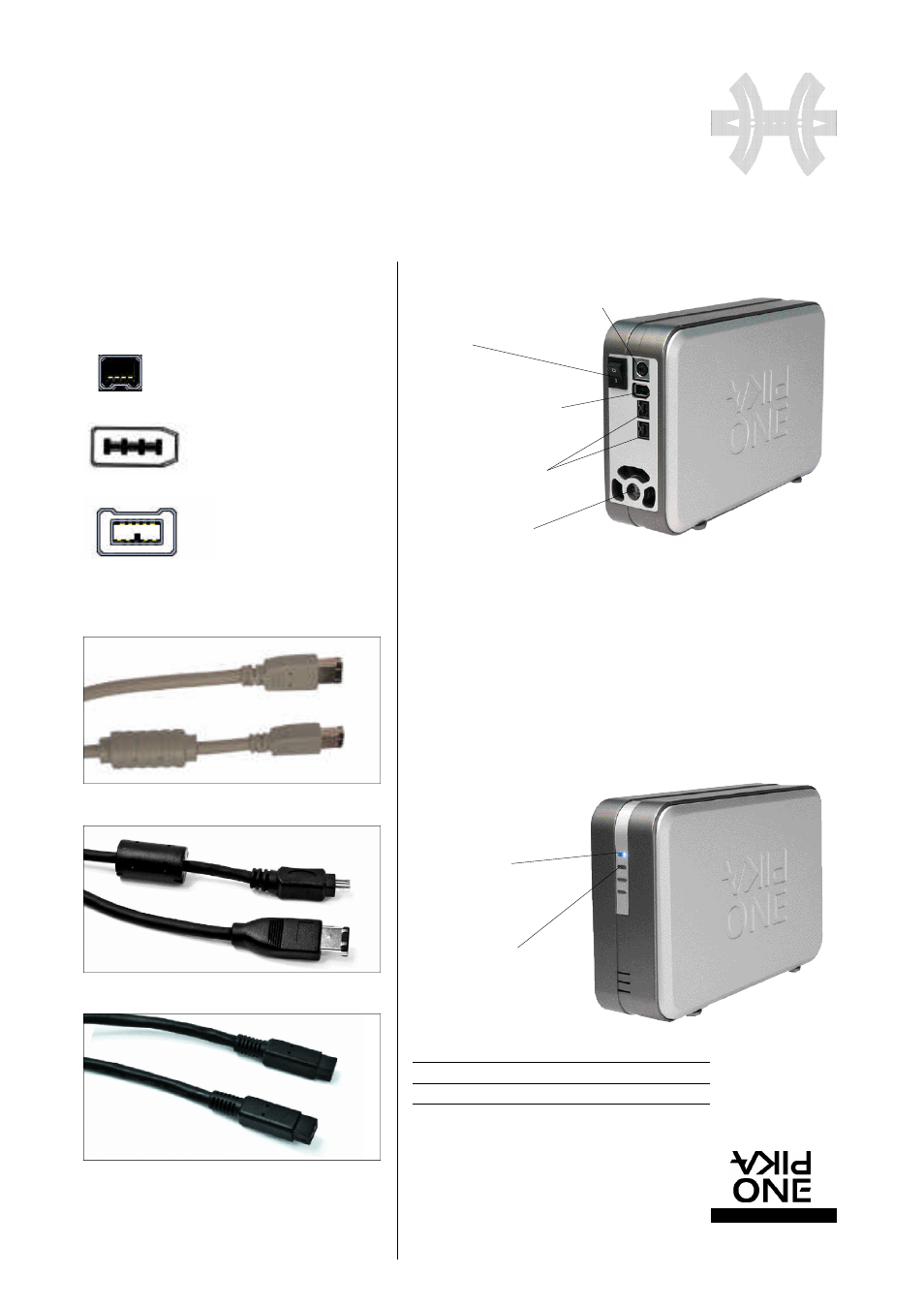

DIFFERENT FIREWIRE CONNECTORS
EXISTING IN THE MARKET
iLink/DV connector (4 points)
Firewire iEEE 1394 connector (6 points
FireWire 800 connector (9 points)
D IFFERENT CABLES SUPPLIED WITH YOUR FLYCASE PRO
FireWire cable (6 to 6 pin)
iLink cable (6 to 4 pin)
FireWire 800 to 800 cable (9 to 9 pin).
Power Supply connector
On/Off Switch
Firewire iEEE 1394 connector (6 points)
FireWire 800 connectors (9 points)
Fan
REAR VIEW OF THE FLYCASE PRO
At the back of your FlyCASE PRO, you will find 1*Fire w i re iEEE
1394 connector (6 points) and 2*Fire Wi re 800 connectors
(9 points)
•
L E D A N D O P E R AT I N G L I G H T S
O PERATING LIGHTS LED
LED Description
Disk access Flashing red light indicates access to disk
Power On/Off Continuous blue light indicates power is On
On/Off LED
Disk access LED
