Getting Started
EN
5

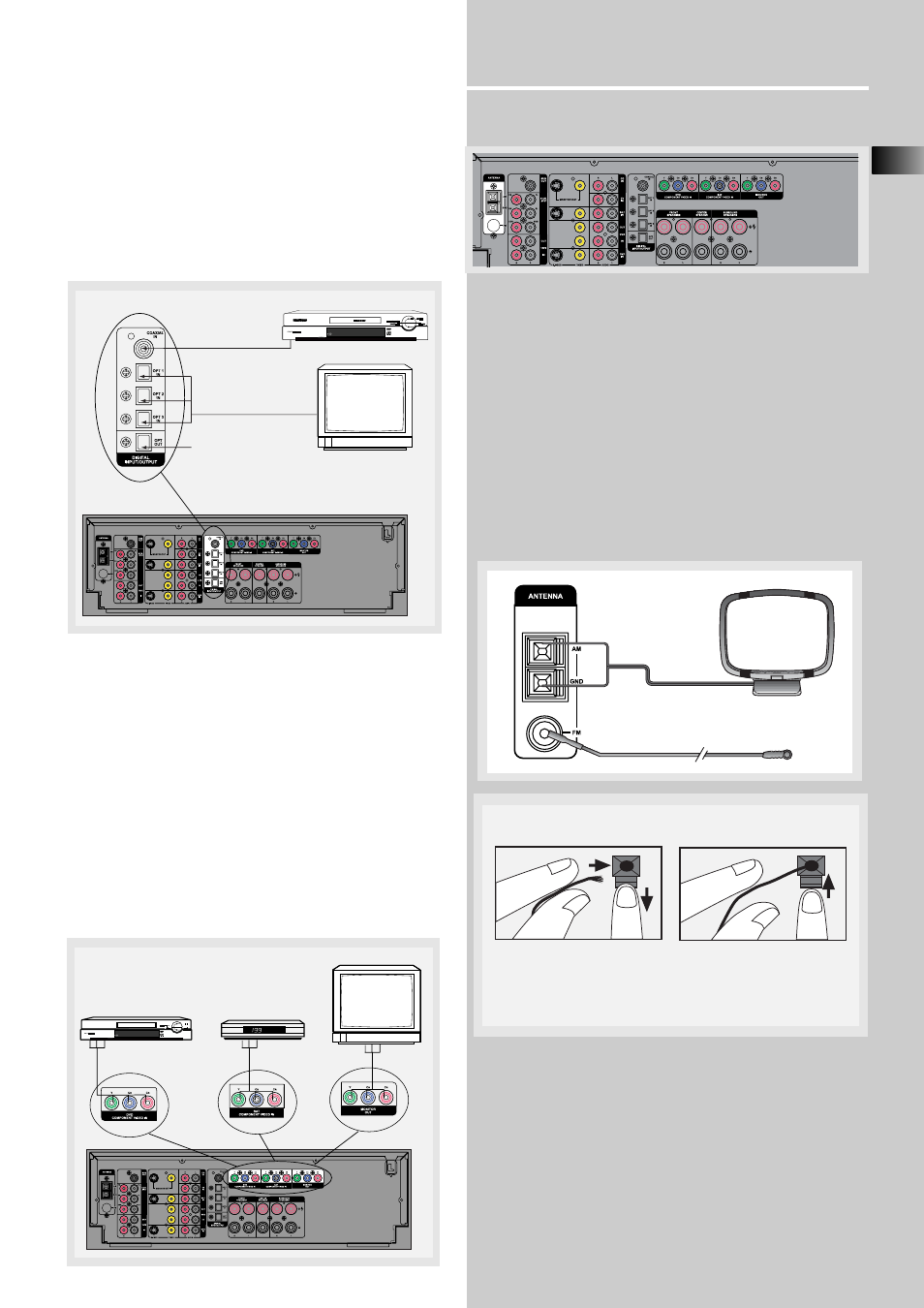

Digital Connections
Read instructions carefully when connecting compo-
nents to the receiver.
Digital In Jacks can accept Dolby Digital (AC-3), DTS
or PCM signals when compatible components are
connected.
Component Connections
Component Video In & Out
The Component Video Input is linked to DVD and SAT
modes. Selecting DVD or SAT mode will route a
component video signal connected to the Component
Video IN sockets to the Component Video Out sock-
ets. Using dedicated high-quality video cable (not
provided), connect the input from a device equipped
with Component Video output such as a DVD player.
Connect the Component Video output to a display
device (TV, monitor) to the Monitor outputs.
Connecting the Antennas
The AM and FM antennas connect to the AM and FM
terminals on the system’s back panel.
They must be hooked up in order to receive clear
reception.
AM Loop Antenna and FM Indoor Antenna
1. Uncoil the Antenna wire and locate the base end
of the AM antenna and snap into place as shown
below in AM Loop Antenna.
2. Press down on the Antenna tab to open the termi-
nal
SAT / DVD / CD Player / TV
COAXIAL DIGITAL IN (AUDIO)
Connect to coaxial digital output of
DVD, CD, SAT or other compatible
devices.
OPTICAL DIGITAL IN (AUDIO)
Optical Fiber Cable
Connect to optical digital output of
DVD, CD, SAT or other compatible
devices.
DVD / CD Player / SAT
to COAXIAL OUT (DVD / CD Player / SAT)
to OPTICAL OUT
(DVD / CD Player / SAT / TV)
OPTICAL DIGITAL OUT
Connect to recording device like
CD, CDRW player, DVD recorder, mini disc etc.
TV
SAT DVD
to COMPONENT VIDEO
OUT (DVD)
to COMPONENT VIDEO
OUT (SAT)
to COMPONENT
VIDEO IN (TV)
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation is completely removed from the
ends of the Antenna wires at all connection points.
Antenna Wire Connection
Push terminal tab down to
insert wire.
