10
E-100BTX-FX-05
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Cable Specifications
-- Continued
Copper cable
Category 5: (minimum requirement)
Gauge:
24 to 22 AWG
Attenuation:
22.0 dB /100m @ 100 MHz
Maximum Cable Distance:
100 meters
• Straight-through OR crossover cable may be used.
• Shielded twisted-pair (STP) OR unshielded twisted-pair (UTP) may be used
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

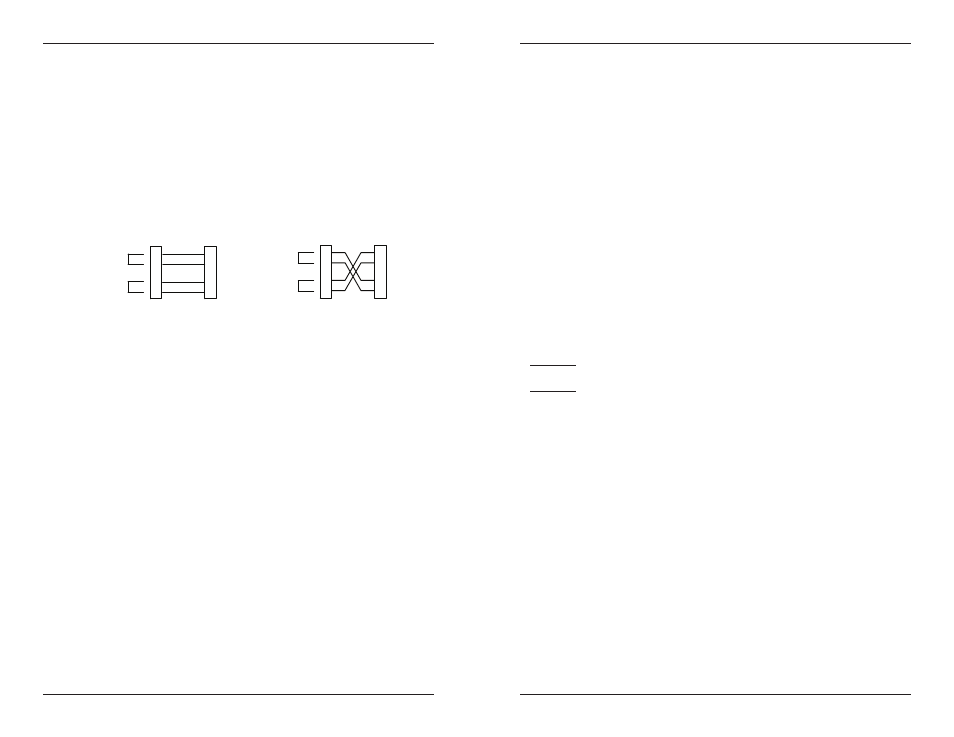

Straight-Through Cable
Crossover Cable
Twisted Pair #1
Twisted Pair #2
Twisted Pair #2
Twisted Pair #1
[email protected] -- Click the “Transition Now” link for a live Web chat.
11
Technical Specifications
For use with Transition Networks Model E-100BTX-FX-05(xxxx) or equivalent
Standards:
IEEE 802.3
Data rate:
100 Mb/s
Dimensions:
4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)
Weight:
6 oz. (181 g) approximate
MTBF
46,768 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
123,821 hours (Bellcore7 V5.0)
Power supply:
(standard temperature)
12 VDC, 0.5 A (minimum)
DC output:
(extended temperature)
9 VDC, 1.0 A (minimum)
minimum output regulation: 5%
Environment:
Tmra* (standard temp):
0°C to 50°C (32 to 122°F)
Storage Temperature:
-15°C to 65°C (5 to 149°F)
Tmra* (extended temp):
-25°C to 65°C (-13 to 149°F)
Storage Temperature:
-25°C to 65°C (5 to 149°F)
Humidity:
10% – 90%, non-condensing
Altitude:
0 to 10,000 feet
Warranty:
Lifetime
*Manufacturer’s rated ambient temperature.
Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J
applicable at the date of manufacture.
CAUTION: Visible and invisible laser radiation when open. Do not stare into beam or view
directly with optical instruments.
CAUTION: Use of controls, adjustments or the performance of procedures other than those
specified herein may result in hazardous radiation exposure.
