• The range has an approximate

shipping weight as shown in
Chart A. It is recommended that
the door(s), grates, burner caps,
front kick panel and oven racks be
removed to facilitate handling.
This will reduce the weight as
shown in Chart A and allow the
range to pass through 30" door-
ways. See Chart B and Fig. 2a and
2b. Do not remove the grill or
griddle assemblies.

• Remove the outer carton and

packing material from the ship-
ping base. Remove the front kick
panel (see Fig. 4) by removing two
(2) screws at the top and pulling
forward. The dual fuel ranges are
held to the skid by four (4) bolts,
the front two (2) are behind the
kick panel (see Fig. 4) and the
rear two (2) are located on the
bottom flange of the range back
(see Fig. 5). All-gas ranges are
held in place by 4 bolts, two (2)
as shown in Fig. 4 and two (2) at
the rear as shown in Fig. 5. After
removing the bolts the range
must be lifted and removed from
the skid.

• To remove the door, open the

door to the fully open position.
Close the hinge latches (See Fig.
6) by rotating towards the door
top. The door can then be re-
moved by gently lifting and
pulling the door, with the hinges
up and out of the frame. Do not
lift the range by the door
handle(s).

Chart A

30" Range

36" Range

48" Range

Shipping Weight

335 lbs.

444 lbs.

584 lbs.

Weight without

285 lbs.

390 lbs.

524 lbs.

packing materials

After removing door(s),

215 lbs.

295 lbs.

395 lbs.

burner caps, front kick
panel and oven racks

Chart B

30" Range

36" Range

48" Range

Doorway Width Required

28-7/8"

30-7/8"

30-7/8"

(Unit Assembled)

Doorway Width Required

27-3/4"

29-1/2"

29-1/2"

(Oven Door(s) Removed)

Proper equipment and
adequate manpower must
be used in moving the
range to avoid damage to
the unit or the floor. The
unit is heavy and rests on
adjustable steel legs.

CAUTION:

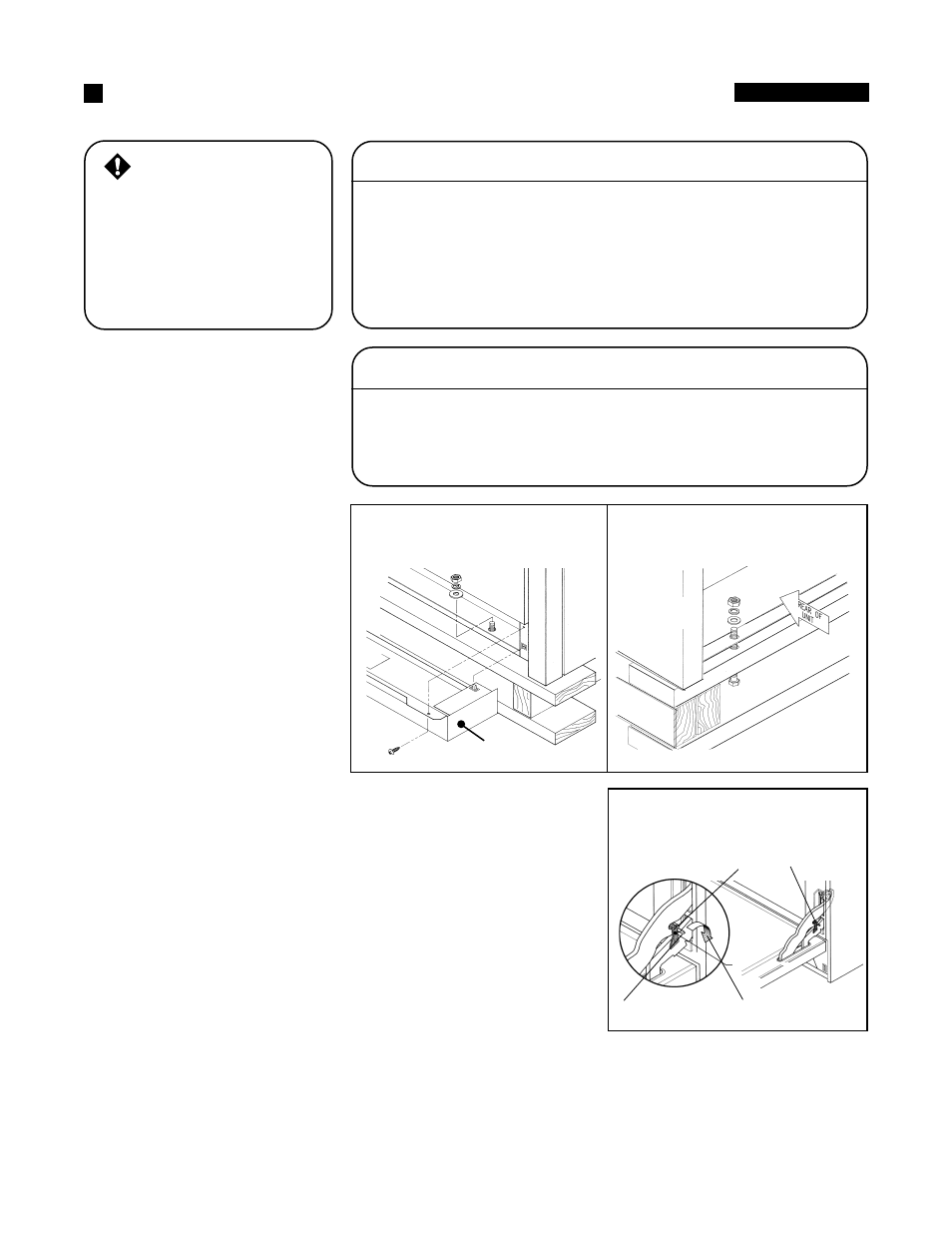

FIG. 4 All Ranges – Removal of
Kick Panel and Two Front
Shipping Bolts

FIG. 5 All-Gas and Dual Fuel
Ranges –Removal of Two Rear
Shipping Bolts

Left Rear
Shipping
Bolt

Front
Kick
Panel

FIG. 6 All Ranges –

Door Removal

STEP 3: UNPACKING, MOVING AND PLACING THE RANGE

Hinge Clip In
Locked Position

Lower Clip After
Replacing Door

Hinge Latch
