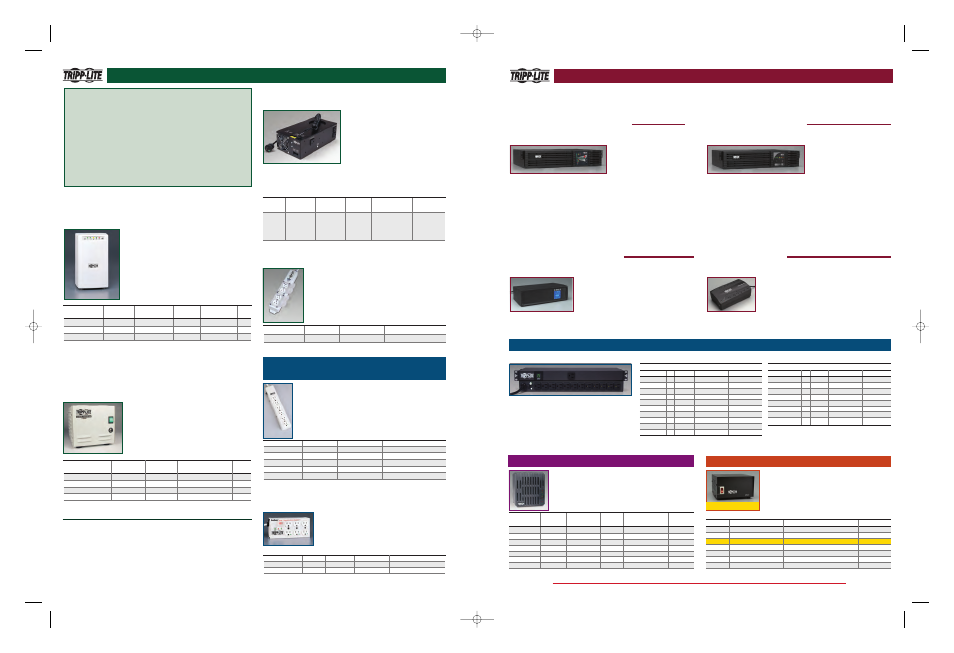

BEST PROTECTION AVAILABLE
SmartOnline ™ UPS Systems
Application: protect and
support mission-critical
servers, network hardware
and other equipment
• True on-line operation with continuous AC-to-DC-to-AC conversion
isolates equipment from all power problems
• Pure sine wave power and zero transfer time to battery enables
maximum compatibility and equipment stability
• Capacities from 750VA to 10kVA (600W to 8kW); 3-phase models from
20-30kVA (16-24kW)
• 2U to 10U total rack size with versatile rack/tower cabinets; tower
models also available
• Extended runtime options available
Model shown: SU2200RTXL2Ua
Medical-Grade Isolation Transformers
Application: provide full line isolation and surge/noise protection
for computers and equipment in patient-care areas
• UL 60601-1 & 1012 listed
• Faraday shield limits cumulative current leakage
to <100 µA
• Surge/noise protection
Capacity Dimensions Weight
Model # (Watts) Outlets (A) H x W x D (in) (lb)
IS250HG 250 2 4.5 x 4.75 x 7.75 13.2
IS500HG 500 4 5.75 x 6.25 x 9.25 22.2
IS1000HG 1000 4 7.25 x 7.25 x 10 36.8
IS1800HG 1800 6 7.75 x 8.25 x 12.25 54
(A) IS1800HG includes NEMA 5-15/20R HG outlets. Other models include NEMA 5-15R HG outlets. IS1800HG's 6 ft. cord
includes a NEMA 5-20P HG plug. Other models include a 6 ft. cord with NEMA 5-15P HG plug.
7
Medical-Grade UPS Systems
Application: provide battery backup and surge/noise protection
for computers and equipment in patient-care areas
• UL 60601-1 & 1778 listed
• Internal isolation transformer limits cumulative
current leakage
• Reliable, long-lasting battery backup
• Automatic Voltage Regulation (AVR) and
surge/noise protection
• Communication port(s) and PowerAlert
Data-Saving Software (A)
Capacity Full/Half Load Dimensions Weight
Model # (VA/Watts) Runtime (B) (min) Outlets (C) H x W x D (in) (lb)
OMNISMART350HG 330/225 18/46 4 10.75 x 5.25 x 7.5 25
SMART700HG 700/450 18/42 4 12.75 x 7.5 x 9.5 44.2
SMART1200XLHG 1000/750 16/34+ 4 12.75 x 7.5 x 9.25 46.4
(A) All models include one RS-232 (DB9) communication port. SMART700HG and SMART1200XLHG also include one
USB port. PowerAlert included with SMART1200XLHG; available as a FREE download for other models. (B) Estimated
runtime varies with load, battery condition and other factors. SMART1200XLHG runtime is expandable with external
battery packs (model BP36V27, sold separately).
(C) All models include NEMA 5-15R HG outlets and 6 ft. cord with
NEMA 5-15P HG plug.
MEDICAL-GRADE PRODUCTS
Medical-Grade Mobile Power
Retrofit Kit –
NEW!
Application: provide battery
backup and surge/noise protection
for computers and equipment on
mobile carts in patient-care areas
• UL 60601-1 and 1778 listed
• Internal isolation transformer limits
cumulative current leakage
• Adds reliable, long-lasting AC power to non-powered medical carts
• Mounting hardware supports installation with the most popular carts
• Built-in USB port and Included PowerAlert Data-Saving Software
Capacity Runtime (A) Dimensions Weight
Model # (VA/Watts) (hr) Outlets (B) H x W x D (in) (lb)
HCRK 350/300 Up to 12 3 Power Supply: Power Supply:
3.5 x 11.5 x 6 14.4
Battery Module: Battery Module:
7 x 14.5 x 8.5 61.5
(A) Estimated runtime in standard configuration. Runtime varies with load, battery condition and other factors. Additional runtime
solutions available (contact Tripp Lite). (B) NEMA 5-15R HG outlets and coiled 10 ft. cord with NEMA 5-15P HG plug.
6
ADVANCED PROTECTION
SmartPro ® UPS Systems
Application: protect and
support servers, workstations,
network hardware and other
equipment
• Advanced automatic voltage regulation protects against brownouts and
other voltage problems
• Most models offer pure sine wave power
• Capacities from 500VA to 5kVA (300W to 4kW)
• 1U to 6U total rack size with versatile rack/tower cabinets; tower
models also available
• Extended runtime options available
Model shown: SMART1500RMXL2Ua
All Tripp Lite UPS systems provide reliable battery backup to support equipment during blackouts and other power failures. All models also include line noise
filtering and network-grade surge suppression to protect equipment against everything from catastrophic hardware damage to irreparable data corruption.
Most models include communication ports and support automatic unattended shutdown of connected computers during extended blackouts. For more
information about Tripp Lite UPS systems, request our full-color UPS brochure or go to www.tripplite.com.
PRECISION-REGULATED DC POWER SUPPLIES
Application: power test benches, 2-way
radios, ham radios and point-of-sale
displays
• Regulated output and overvoltage protection
• Quality filtering and current-limiting feature
LINE CONDITIONERS
Application: protect equipment in manufacturing
and other industrial environments
• 89-147V input voltage regulated to 120V output
• EMI/RFI line noise filtration and surge suppression
Model Shown: LC1800
Output Dimensions
Model # Format Capacity (Watts) Outlets (A) H x W x D (in) Weight (lb)
LS606M Tower 600 6 5.5 x 4.75 x 4.75 3.8
LC1200 Tower 1200 4 6.75 x 5.75 x 6.75 8
LC1800 Tower 1800 6 6.75 x 5.75 x 6.75 9.6
LC2400 Tower 2400 6 6.75 x 5.75 x 6.75 11.2
LS604WM Wallmount 600 4 4 x 5 x 5.75 8.3
LC1200WM Wallmount 1200 4 5 x 5 x 7.25 10
LCR2400 Rackmount 1200 14 5.25 x 19 x 7.75 18.2
All models are rated to 120V AC, 60 Hz. output. (A) All outlets are NEMA 5-15R except LC2400 which includes two
NEMA 5-15/20R outlets. The policy of Tripp Lite is one of continuous improvement. Specifications are subject to
change without notice.
Model # Amps (ICS/Continuous) Dimensions H x W x D (in) Weight (lb)
PR3UL 4.5/3 4.25 x 3 x 7.5 4
PR4.5 4.5/3 3.25 x 3 x 8.25 5
PR7 7/5 3.75 x 6.5 x 7.5 7
PR10 10/7.5 4.5 x 6.75 x 7.75 10
PR15 15/12 4.5 x 6 x 10 13
PR25 25/20 6.75 x 6.25 x 10.25 19
PR40 40/32 6.75 x 10.5 x 11.5 27
All models are rated to 120V AC, 60 Hz. input and 13.8V DC (± .5V) output. Additional models with ICS ratings
from 3 to 60 amps are available.
PR7: Our most popular model!
O R D E R I N G : Contact Tripp Lite to order through a distributor near you: (773) 869-1234 • www.tripplite.com
Life Support Statement: Use of this equipment in life support
applications where failure of this equipment can reasonably be
expected to cause the failure of the life support equipment or to
significantly affect its safety or effectiveness is not recommended.
Do not use this equipment in the presence of a flammable anesthetic
mixture with air, oxygen or nitrous oxide.
All Tripp Lite Healthcare Power Solutions are rated for 120V electrical service
and include Hospital-Grade plugs and outlets. The policy of Tripp Lite is one
of continuous improvement. Specifications are subject to change without notice.
Tripp Lite Medical-Grade Products Facilitate UL 60601-1 Compliance
Why is UL 60601-1 important?
The safety of patients and staff depends on it. UL 60601-1 is a shock-
prevention measure specified by NEC (National Electrical Code) requirements,
covering all electronic devices in patient-care areas. Tripp Lite's Medical-Grade
products are tested and certified for full UL 60601-1 compliance.
Can you meet UL 60601-1 standards and stay under budget?
Tripp Lite Medical-Grade products provide UL 60601-1 compliance for all
connected devices, allowing you to continue using your existing hardware.
Compared to upgrading site wiring and replacing equipment, that's a
major savings!
Medical-Grade Power Strip – NEW!
Application: provide convenient outlets in
patient-care areas
• UL 60601-1 and 60950-1 listed
• Integrated outlet safety covers
• Site wiring fault protection (A)
• Accidental shutoff protection (B)
Model # Outlets (C) Cord Length (ft) Dimensions H x W x D (in)
PS-415-HGULTRA 3 15 1.5 x 13.75 x 2.5
(A) Wiring fault protection resets automatically. Patent pending. Also includes 15A circuit breaker. (B) Switchless design. (C)
NEMA 5-15R HG outlets and NEMA 5-15P HG plug.
PRODUCTS WITH HOSPITAL-GRADE
PLUGS & RECEPTACLES
Hospital-Grade Power Strips
Application: provide convenient
hospital-grade outlets
• UL 1363 listed
• Accidental shutoff protection (A)
Model # Outlets (B) Cord Length (ft) Dimensions H x W x D (in)
PS-415-HG 4 15 1.5 x 8.65 x 2.5
PS-602-HG 6 1.5 1.5 x 13.75 x 2.5
PS-606-HG 6 6 1.5 x 13.75 x 2.5
PS-615-HG 6 15 1.5 x 13.75 x 2.5
RS-1215-HG 12 15 1.75 x 19 (C) x 4
(A) All models are switchless, except RS-1215-HG, which includes illuminated switch with protective cover. (B) All models
include NEMA 5-15R HG outlets and NEMA 5-15P HG plug. Not for use where NEC requires hospital-grade receptacles.
(C) Designed for standard 19-inch racks. Unit without mounting hardware is 17.5 inches.
Hospital-Grade Surge Suppressors
Application: provide convenient hospital-
grade outlets with surge protection
• UL 1449 & 1363 listed
• Accidental shutoff protection (A)
Model Outlets (B) Joule Rating Cord Length (ft) Dimensions H x W x D (in)
SPS-615-HG 6 450 15 1.5 x 13.75 x 2.5
ISOBAR6ULTRAHG 6 600 15 2.5 x 7 x 3.5
(A) SPS-615-HG is switchless; ISOBAR6ULTRAHG includes illuminated switch with protective cover. (B) All models include
NEMA 5-15R HG outlets and NEMA 5-15P HG plug. Not for use where NEC requires hospital-grade receptacles.
ISOBAR6ULTRAHG includes exclusive isolated filter banks.
INTERMEDIATE PROTECTION
Digital, AVR & OmniSmart ™ UPS Systems
Application: protect and support computers,
workstations, peripherals, A/V components
and other equipment
• Automatic voltage regulation protects
against brownouts and other voltage problems
• Capacities from 300VA to 1500VA (180W to 980W)
• Tower and low-profile desktop cabinets
Model shown: SMART1000LCD
BASIC PROTECTION
Internet Office ® & BC Series UPS Systems
Application: protect and support SOHO
computers, peripherals and other office
equipment
• Reliable battery backup and surge protection
• Capacities from 300VA to 1400VA (150W to 940W)
• Tower and low-profile desktop cabinets
Model shown: INTERNET750U
PDUs with Digital Load Meters
Model #
1U Amps Plug Outlets
PDUMH15 Y 15A 5-15P 13 (5-15R)
PDUMV15 N 15A 5-15P 16 (5-15R)
PDUMV20 N 20A L5-20P (A) 20 (5-15/20R)
PDUMV40 N 2 x 20A 2 x L5-20P (B, D) 32 (5-15/20R)
PDUMH15AT Y 15A 5-15P 8 (5-15R)
PDUMH20AT Y 20A 2 x L5-20P (B, D) 16 (5-15/20R)
PDUMH15ATNET Y 15A 5-15P 8 (5-15R)
PDUMH20ATNET Y 20A 2 x L5-20P (B, D) 16 (5-15/20R)
UPS SYSTEMS & POWER DISTRIBUTION UNITS
POWER DISTRIBUTION UNITS (PDUs)
Application: distribute power to rackmount and other equipment in IT and industrial environments
Standard PDUs
Model #
1U Amps Plug Outlets
PDU1215 Y 15A 5-15P 13 (5-15R)
PDU1220 Y 20A 5-20P 13 (5-15/20R)
PDU1220T Y 20A L5-20P 13 (5-15/20R)
PDU2430 Y 30A L5-30P 24 (5-15R)
PDU1230 Y 30A L6-30P 2 (C19), 16 (C13)
PDU1415 N 15A 5-15P 14 (5-15R)
PDU1420T N 20A L5-20P 14 (5-15/20R)
PDU40TDUAL N 2 x 20A 2 x L5-20P (A, B) 40 (5-15/20R)
PDUNV Y 16A Multiple (C) 12 (C13), 2 (C19)
PDU12IEC Y 16A C20 inlet 12 (C13), 2 (C19)
PDUs are rated for 120V input/output, except PDU1230 (200-240V), PDUNV and PDU12IEC (100-240V). (A) Dual independent power circuits with dual cords, plugs and circuit breakers. (B) Includes L5-20P to 5-20P adapter(s). (C) Includes C14, 5-15P, 5-20P, L5-20P and L6-20P plugs. (D) Includes redundant inputs with automatic transfer switch. "ATNET" models can be
monitored and controlled via Ethernet. "AT" models are upgradeable to "ATNET" models.
• 1U rack (select models), 0U rack (vertical) or
surface (wall, counter, workbench) installation
• Metal enclosures and 10-15 ft. cords
• Metered PDUs include digital load meters that
display the current drawn by connected
equipment (in amps)
Model shown: PDUMH15
SMART1200XLHG
IS1800HG
HCRK
PS-415-HGULTRA
PS-606-HG
ISOBAR6ULTRAHG
