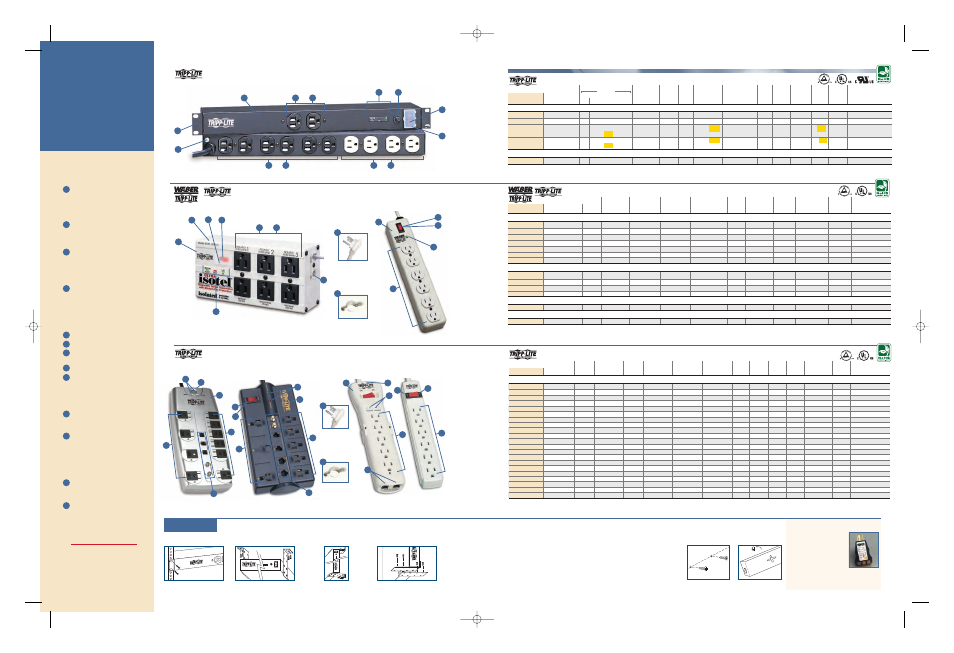

Metal Heavy-Duty Housing Surge Suppressors
4 – 8 outlets, 13 models available!
4
Surge Suppressors
• Up to 3690 Joules
• Heavy-Duty Metal or
Plastic Housings
• Mount On Any Surface
• 2 - 14 Outlets
F E A T U R E S
See “Features” column in charts on
page 5 for features of specific models.
Plastic Standard-Duty Housing Surge Suppressors
2 – 10 outlets, 21 models available!
Surge Suppression
All AC outlets protect against
damaging surges and disruptive
EMI/ RFI line noise.* Widely spaced
outlets accept multiple transformers.
Heavy-Duty Metal Housings
Heavy-duty steel or extruded
aluminum housings stand up to the
most demanding environments.**
Standard-Duty Plastic
Housings
High-impact plastic provides a
durable, economical alternative
in demanding environments.
Isolated Filter Banks
Premium-grade Isobar models
feature isolated banks of
receptacles that eliminate
interference between connected
equipment, reducing data errors
and audio/video signal distortion.
Illuminated On/Off Switch
Locking Safety Cover
Circuit Breaker
(Separate or Integrated)
Diagnostic LEDs ***
Tel/Modem, Ethernet and/or
Cable/Satellite Surge Protection
Protects equipment from damaging
surges on telephone/modem,
network and/or cable/satellite lines.
Right-Angle Plug
Allows equipment and furniture to
be moved flush against the wall.
Adjustable Mounting Hardware
Removable, adjustable hardware
included with rackmount models
provides secure mounting for a
variety of applications including
rack, workbench, wall or floor
mount.
Keyhole Slots
Provide secure mounting for a
variety of applications.
Grounding Post
* DRS-1215 and DG206 do not provide EMI/RFI
line noise filtering. **All metal housings are
steel, except Isobar models which are extruded
aluminum. *** TLP810NET, TLP810SAT and
TLP808TELTV also include an audible alarm.
ORDERING:
Contact Tripp Lite to order
Surge Suppressors through
a distributor near you:
(773) 869-1234 • www.tripplite.com
A
B
C
D
E
F
G
Rack Mount Heavy-Duty Metal Housing Surge Suppressors
B
E
F
H
ISOBAR12ULTRA (front and rear panel)
A
K
H
G
Metal Heavy-Duty Housing Surge Suppressors
ISOTEL6ULTRA DG115-SI
B B
H
H
E E F
I
I
SUPER7TEL TLP602
H
A
H
I
Plastic Standard-Duty Housing Surge Suppressors
Rackmount Heavy-Duty Metal Housing Surge Suppressors
12-14 outlets, 5 models available!
J
K
L
M
M
D
A D A D
G
A D
A
Keyhole Slots
(all models)
Right-Angle Plug
(select models)
G
L
J
A
A
I
C
Keyhole
Slots
(select models)
Right-Angle
Plug
(select models)
L
J
G
A
C
C
Joules
OUTLET Surge UL1449 Isolated Plug
Suppression (2nd Rack Electrical Filter Cord (NEMA Housing Dimensions (C)
FEATURES Model # Qty. NEMA Type Rating edition) Height Rating Switch LEDs (A) Banks Length (B) Type) Color L x W x D (in)
Premium-Grade Isobar ® —UL-Recognized
A B D E F G H K M ISOBAR12ULTRA 12 5-15R (2 front, 10 rear) 1280 330 1U 1800W (15A) Lighted/Protected 3 2 15 ft. 5-15P Black (1U) 1.75 x 19 x 3.75
A B D E F G H K M IBAR12 12 5-15R (2 front, 10 rear) 1280 400 1U 1800W (15A) Lighted/Protected 3 2 15 ft. 5-15P Black (1U) 1.75 x 19 x 3.75
A B E F G H K M IBAR12/20ULTRA 12 5-15R (2 front) 1280 330 1U 2400W (20A) Lighted/Protected 3 – 15 ft. 5- 20 P Black (1U) 1.75 x 19 x 3.75
5-15/ 20R (10 rear)
A B E F G H K M IBAR12-20T 12 5-15R (2 front) 1280 330 1U 2400W (20A) Lighted/Protected 3 – 15 ft. L5- 20 P Black (1U) 1.75 x 19 x 3.75
5-15/ 20R (10 rear) (twist lock)
Commercial-Grade—UL-Recognized
A B E F G H K M DRS-1215 (D) 14 5-15R (6 front/8 rear) 1050 400 1U 1800W (15A) Lighted/Protected 1 – 15 ft. 5-15P Black (1U) 1.75 x 19 x 3.75
(A) Models with 3 LEDs: Fault (indicates absence of proper outlet grounding); Line OK (indicates presence of AC power); Protection Present (indicates presence of sufficient surge suppression). Models with 1 LED: Protection Present
(indicates presence of sufficient surge suppression). (B) 15-amp models feature 14/3 SJT cord types; 20-amp models feature 12/3 SJT cord types. (C) Designed for standard 19 inch racks. Unit width without mounting hardware
is 17.5 inches. (D) DRS-1215 includes 6 safety covers for use with unused outlets. All models include EMI/RFI line noise filtering (except DRS-1215). The policy of Tripp Lite is one of continuous improvement. Specifications are
subject to change without notice.
Joules Surge Tel/Modem Isolated
Suppression UL1449 Surge Filter Cord Plug Housing Dimensions
FEATURES Model # Outlets (A) Rating (2nd edition) Protection Switch LEDs (B) Banks Length Style (C) Color L x W x D (in)
Premium-Grade Tripp Lite Isobar ® —UL1449
A B D E G H J L ISOBAR8ULTRA 8 2350 330 – Lighted 3 4 12 ft. Right-Angle Beige 9 x 3.5 x 2.5
A B D E G H J L ISOBAR825ULTRA 8 2350 330 – Lighted 3 4 25 ft. Right-Angle Beige 9 x 3.5 x 2.5
A B D E G H I J L ISOTEL8ULTRA 8 2850 330 1 line Lighted 3 4 12 ft. Right-Angle Beige 9 x 3.5 x 2.5
A B D E F G H J L ISOBAR6ULTRA 6 2350 330 – Lighted/Protected 3 3 6 ft. Right-Angle Beige 7 x 3.5 x 2.5
A B D E F G H I J L ISOTEL6ULTRA 6 2850 330 2 line Lighted/Protected 3 3 6 ft. Right-Angle Beige 7 x 3.5 x 2.5
A B D E F G H J L ISOBAR4ULTRA 4 2200 330 – Lighted/Protected 3 2 6 ft. Right-Angle Beige 6 x 3.5 x 2.5
A B D E F G H I J L ISOTEL4ULTRA 4 2700 330 1 line Lighted/Protected 3 2 6 ft. Right-Angle Beige 6 x 3.5 x 2.5
Commercial-Grade Waber-by-Tripp Lite—UL1449
A B E G H L DG115-SI 6 600 400 – Lighted 1 – 6 ft. Straight White 12.5 x 2.5 x 1.5
A B E G H L DG206 6 450 400 – Lighted 1 – 6 ft. Straight White 12.5 x 2.5 x 1.5
A B E G H PM6SN1 6 450 400 – Lighted 1 – 6 ft. Straight Beige 12.5 x 2.5 x 1.5
A B E G H PM6NS 6 450 400 – Lighted 1 – 6 ft. Straight Beige 12.5 x 2.5 x 1.5
Premium-Grade with Hospital-Grade Plug & Receptacles (D) —UL1449
A B D E F G H L ISOBAR6ULTRAHG 6 600 330 – Lighted/Protected 3 1 15 ft. Hospital-Grade Beige 7 x 3.5 x 2.5
Commercial-Grade with Hospital-Grade Plug & Receptacles (D) —UL1449
A B G H L SPS-615-HG 6 450 400 – None 1 – 15 ft. Hospital-Grade White 12.5 x 2.5 x 1.5
(A) All outlets are NEMA 5-15R except on models ISOBAR6ULTRAHG and SPS-615-HG (NEMA 5-15R HG, hospital-grade). All models feature 14/3 SJT cord types. All "ISOBAR" models include safety covers for use with unused outlets.
(B) Models with 3 LEDs: Fault (indicates absence of proper outlet grounding); Line OK (indicates presence of AC power); Protection Present (indicates presence of sufficient surge suppression). Models with 1 LED: Protection Present
(indicates presence of sufficient surge suppression). (C) All plugs are NEMA 5-15P except on models ISOBAR6ULTRAHG and SPS-615-HG (NEMA 5-15P HG, hospital-grade). (D) Not for use where NEC requires hospital-grade receptacles. All models
are rated to 120V AC, 50/60 Hz. with an 1800W (15A) electrical rating and include EMI/RFI line noise filtering (except DG206). The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change without notice.
Joules Surge UL1449 Tel/Modem Coaxial Ethernet
Suppression (2nd Surge Surge Surge Cord Plug Housing Dimensions
FEATURES Model # Outlets (A) Rating edition) Protection Protection (F) Protection Switch LEDs (B) Alarm Length Style (C) Color L x W x D (in)
Office-Grade Tripp Lite—UL1449
A C G H I J L TLP1008TELTV 10 3345 330 1 in/2 out 1 in/1 out – Unlit 2 - 8 ft. Right-Angle Silver 11.6 x 5 x 2.25
A C G H I J L TLP1008TEL 10 2395 330 1 in/2 out – – Unlit 2 - 8 ft. Right-Angle Silver 11.6 x 5 x 2.25
A C E G H I J L TLP810NET 8 3690 330 2-line (1 in/1out) 1 in/1 out 1 in/1 out Lighted 2 Yes 10 ft. Right-Angle Black 9.25 x 4.25 x 1.5
A C E G H I J L TLP810SAT 8 3570 330 1 in/1 out 2 in/2 out – Lighted 2 Yes 10 ft. Right-Angle Black 9.25 x 4.25 x 1.5
A C E G H I J L TLP808TELTV 8 3500 330 1 in/2 out 1 in/1 out – Lighted 2 Yes 8 ft. Right-Angle Gray 9.25 x 4.25 x 1.5
A C E G H I J L TLP808TEL 8 2820 330 1 in/2 out – – Lighted 2 – 8 ft. Right-Angle White 9.25 x 4.25 x 1.5
A C E G H J L TLP808 8 1900 330 – – – Lighted 2 – 8 ft. Right-Angle White 9.25 x 4.25 x 1.5
A C G H I J L SUPER7TEL15 7 2720 330 1 in/1 out – – Unlit 2 – 15 ft. Right-Angle White 10.25 x 2.75 x 1.5
A C G H I J L SUPER7TEL 7 2470 330 1 in/1 out – – Unlit 2 – 7 ft. Right-Angle White 10.25 x 2.75 x 1.5
A C G H I J L SUPER7COAX 7 2350 330 – 1 in/1 out – Unlit 2 – 7 ft. Right-Angle White 10.25 x 2.75 x 1.5
A C G H J L SUPER7 7 2350 330 – – – Unlit 2 – 7 ft. Right-Angle White 10.25 x 2.75 x 1.5
A C E G H I J TLP707TEL 7 1270 330 1 in/1 out – – Lighted 2 - 7 ft. Right-Angle Silver 10.75 x 2.25 x 1.5
A C G H I L SUPER6TEL12 7 1270 330 1 in/1 out – – Unlit 1 – 12 ft. Straight White 10.25 x 2.75 x 1.5
A C G H I L SUPER6TEL 7 1270 330 1 in/1 out – – Unlit 1 – 6 ft. Straight White 10.25 x 2.75 x 1.5
A C E G H L TLP712 7 1000 330 – – – Lighted 1 – 12 ft. Straight White 11.25 x 2.1 x 1.5
A C E G H L STRIKER 7 750 330 – – – Lighted 1 – 6 ft. Straight White 11.25 x 2.1 x 1.5
A C E G H I L TLP604TEL 6 870 330 1 in/1 out – – Lighted 1 – 4 ft. Straight White 10.5 x 1.6 x 1.25
A C G L TLP604 6 720 330 – – – Unlit – – 4 ft. Straight White 10.5 x 1.6 x 1.25
A C G L TLP602 6 250 330 – – – Unlit – – 2 ft. Straight White 9.5 x 1.5 x 1.5
A C H I TRAVELER 2 1050 330 1 in/1 out – – None 2 – – Retractable Black 3.5 x 1.75 x 2.5
A C H I TRAVELER100BT 2 1050 330 1 in/1 out (D) – 1 in/1 out (D) None 2 – – Retractable Black 3.5 x 1.75 x 2.5
(A) All outlets are NEMA 5-15R. All 8 and 10 outlet models include outlets with sliding safety covers. (B) Models with 2 LEDs: Grounded (indicates presence of proper outlet grounding); Protected (indicates presence of sufficient surge
suppression). Models with 1 LED: Protected (indicates presence of sufficient surge suppression). (C) All plugs are NEMA 5-15P. All models feature 14/3 SJT cord types. All models are rated to 120V AC, 50/60 Hz. with an 1800W (15A)
electrical rating and include EMI/RFI line noise filtering. (D) RJ45 jacks protect either Tel/Modem or Ethernet line, but not both lines simultaneously. The policy of Tripp Lite is one of continuous improvement. Specifications are subject
to change without notice.
5
G
E
TLP810NET TLP1008TELTV
A
A
H G
C
I
G
Mounting Options Adjustable Mounting Hardware (Rack/Bench/Wall/Floor Mount)
Removable, adjustable hardware included with rack mount models provides 4 separate secure mounting
methods for a variety of applications, including rack, workbench, wall or floor mount.
Mount to rack using
rack screws.
Reorient hardware and reinstall along
sides of outlet strip. Mount under bench.
Reorient hardware and reinstall along
sides of outlet strip. Mount on wall.
Reorient hardware and reinstall along one
side of outlet strip. Mount on floor.
Keyhole Slots Keyhole slots on the bottom of all models (except rack mount) provide secure mounting.
METAL HOUSING MODEL MOUNTING CENTERS
ISOBAR8ULTRA / ISOTEL8ULTRA, ISOBAR25ULTRA = 8.3125 in.; ISOBAR6ULTRA / ISOTEL6ULTRA / ISOBAR6ULTRAHG = 6.8125 in.;
ISOBAR4ULTRA / ISOTEL4ULTRA = 5.25 in.; DG115-SI / DG206 / SPS-615-HG = 8 in.
(Note: PM6SN1 and PM6NS do not feature keyhole mounting slots.)
PLASTIC HOUSING MODEL MOUNTING CENTERS
TLP1008TELTV / TLP1008TEL = 3.375 in.; TLP810NET / TLP810SAT / TLP808TELTV /
TLP808TEL / TLP808 / SUPER7TEL15 / SUPER7TEL / SUPER7COAX / SUPER7 /
SUPER6TEL12 / SUPER6TEL = 3.4375 in.; TLP604 / TLP604TEL / TLP602 = 4.5 in.;
STRIKER / TLP712 = 5.625 in. (Note: TRAVELER, TRAVELER100BT and TLP707TEL
do not feature keyhole mounting slots.)
Measure, mark and drive
screws along straight line.
Slide keyhole slots over
screw heads.
AC Outlet Circuit Tester
• Instantly detects
faulty wiring in
standard 3-wire,
120V AC wall outlets
• Easy-to-read display
signals open ground,
neutral or hot; and hot/ground or
hot/neutral reversals
Model: CT120
Rack Mount Bench Mount Wall Mount Floor Mount
