Page 106
Parts Section 5-22
12-17-02

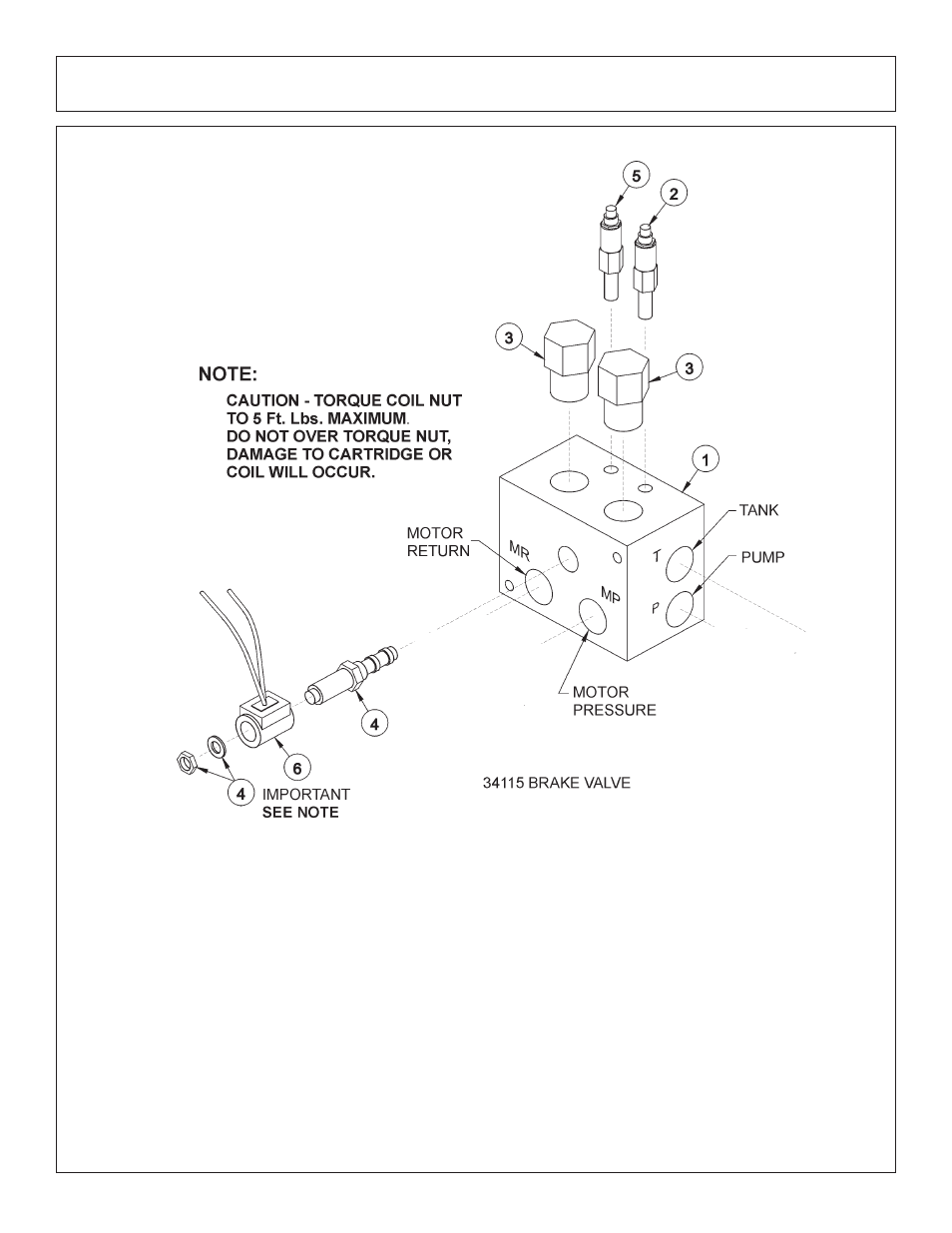

SOLENOID BRAKE VALVE ASSEMBLY
ITEM
PART NO. QTY.
DESCRIPTION
*
34115
AVAIL SOLENOID BRAKE VALVE ASSEMBLY - HIGH PRESSURE
1
34092
1
BRAKE VALVE, BLANK
2
34095
1
RELIEF VALVE, 3000 PSI
3
34094
2
LOGIC ELEMENT
4
34093
1
CARTRIDGE, 2 POSITION, 3 WAY (WITH NUT & WASHER)
5
34091
1
RELIEF VALVE, 2600 PSI
6
34689
1
COIL, 12 VDC, BRAKE VALVE
**
34096
2
RELIEF SEAL KIT
**
34097
1
SOLENOID SEAL KIT
**
34098
2
ELEMENT SEAL KIT
