6-1

6. INSTALLATION PROCEDURE

EO1-33019

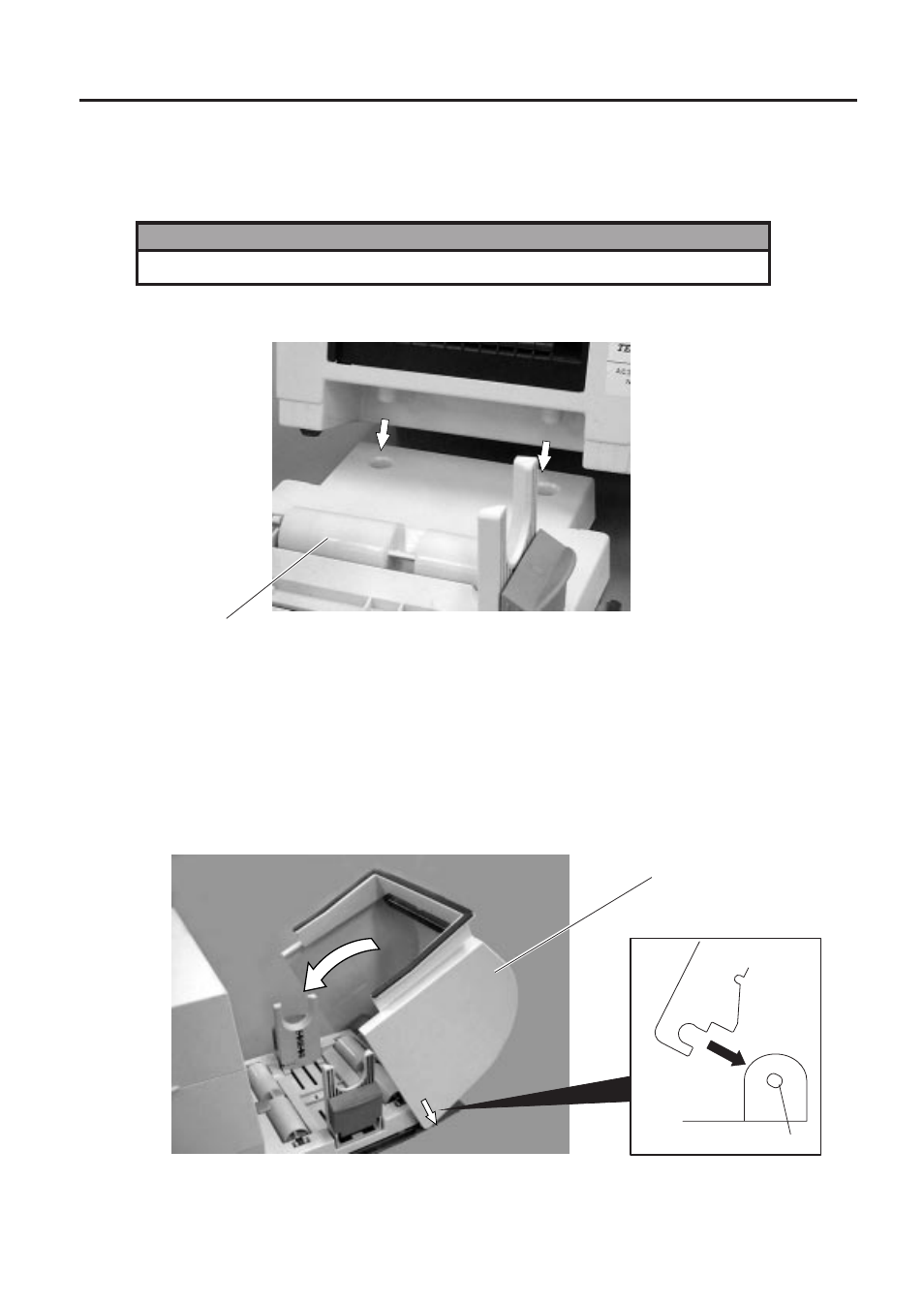

6.1 INSTALLING THE SUPPLY HOLDER UNIT

Fit the two studs on the bottom of the printer into the holes in the supply holder unit.

Fit both hooks of the supply cover onto the shafts of the supply holder, and then gently close the supply
cover. (Refer to Fig. 6-2)

NOTE: After this section, the supply cover will be removed in photos and figures. Please understand

that it provides clearer descriptions.

Fig. 6-1

WARNING!

Turn the power OFF before installing the supply holder unit.

Supply Holder Unit

Fig. 6-2

Supply Cover

Hook

Shaft
