TANDBERG 990 - Manual (Page 97)

TANDBERG Videoconferencing System
97
Peripherals
1 . Single 2 . Single
Video out
Audio out
3 . Dual
3 . Doc 4 . VCR
VGA out
1
Mic 1
2
Mic 2
3 4
VCR
1 2
1 . Single 2 . Single
Video out
Audio out
3 . Dual
3 . Doc 4 . VCR
VGA out
1
Mic 1
2
Mic 2
3 4
VCR
1 2

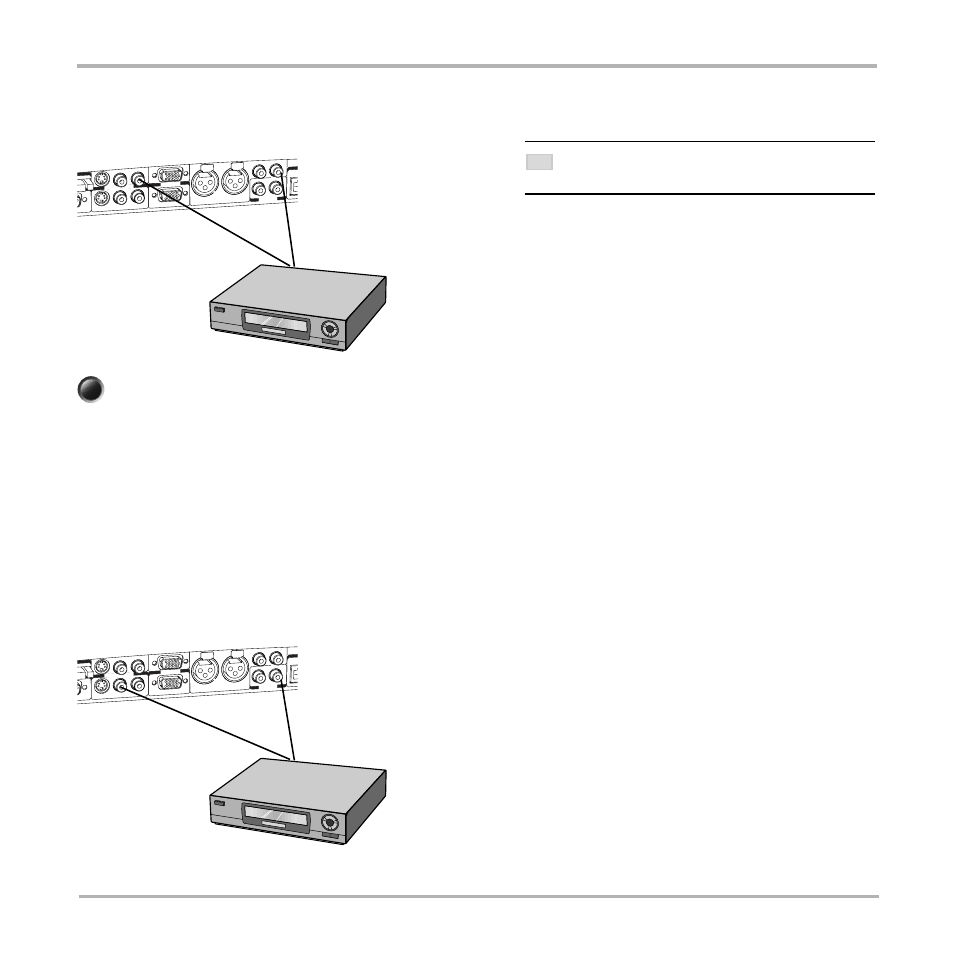

Video Cassette Recorder (VCR)
VCR - Playback
For playback, connect a cable between Video Out on the
VCR and ‘VideoIn 4 (VCR)’ on the system. Connect a
cable between Audio Out on the VCR and the VCR audio
input on the system.
T O SIMPLIFY CONNECTING A VCR, THE NECESSARY
CONNECTORS ARE MARKED ‘VCR’
Press VCR to activate the VCR input.
Make sure that ‘Audio In 4 (VCR)’ is On (see ‘Audio Settings’). If audio from VCR is too low, this level can be
adjusted in ‘Audio Settings’, ‘Inputs’, ‘Level Settings’. The audio from the VCR will be audible in the local speaker
system.
The audio from the VCR and your microphone(s) will be mixed and sent to the far end. When a person talks on
either local or far end, the VCR audio level will be reduced to make it easier to comment on a video recording
when ‘Audio Settings’, ‘Mix Mode: Auto’.
VCR - Recording
When recording, the VCR will record the video as it appears on the main monitor, the local audio and the audio
from the far end.
When recording a videoconference, connect a cable
between ‘VideoOut 2’ on the system and Video In on the
VCR. Connect a cable between ‘AudioOut 2’ on the system
and Audio In on the VCR.
Video
Codec: Video Output 2
VCR: Video Input
Audio
Codec: Audio Output 2
VCR: Audio Input
Video
Codec: Video Input 4 (VCR)
VCR: Video Output
Audio
Codec: Audio Input 4 (VCR)
VCR: Audio Output
vcr
TIP
