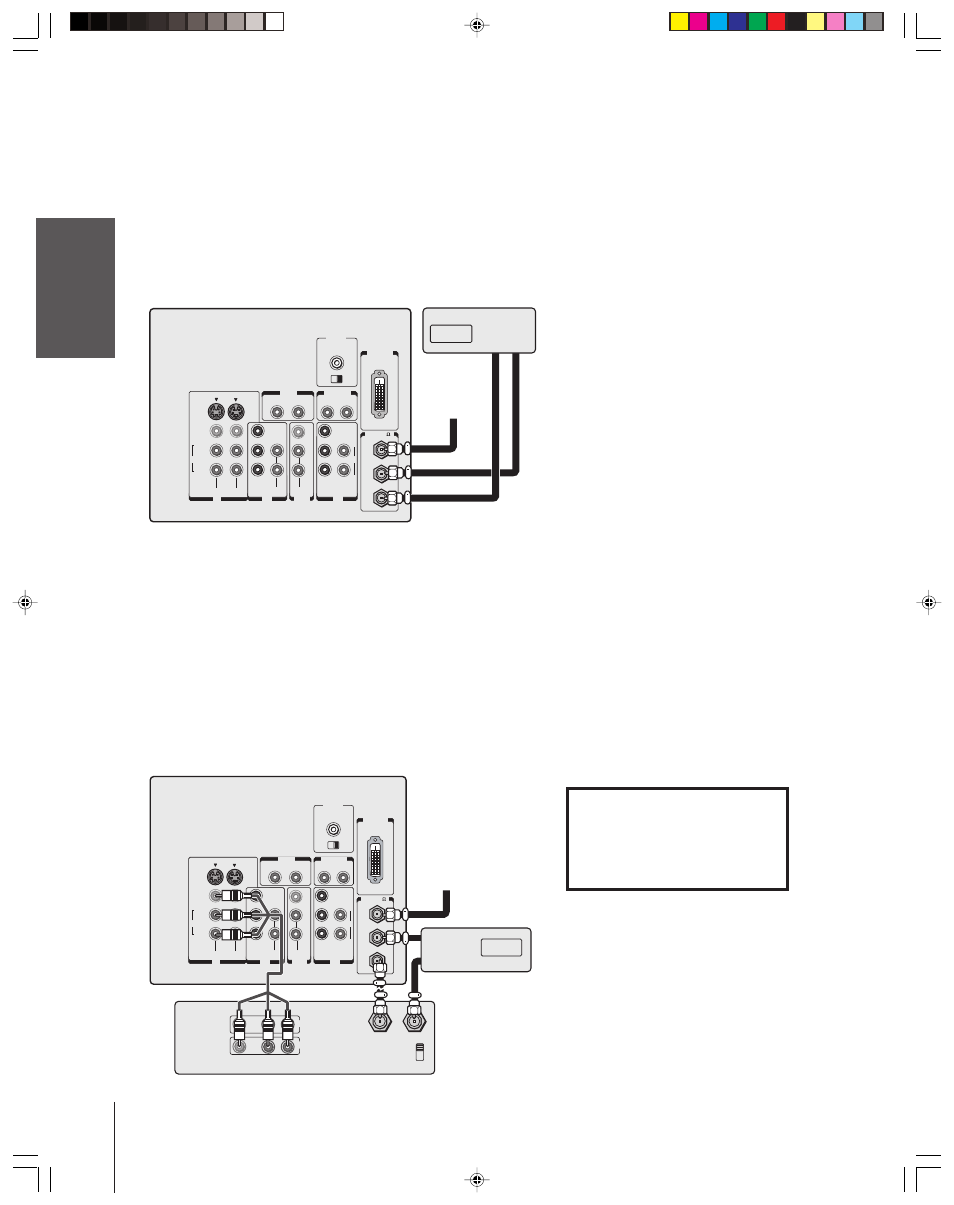

Connecting a cable converter box
This connection allows you to watch basic and premium cable
channels.
To view basic channels and use the TV’s features, select ANT-1. To
view premium channels, select ANT-2, tune the TV to channel 3 or 4
(whichever channel is vacant in your area), and use the converter box
to change channels.
You will need:
• three coaxial cables
Connecting a cable converter box and VCR
This connection allows you to watch and record basic and premium
cable channels, watch videotapes, and record one channel while
watching another channel. To view basic channels and use the TV’s
features, select ANT-1.
To view premium channels or record with the VCR, select ANT-2,
tune the TV to channel 3 or 4 (whichever channel is vacant in your
area), and use the converter box to change channels.
You will need:
• four coaxial cables
• one set of standard A/V cables
ANT (75 )
ANT-1
OUT
ANT-2
ON OFF
AUDIO
CENTER
CHANNEL IN
OUT
VAR
AUDIO R L
OUT
VIDEO
L/
MONO
IN
L
R
P B
P R
Y
L /
MONO
AUDIO
S-VIDEO
VIDEO
VIDEO-1 VIDEO-2 AUDIO AUDIO
IN IN
L
R
R
AUDIO
COLOR
STREAM
HD 2
COLOR
STREAM
HD 1
P B
P R
Y
IN For
DVI/HDCP
R L
R
DVI/HDCP
IN
OUT
IN
Cable converter box
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L R
L R CH 4
IN
OUT
Note:
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have a VCR with S-video, use an
S-video cable instead of a standard video
cable. Do not connect a standard video cable
and an S-video cable to Video-1 (or Video-2)
at the same time, or the picture performance
will be unacceptable.
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
