23
OPTICAL COAXIAL
K MAIN 8
EXT INT
K
(AUDIO/VIDEO) (AUDIO/VIDEO)
(4)
(AUDIO/VIDEO)
AUDIO P R /C R
P B /C B
Y
COMPONENT
VIDEO INPUT
AUDIO

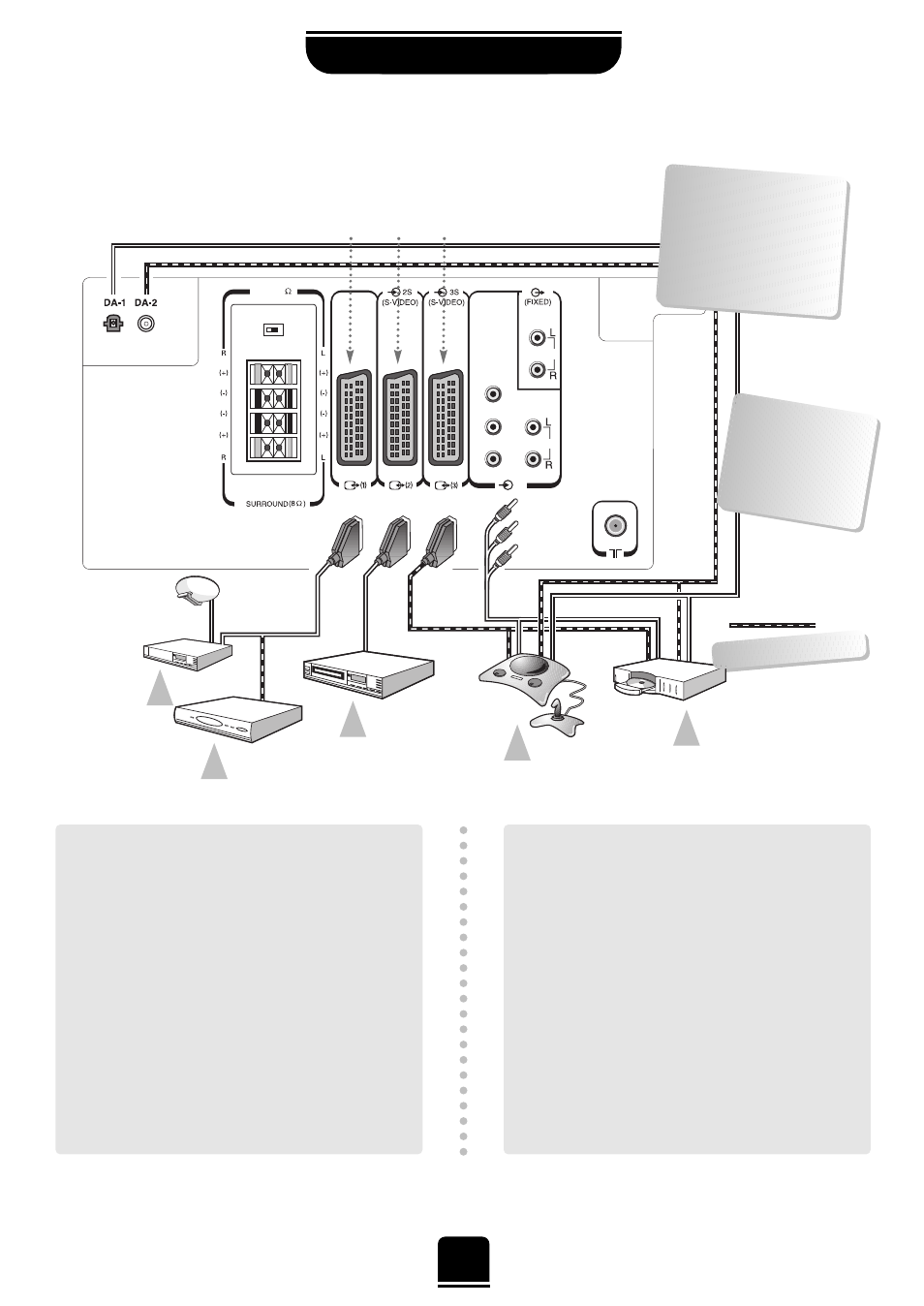

On the back of the TV are 3 Scart sockets, and a
selection of phono sockets, all of which will enable
you to connect a variety of equipment.
DA-1 and DA-2 enable the input of Digital Audio
signals.
The phono sockets alongside the COMPONENT
VIDEO INPUT sockets will accept L and R audio
signals.
In addition there is a fixed external audio output
which enables the connection to a suitable Hi-Fi
unit.
CONNECTING OTHER EQUIPMENT
Back connections
VIDEO RECORDER
DVD
DOLBY DIGITAL
GAMES CONSOLE
If connecting S-VIDEO equipment, set the
INPUT for
EXT2 or EXT3 accordingly.
See page 22.
Before connecting any external equipment,
turn off all main power switches.
If your TV automatically switches over to monitor
the connected equipment you can return to
normal TV simply by pressing the desired
programme position button.
To recall the connected equipment, press the
B button repeatedly to select between EXT1 ,
EXT2 , EXT3 and EXT4 .
Alternative connections
SET TOP BOX
DIGITAL TELEVISION
RECEIVER
SCART 1 SCART 2 SCART 3
We recommend, as
illustrated here,
Scart 1
for a Set Top Box, Scart 2
for a VTR and
Scart 3 for
additional equipment
and COMPONENT VIDEO
INPUT for a DVD.
You can also connect
other equipment…
Camcorder
, S-VHS
Video R
ecorder,
Hi-Fi, Laser Disk
Player etc.
