Battery Replacement
Under normal conditions, the original batteries in your UPS will last many years. See Safety
section before replacing batteries. The batteries are designed for hot-swap replacement (i.e. leaving the
UPS in ON mode), but some qualified service personnel may wish to put the UPS in the OFF mode
and disconnect equipment before proceeding.

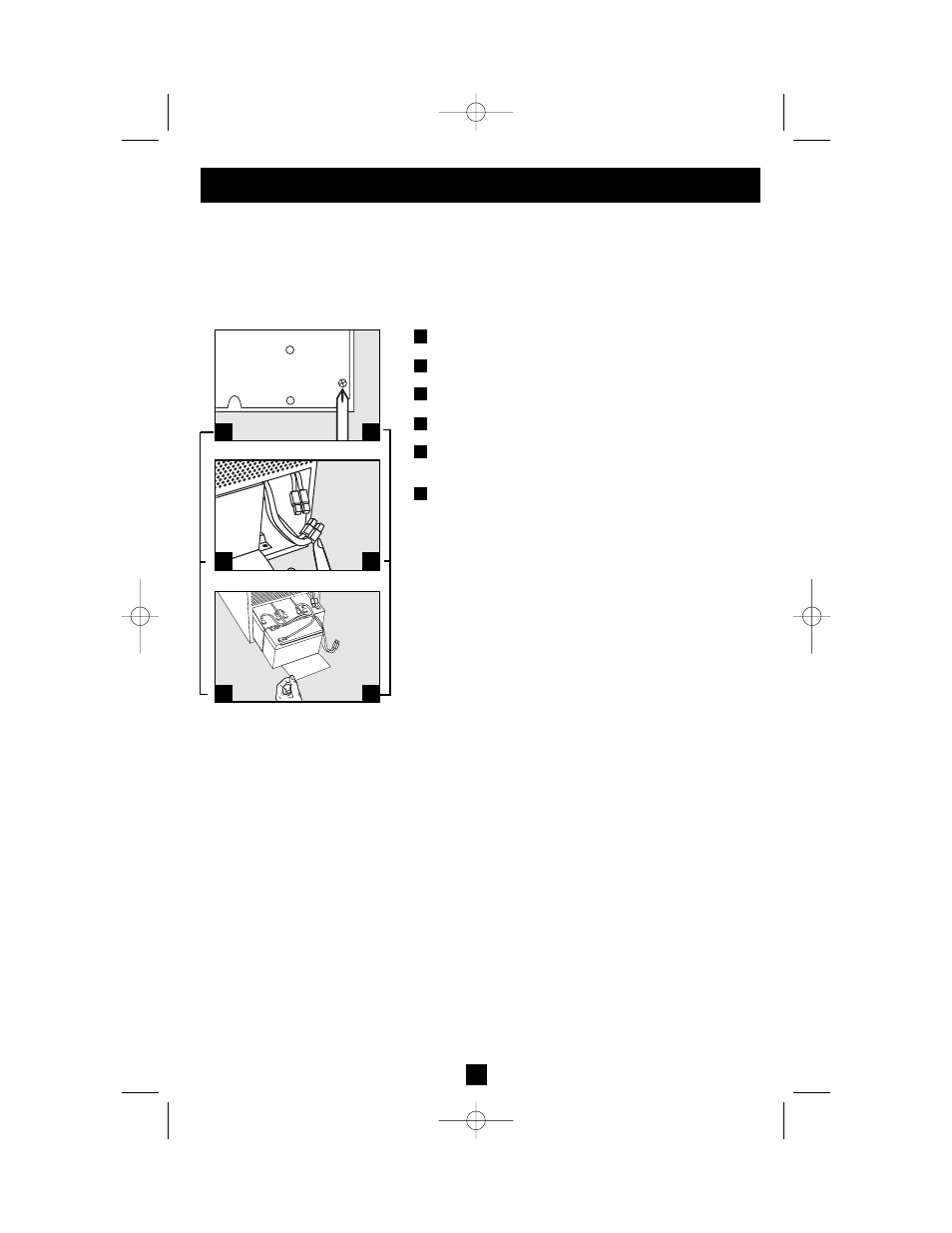

Procedure
Remove Front Panel
Disconnect Batteries
Remove/Dispose of Batteries
Add Batteries
Connect Batteries
Attach connectors: black-to-black and red-to-red.
Replace Front Panel
