P HONECELL SX3e AMPS 7 U SER M ANUAL
WARNING!
Never operate your Phonecell
when any person is within 16
inches (40 cm) of the antenna.

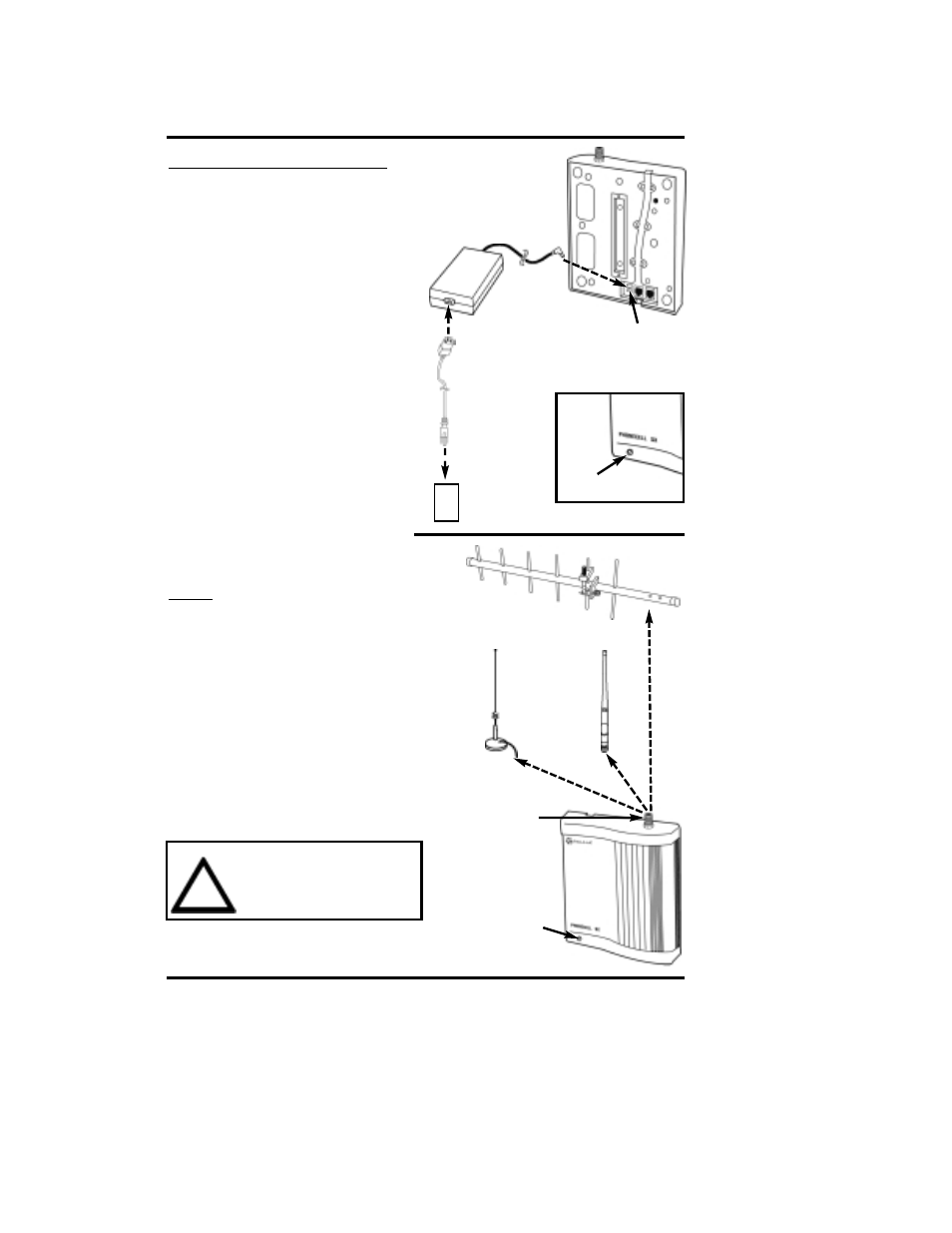

How to Connect the Antenna:
1) Connect the Power Supply to the
DC “PWR” port on the back of
the Phonecell – see Figure 3.
2) Connect the AC line cord from
the power supply to the AC power
source. After approximately 10
seconds, the LED indicator on
the front of the FWT should turn
RED – see Figure 4
3) Connect an antenna to the TNC
antenna connector on top of the
FWT – see Figure 5.
4) Test the cellular signal strength
by checking the LED indicator on
the front of your Phonecell:
••
RED = No Service
••
YELLOW = Moderate signal
••
GREEN = Good signal.
5) Move the antenna from one
location to another until you
achieve the best signal
strength possible.
6) When you’re getting a strong
(GREEN) signal, you’re ready for
the next step – connecting a
phone and making a call.
Antenna Location & Setup – Continued
T IP :
Many things can obstruct the cellular
signal, and moving the antenna as
little as one meter (3 feet) can
dramatically improve signal
strength and call reception.
!
AC Power
AC Line Cord
Fig. 3
TNC
Antenna
Connector
LED
Indicator
●
●
Optional
Power
Supply “PWR” Port
Optional
Magnetic-
Mount
Standard
Spike
Optional Yagi
LED
Indicator
Fig. 4
Fig. 5
