16
Connections

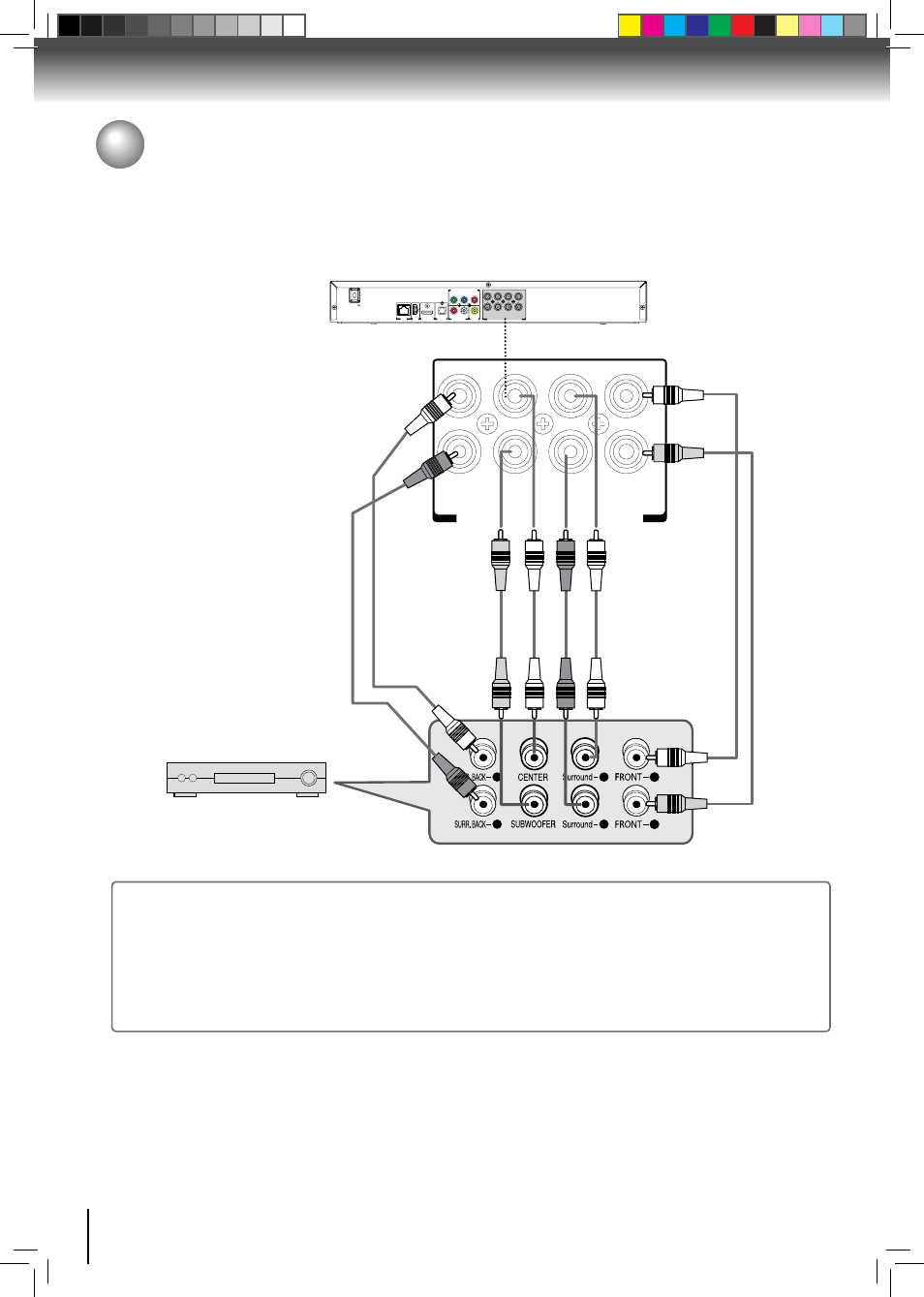

Connecting the Speakers (For 7.1 Audio Channel)
AC IN
lAN USB HDMI OUT R l
Y P B P R SBl C Sl Fl
SBR SW SR FR
MUlTI CHANNEl AUDIO OUTPUT BITSTREAM / PCM OPTICAl AUDIO OUT VIDEO OUT
COMPONENT VIDEO OUT
SBl C Sl Fl
SBR SW SR FR
MUlTI CHANNEl AUDIO OUTPUT
7.1 Channel Amplifier
l
R
l
R
l
R
Notes:
Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers •
and your ears.
The position of terminals may vary depending on the Amplifier. Please refer to the user’s manual of your Amplifier.
•
The front left and right outputs on your player and 7.1 channel amplifier must be connected to hear disc menu audio •
from certain Blu-ray discs.
When connecting to a 5.1 channel home theater or receiver, connect all the
• MUlTI CHANNEl AUDIO OUTPUT jacks
from the player except for the SBL (Surround Back Left) / SBR (Surround Back Right) outputs.
You can connect the speakers as shown in the following diagram to obtain the 7.1 audio channels effects. Using the audio
cables, connect the
MUlTI CHANNEl AUDIO OUTPUT (SBL, SBR, C, SW, SL, SR, FL & FR) terminals on the rear of
the Blu-ray disc player to 7.1 Channel ANALOG AUDIO IN terminals of your Amplifier.
For speaker configuration, please refer to “
Speaker Setting” on page 32.
