64

6 F 3 B 0 3 5 6

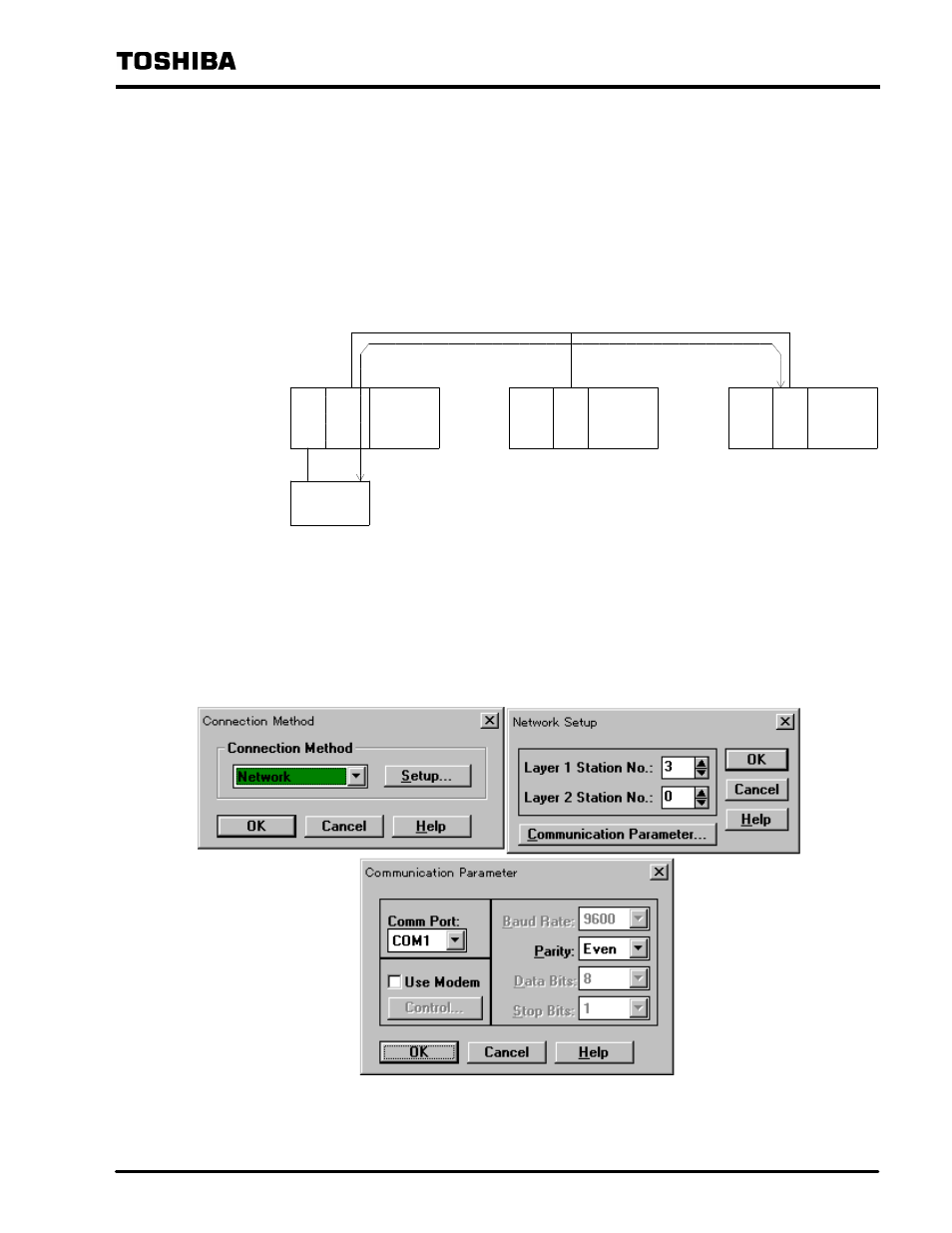

A.2 T-PDS remote programming
The T-PDS can be connected through the Loader port on the S-20LP-station, as well as the
Programmer port on the T2N/T3H CPU module. By using this function, remote
programming/monitoring through S20LP network is available.
(Note 1) T2N must be sellected P/S "ON" with DIP switch 1.
(Note 2) When DIP switch 1 is ON/OFF, T2N is Loader port/Programmer port.
-LP
S20 T2N
-LP
S20 T3H
-LP
S20 T3H
S20LP
STN #3 STN #2
T-PDS
STN #1
To use this function, T-PDS's connection method should be set as "Network".
The screen below is the setting example of T-PDS's connection method for the above
configuration.
Option
→
Communication (Connection Method)
→
Setup (Network Setup)
→
Communication Parameter (Communication Parameter)
(Note 1) When connecting on single layer, the Layer 2 Station No. should be set as 0.
(Note 2) The Parity is fixed as even.
