20

6 F 3 B 0 3 5 6

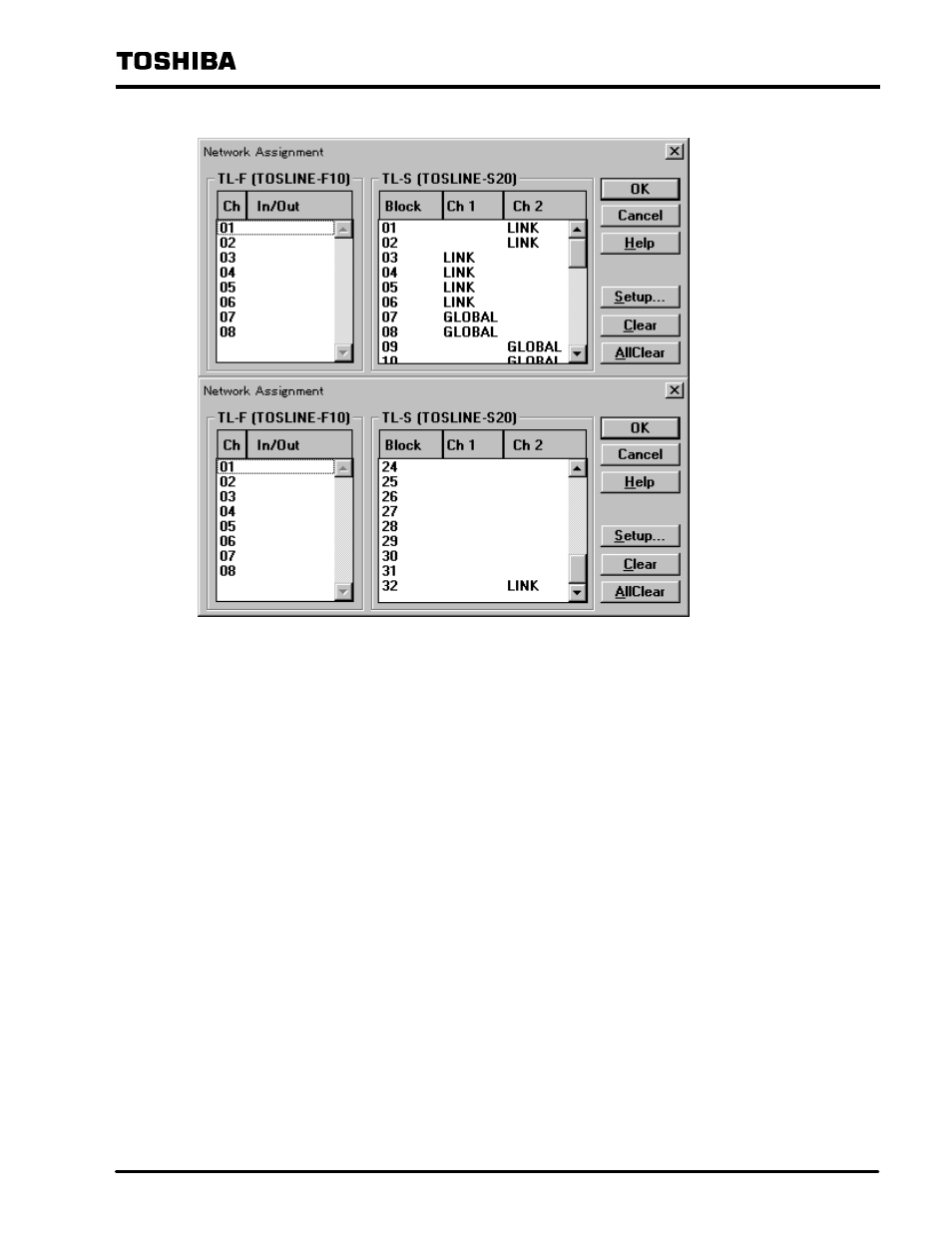

Note) The following rules are applied to the Network assignment. Do not set LINK both for
CH1 and CH2 for the same Block. If duplicated, CH1 has priority.
In the GLOBAL setting Block, the "receive" side CH data is transferred to the W register
and the "send" side CH. In this case, GLOBAL can be set on either CH.
In the GLOBAL setting Block, if both CHs are specified as "send", the W register data is
transferred to both CHs.
In the GLOBAL setting Block, if both CHs are specified as "receive", the GLOBAL
setting CH data is transferred to the W register. If both CHs have been set as GLOBAL,
CH1 has priority.
If TOSLINE-30 is used together, the TOSLINE-30 is allocated to the W registers from the
lowest address. In this case, the W registers which are assigned to the TOSLINE-30
should not be assigned to the S20LP. (TOSLINE-30 is available only for T2N)
