3. Setting for data linkage

3.1 Station number setting

Each station should have unique station number. If a station number is duplicated, the S20LP
network cannot be established. Allowable station number is 1 to 64. To set the station number,
two rotary switches (STNH and STNL) are provided on each station. STNH is for 10's digit
setting, and STNL is for 1's digit setting.

(For example)

STNH = 1

STNL = 5

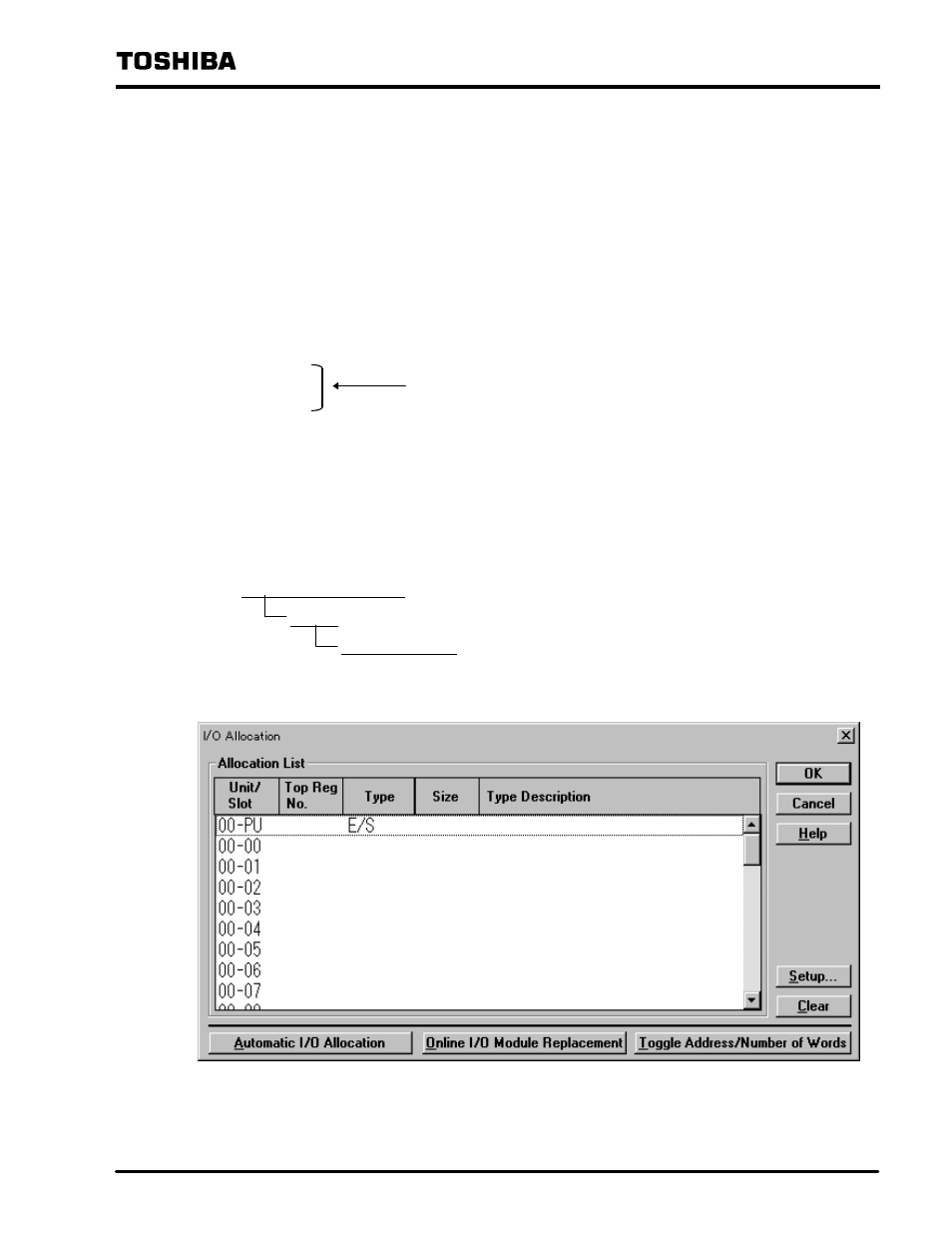

3.2 Settings on T-PDS

The following settings are necessary for the T2N/T3H on which the S20LP-station is mounted.

(1)

I/O allocation

Allocate the S20LP-station as "TL-S".

P: PLC

A: I/O Allocation

Station number is 15
