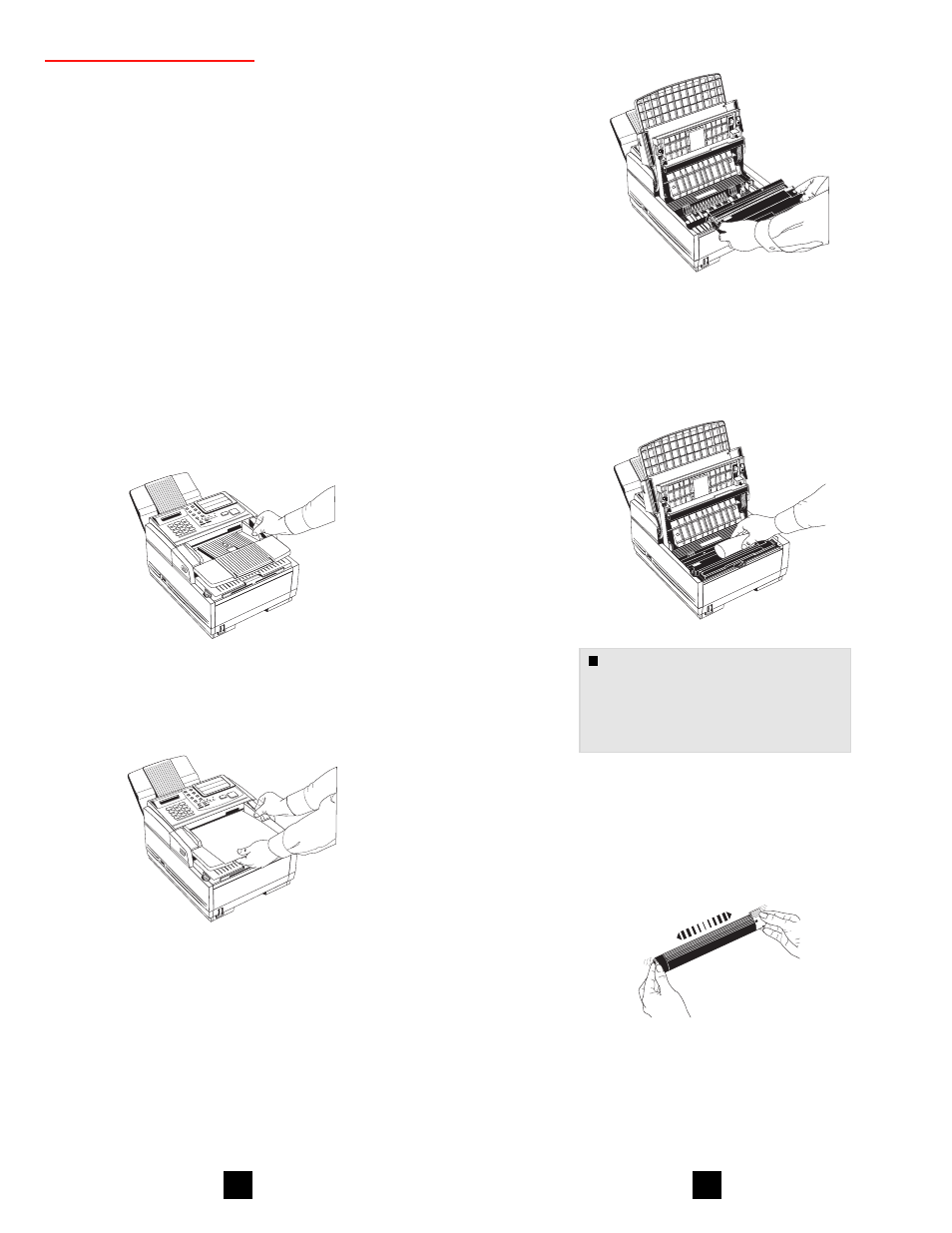

Install the Toner Cartridge

1. Remove the sponge and discard.

1

ABC

2

DEF

3

GHI

4

JKL

5

MN

6

PRS

7

TUV

8

W

XY

9

*

OQZ

0

#

AUTO REC

SEARCH

SEL

EC

T

FU

NC

TIO

N

AUTO DIAL

HYPHEN

REDIAL

COPY

HOOK

V. REQUEST


EX FINE

FINE

STD

LIGHT

NORMAL

DARK

ALARM

STOP

STAR

T

2. Unwrap the toner cartridge and gently shake it to

distribute the toner. Then carefully peel the tape
from the bottom of the toner cartridge.

4

Warning: Be careful when handling the
toner cartridge. Do not let toner spill on
your clothing or other porous materials. If
you experience any problems with toner,
see the Safety chapter at the beginning of
the OKIFAX handbook.

5. Replace the image drum cartridge.

1

ABC

2

DEF

3

GHI

4

JKL

5

MN

6

PRS

7

TUV

8

WXY

9

*

OQZ

0

#

AUTO REC

SEARCH

SEL

EC

T

FU

NC

TIO

N

AUTO DIAL

HYPHEN

REDIAL

COPY

HOOK

V. REQUEST


EX FINE

FINE

STD

LIGHT

NORMAL

DARK

ALARM

STOP

STAR

T

PUSH

PUSH

7

1. Adjust document guides to the width of the

document

2. Stack documents neatly, and insert face down.

Readjust the document guides for a snug fit.

3. OKIFAX grips the documents and pulls the

bottom page into the machine.

Loading Documents

See your Handbook for more information.

Document Guidelines

Size: 5.8"—8.5" wide, 5"—14" long

Basis weight: 13—28 lb.

Surfaces clean

Not wrinkled, stapled, or clipped

Rectangular

Multipage documents should be the same size and
shape, neatly aligned

Maximum number of pages: 30 pages, normal
weight paper (20 lb.); 15 pages for light or heavy
weight paper
