4

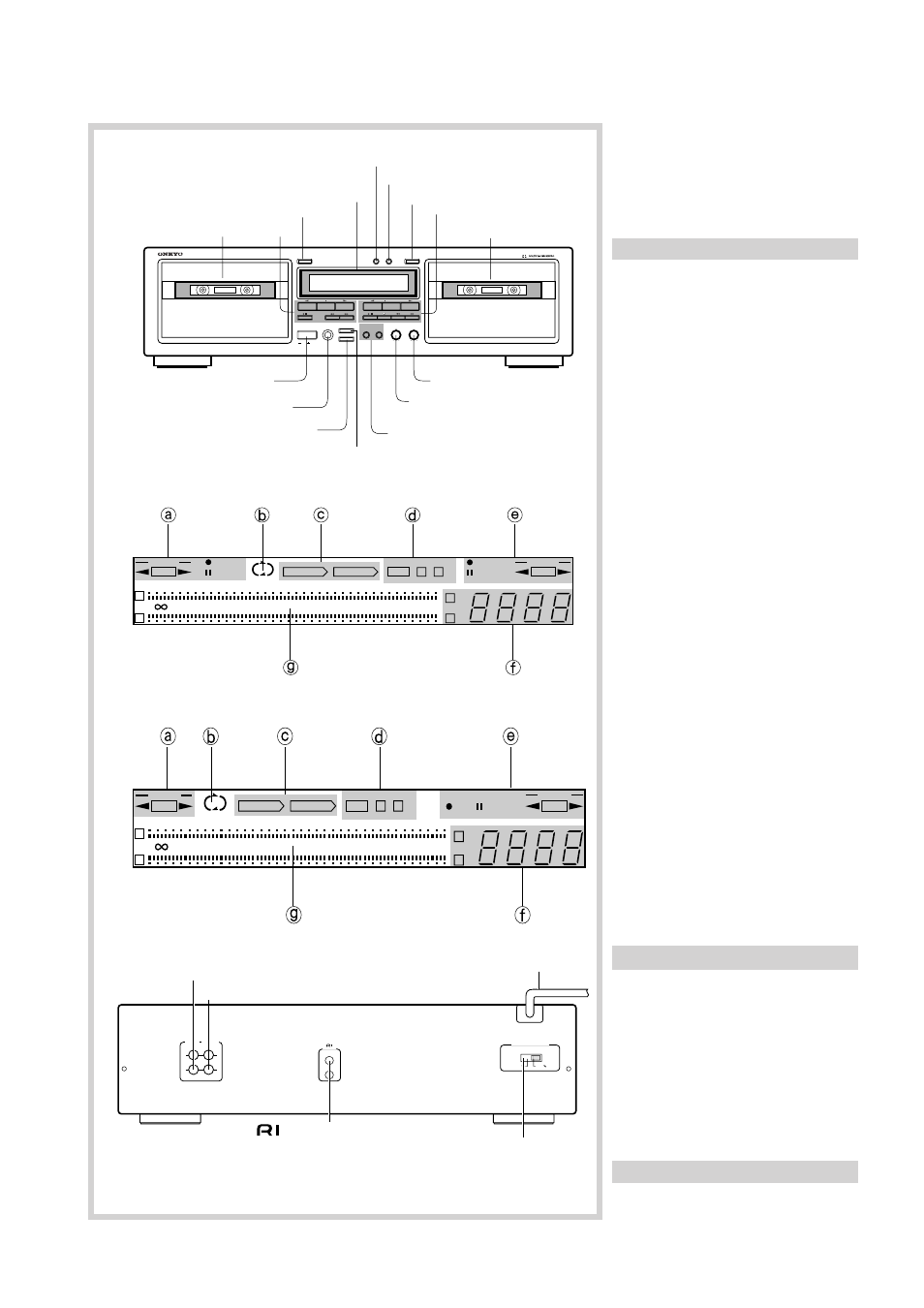

Control Positions and Names
If there is a protective film on the surface of
the display, which makes it difficult to read
the display, remove it.
For more information about a button or
control, turn to the page number listed in
square brackets ([ ]).
Front panel
1. Deck A cassette holder
2. Deck A operation buttons
a : Reverse play button [6]
e : Stop button [6,9]
s : Forward play button
[6,9,10,11]
t : Rec/pause button [9,10,11]
(TA-RW544 only)
d: Rewind button [7]
f: Fast forward button [7]
3. Deck A EJECT button [6,8]
4. Display
5. DECK A/B counter button
[9,10,11]
6. Counter RESET button [9,10,11]
7. Deck B EJECT button [6,8]
8. Deck B operation buttons
a : Reverse play button [6]
e DUBB.STOP : Stop button
(Dubbing stop) [7,9,12]
s : Forward play button
[6,9,10]
t : Rec/pause button [9,10,12]
; : Auto space button [13]
d: Rewind button [7]
f: Fast forward button [7]
9. Deck B cassette holder
10. REC LEVEL control knob
[9,10,11]
11. REC BALANCE control knob
[9,10,11] (TA-RW544 only)
12. DUBBING buttons (NORMAL/
HIGH) [12]
13. REVERSE MODE button
[6,8,12,15]
14. DOLBY NR button [6,8]
15. PHONES (Headphones) jack [7]
16. POWER button [5]
Display
a Deck A operation and direction
indicators
b Reverse mode indicator
c Dubbing indicators
d Dolby NR indicators
e Deck B operation and direction
indicators
f Electric counter
g Peak level indicator
Rear panel
1. Line in jacks [5]
2. Line out jacks [5]
3. Voltage selector [5] (Worldwide
model only)
4. Remote control jacks [14]
5. AC power cord [5]
LINE IN LINE OUT
L L
R R
(REC) (PLAY)
220V-230V 120V
1. LINE IN
2. LINE OUT
3. VOLTAGE SELECTOR
5
4. REMOTE CONTROL
REMOTE CONTROL
VOLTAGE SELECTOR
PLAY
DECK-A
- -20 -10 -6 -3 0 +3 +6
HI-SPEED DUBBING OFF B
B
A
C
DOLBY NR
REC PAUSE PLAY
DECK-B
L
R
dB
PLAY
DECK-A REC
PAUSE
- -20 -10 -6 -3 0 +3 +6
HI-SPEED DUBBING OFF B
B
A
C
DOLBY NR REC
PAUSE PLAY
DECK-B
L
R
dB
(TA-RW344)
(TA-RW544)
1 2
3. EJECT
4
5. DECK A/B
7. EJECT
8
9
16. POWER
13. REVERSE MODE
6. RESET
12. DUBBING
11. REC BALANCE
(TA-RW544 only)
10. REC LEVEL
15. PHONES
14. DOLBY NR
POWER
EJECT EJECT DECK A/B RESET
PHONES REVERSE MODE DUBBING
NORMAL HIGH
REC BALANCE REC LEVEL
DOLBY NR
L R MIN MAX
DUBB. STOP
/ /
ON OFF
2 MOTER COMPUTER CONTROL
AUTO REVERSE
2 MOTER COMPUTER CONTROL
AUTO REVERSE
DECK A DECK B
STEREO CASSETTE TAPE DECK TA-RW544
