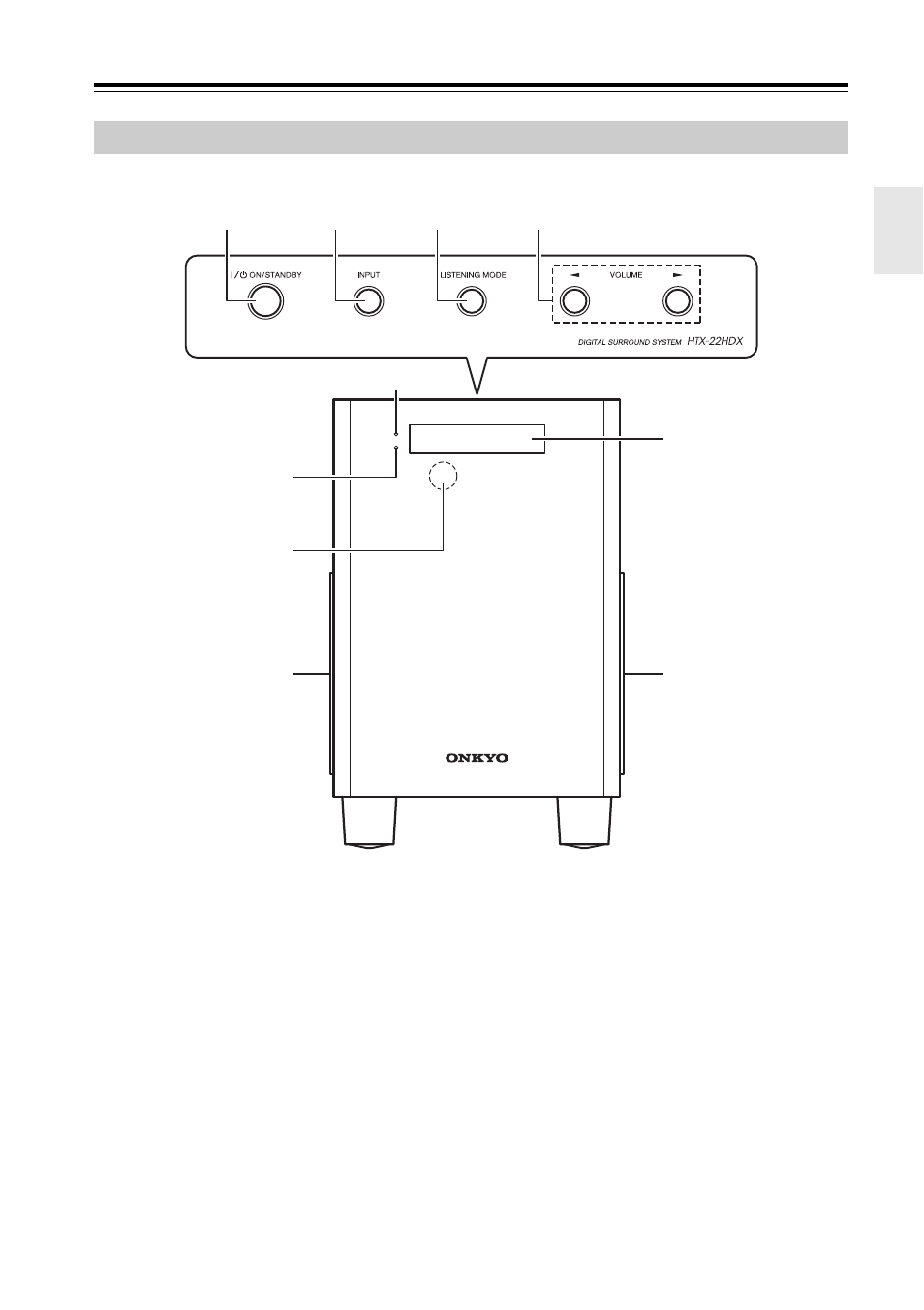

Getting to Know the HTX-22HDX

For detailed information, see the pages in parentheses.

a

ON/STANDBY button (27)

b

INPUT button (28)

c

LISTENING MODE button (32)

d

VOLUME []/[] buttons (28)

e

STANDBY indicator (red) (27)

f

HDMI Thru indicator (orange) (44)

g

Remote-control sensor (12)

h

Bass-reflex port

i

Display

Top Panel and Front

STANDBY

HDMI Thru

1

2

3

4

5

8

8

9

7

6

Top panel
