Getting to Know the HTX-22HDX

—Continued

For detailed information, see the pages in parentheses.

a

HDMI IN 1, IN 2, IN 3, and OUT (49)

b

COAXIAL DIGITAL IN 1 (21)

c

OPTICAL DIGITAL IN 2 and IN 3 (21)

d

REMOTE CONTROL (23)

e

AC INLET (27)

f

FRONT SPEAKERS, CENTER SPEAKER, and
SURROUND SPEAKERS (17)

g

Cooling fan

h

LINE 1 and LINE 2 INPUT (22)

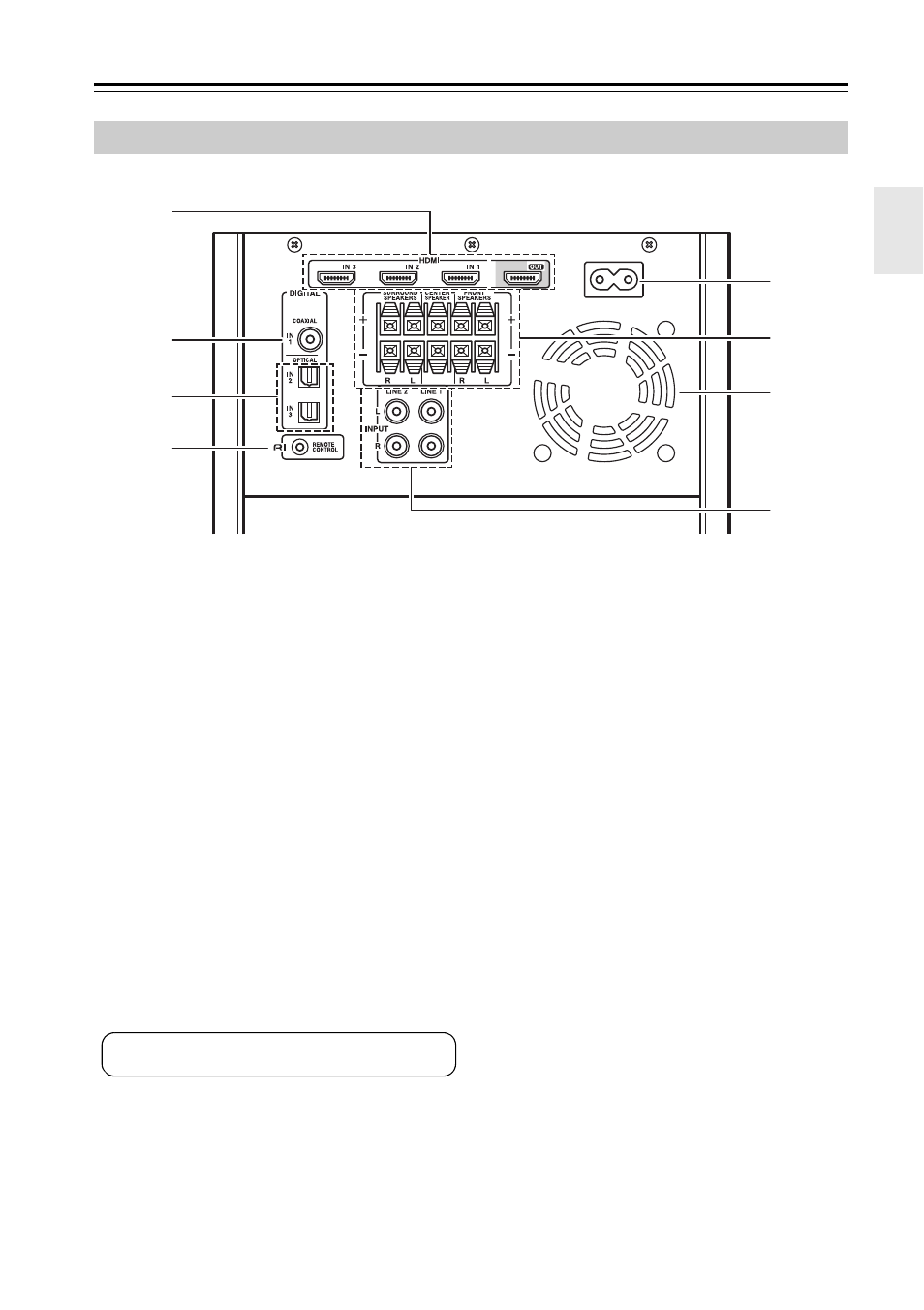

Rear Panel

AC INLET

CAUTION :

SPEAKER IMPEDANCE
6 ~ 16

Ω/SPEAKER

1

4

3

2

5

7

8

6

See pages 14–24 for hookup information.
