Onkyo TX-DS787 - Manual (Page 29)

29
Menu
1.Speaker Setup
2.Input Setup
3.Listening Mode Setup
4.Preference
5.OSD Setup
|ENTER| Quit:|OSD|
1.Speaker Setup
1.Speaker Config
2.Speaker Distance
3.Level Calibration
4.Bass Peak Level
|ENTER| Quit:|OSD|
1-1.Speaker Config
a.Subwoofer :Yes
b.Front :Small
c.Center :Small
d.Surr L/R :Small
e.Surr Back :Small
f.Surr Back Out :1ch
Quit:|OSD|
1. Press the MENU button.
The main menu screen of the OSD menu appears on your TV
monitor.
2. Using the and cursor buttons, select the
menu that you want to enter.
3. Press the ENTER button to enter the selected
menu.
The screen for that menu appears.
4. Using the and cursor buttons, select the
sub-menu that you want to enter, and press
the ENTER button.
Each sub-menu has different settings that can be changed as
desired, and they are all explained below. To change a setting,
first select it using the and cursor buttons, and then
change the setting using the and cursor buttons.
5. Press the EXIT button to set the new settings
and return to the previous menu screen, and
again to return to the main screen.
Note:
Press the MENU button to exit the OSD menu immediately.
If the OSD Menu does not appear
If the monitor is connected to MONITOR OUT (VIDEO) of the
TX-DS787, then perform the operations given below and set the
OSD output to “Video.” (The initial setting is “S Video.”)
1. Press the MENU button.
“1. Speaker Setup” appears in the front display.
2. Turn the SSC dial to the right to display “5.
OSD Setup” and press the SSC dial.
“OSD Config?” appears.
3. Press the SSC dial.
“OSD Out: S Video” appears.
4. Turn the SSC dial to the right to display “OSD
Out: Video.”
The OSD output changes to “Video.”

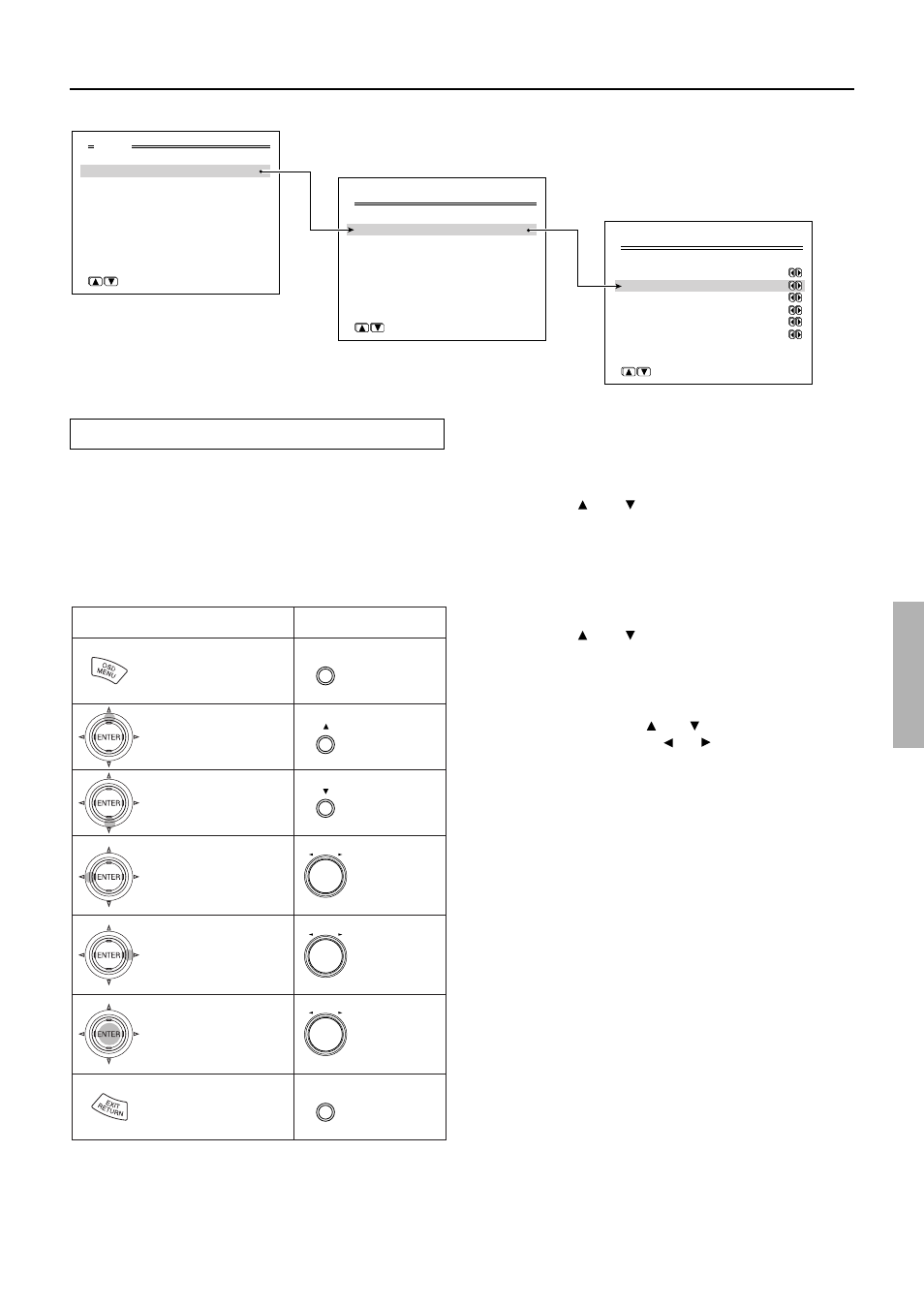

The On-Screen Display (OSD) menu
Main menu
Menu
Sub menu
OSD
Navigating through the OSD menu
The explanations here assume you are using the buttons on the
TX-DS787 when entering the OSD menu. However, you can use
the buttons on the remote controller as well. In addition to the
display of the OSD Menu on your television monitor, the
corresponding menu will also be displayed in the front display on
the TX-DS787.
The buttons on the remote controller correspond to those on the
TX-DS787 as shown below.
DSP/PRESET
PUSH TO ENTER
DSP/PRESET
PUSH TO ENTER
DSP/PRESET
PUSH TO ENTER
MENU
EXIT
Button on remote controller Button on TX-DS787
OSD/MENU
(upper edge of
ENTER button)
(lower edge of
ENTER button)
(left edge of
ENTER button)
(right edge of
ENTER button)
ENTER
EXIT/RETURN
MENU
UP
DOWN
(turn the
SSC dial
to the left)
(turn the
SSC dial
to the right)
(press the
SSC dial)
EXIT
