Page 23
23
REMOTE
CONTROL
PRE
OUT
R
L
R
L
DIGITAL
OUTPUT
(OPTICAL)
DIGITAL
INPUT
(OPTICAL)
1
FRONT
SURR
VIDEO
S VIDEO
ZONE 2
MAIN
IR IN
ANTENNA
AM
FM
75
REMOTE
CONTROL
PRE
OUT
R
L
R
L
DIGITAL
OUTPUT
(OPTICAL)
DIGITAL
INPUT
(OPTICAL)
1
FRONT
SURR
VIDEO
S VIDEO
ZONE 2
MAIN
IR IN
ANTENNA
AM
FM
75

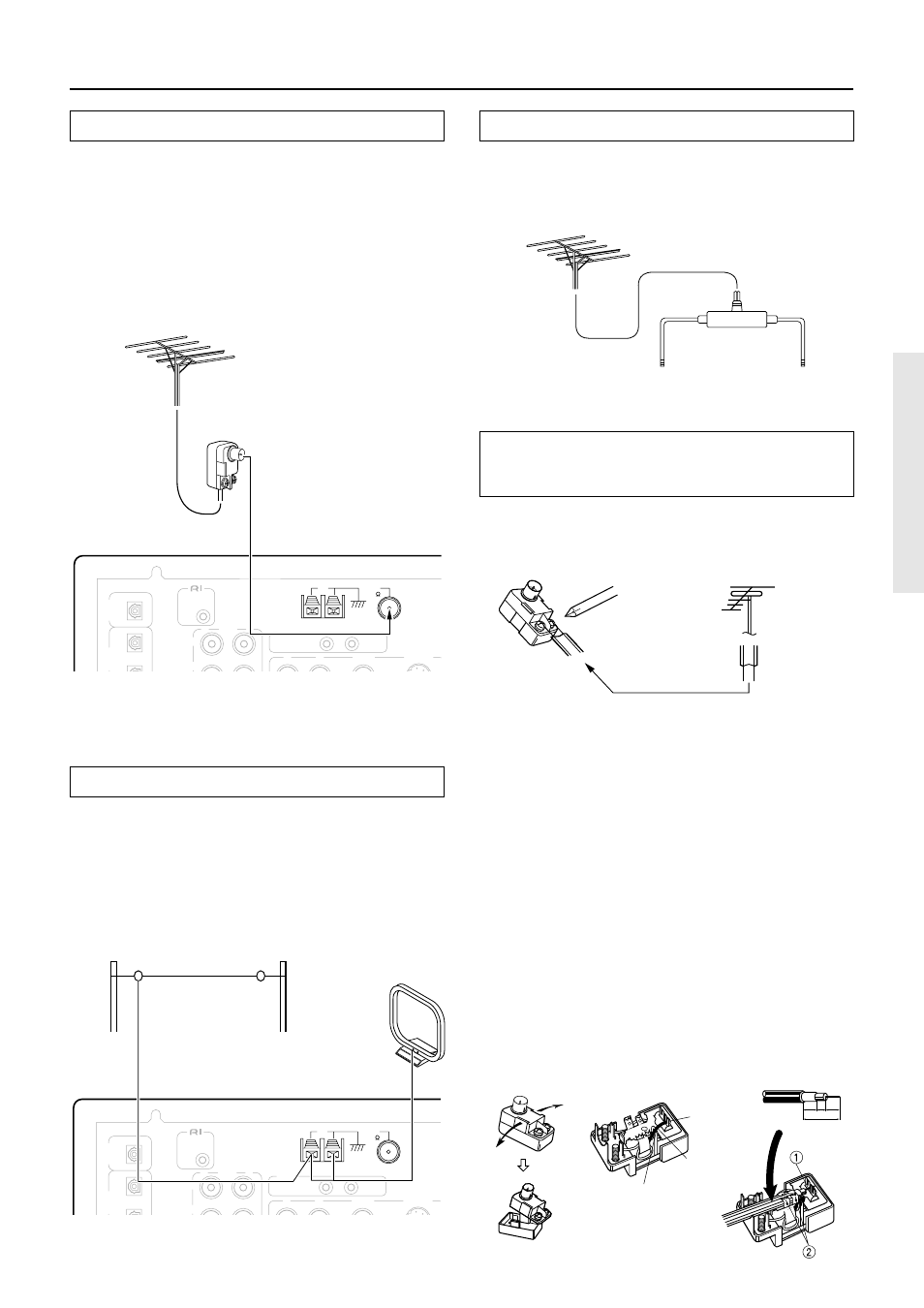

Connecting antennas
Outdoor antenna
(Indoor) AM loop antenna
To TV (or VCR)
To receiver
1
2
3, 4
✦ ✦
✦
✦ ✦
✦
✦
✦
✦
✦
✦
6
mm
3
mm
6
mm
15mm
5/8"
Slit B
Wire A
Slit C
Connecting the antenna cable to the 75/300
Ω
antenna adapter (For all models other than
USA, Canadian and European models)
Connecting the 300
Ω ribbon wire:
Loosen the screws and wrap the wire around these screws. Then
tighten the screws with a screwdriver.
Connecting the coaxial cable:
1. With your fingernail, or a small screwdriver,
press the stoppers of the 75/300
Ω antenna
adapter outward and remove the cover.
2. Remove the transformer wire A from slit B and
insert it into slit C.
3. Prepare the coaxial cable as shown in the
diagram.
4. Connect the 75/300
Ω antenna adapter to the
coaxial cable.
1
Insert the end of the cable.
2
Clamp it in place with pliers.
5. Reinstall the cover.
Connecting an AM outdoor antenna
An outdoor antenna will be more effective if it is stretched
horizontally above a window or outside.
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical shock, grounding
is necessary. Follow item 14 of the “Important Safeguards” on
page 2 when you install the outdoor antenna.
Directional linkage
Do not use the same antenna for both FM and TV (or VCR)
reception since the FM and TV (or VCR) signals can interfere with
each other. If you must use a common FM/TV (or VCR) antenna,
use a directional linkage type splitter.
Connecting an FM outdoor antenna
Please make sure that you follow the considerations:
• Keep the antenna away from noise sources (neon signs, busy
roads, etc.).
• It is dangerous to put the antenna close to power lines. Keep it
well away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock, grounding
is necessary. Follow item 14 of the “Important Safeguards” on
page 2 when you install the outdoor antenna.
Outdoor
antenna
300
Ω
ribbon wire
