E-6

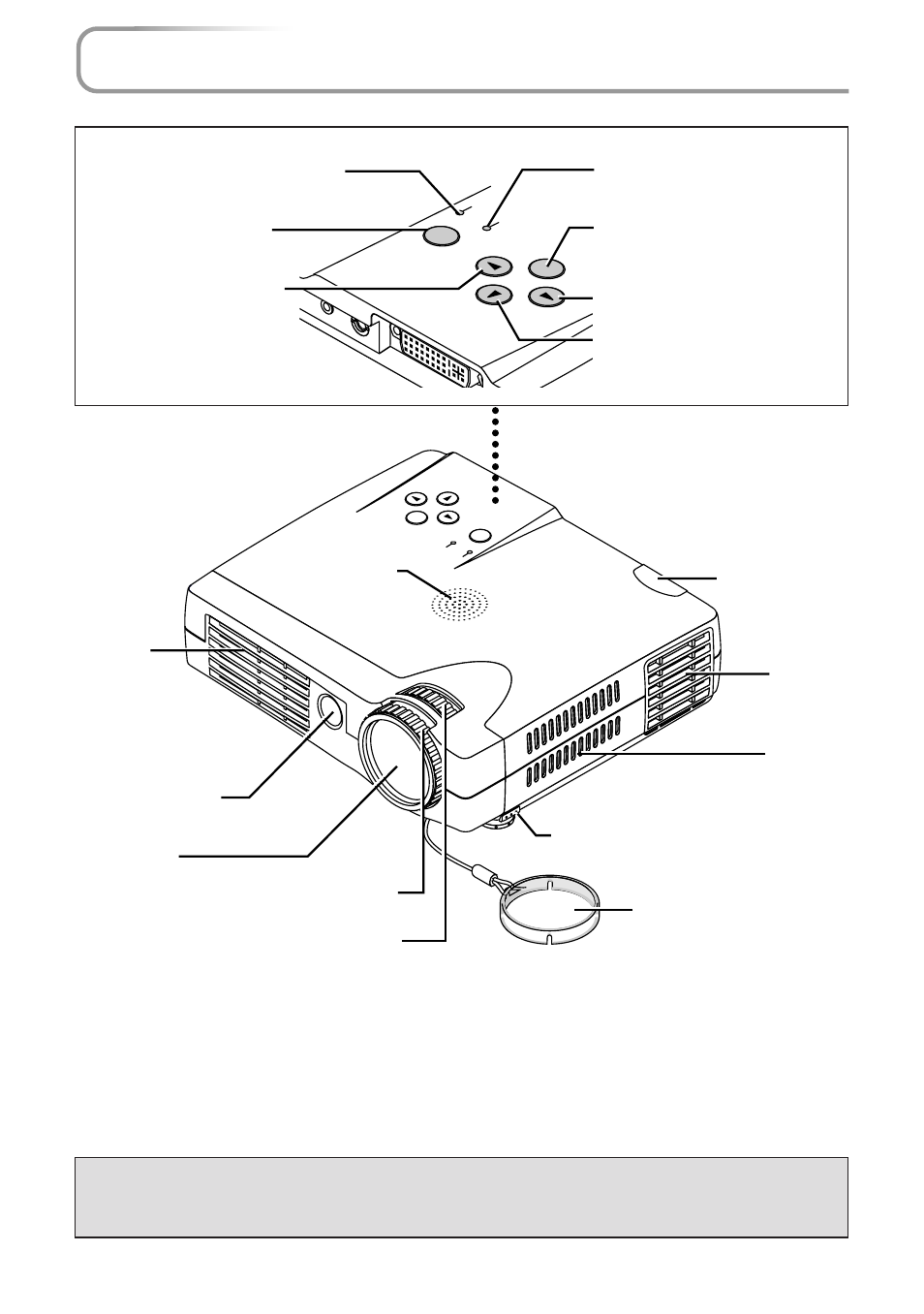

Names of the Main Unit Parts

POWER

AUTO

MENU

STATUS

PO

WER

SOURCE

QUICK

MENU

AUD

IO

VIDEO

POWER

AUTO

MENU

STATUS

POWER

SOURCE

QUICK

MENU

Exhaust
vents

STATUS indicator [E-31,32(S)]

POWER button
[E-16,17(S)]

SOURCE button
[E-20(S)]

POWER indicator
[E-16,17,31,32(S)]

MENU button [E-38(C)]

AUTO button [E-21(S)]

QUICK MENU button [E-24(S)]

Remote control
sensor [E-14(C)]

Front adjuster button [E-19(S)]
(There is also one on the left side.)

Speaker

Exhaust
vents

Remote control
sensor [E-14(C)]

Lens

Focus ring [E-19(S)]

Lens cap
To protect the lens, attach the lens
cap when the projector is not in use.

Ventilation
slots

Zoom ring [E-18(S)]

Precautions
The ventilation slots discharge the heat of the lamp and care must be taken not to come into
contact with them.
