• Before you plug in the TX-SR800, confirm that all connections
have been made properly.
• Turning on the power may cause a momentary power surge,
which might interfere with other electrical equipment on the
same circuit, such as computers. If this happens, use a wall outlet
on a different circuit.
(All models other than USA and Canadian models)
• The TX-SR800 is shipped with the main power (POWER)
switch in the on position ( ON ). When the power cord is
plugged in for the first time, the TX-SR800 will automatically
enter the standby state and the STANDBY indicator will light
(same condition after step 2 below).
Turning on the power
1. Plug the power cord into an AC wall outlet.
(USA and Canadian models)
The STANDBY indicator will light up.
(All models other than USA and Canadian models)
Press the POWER switch to set the
TX-SR800 to standby state.
The STANDBY indicator will light up.
2. Press the STANDBY/ON button to turn on the TX-
SR800.
The display will light up and the
STANDBY indicator will turn off.
If you press the STANDBY/ON button
again, the receiver returns to Standby
state.
Turning on the power from the remote controller
Before you can use the remote controller, you must perform steps 1
and 2 above and place the TX-SR800 in the standby state.
1. Press the RCVR MODE button.
The RCVR MODE button lights.
2. Press the ON button to turn on the TX-SR800 (take it
out of the standby state).
To return the TX-SR800 to the standby state,
press the STANDBY button.

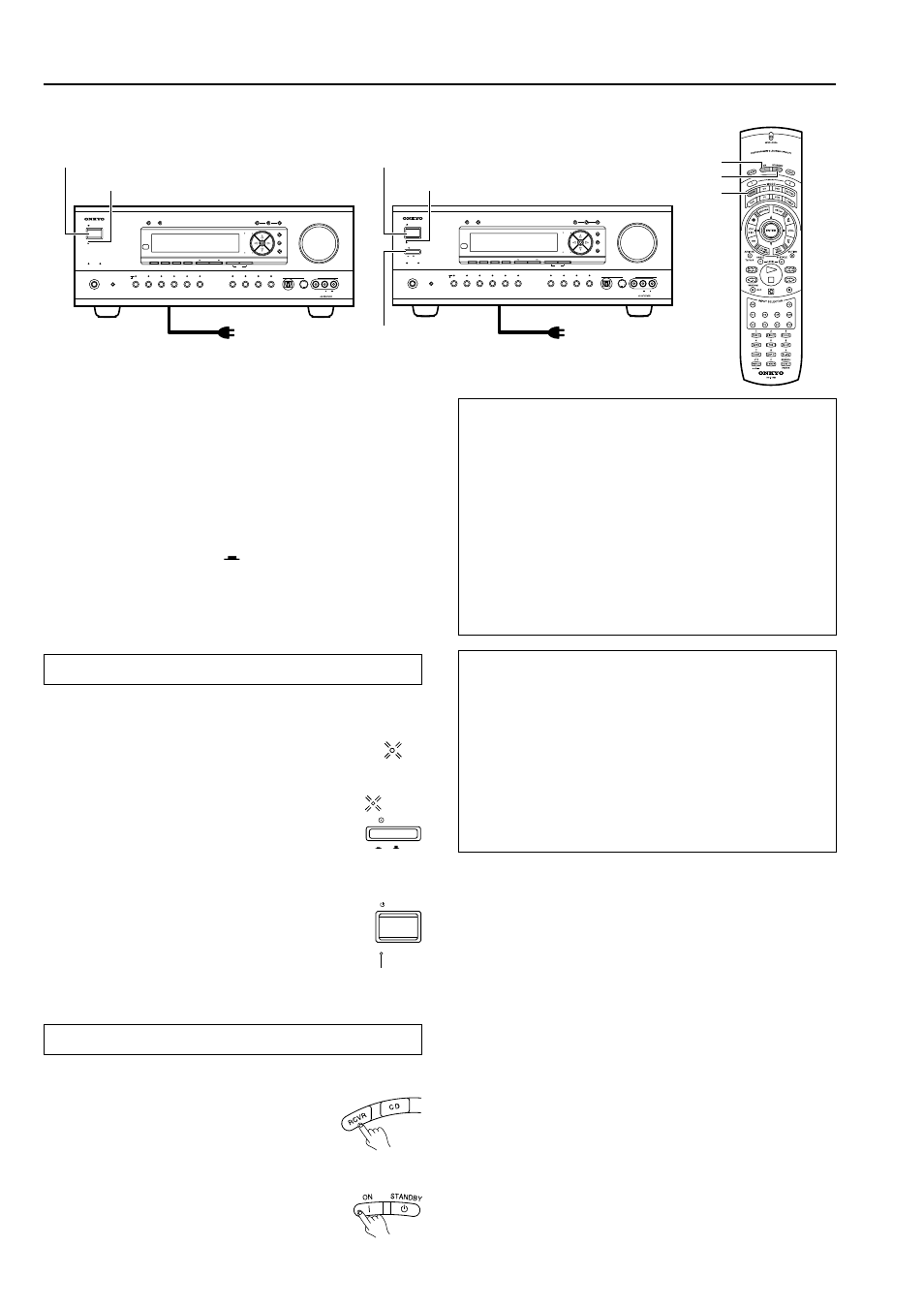

Connecting the power
Turn off
STANDBY/ON
STANDBY
PHONES
MASTER VOLUME
TX-SR800
TAPE TUNER PHONO C D VIDEO 4 VIDEO 5 VIDEO 3 VIDEO 2 VIDEO 1 DVD
OFF ZONE 2 REC OUT DISPLAY DIMMER
AUDIO SELECTOR
ZONE 2 ( ) GRN REC ( ) RED
VCR 2 VCR 1 S VIDEO AUDIO VIDEO L R DIGITAL
VIDEO 5 INPUT
CLEAR
PURE AUDIO UPSAMPLING DSP A-FO RM LISTENING MODE MEMORY THX SURROUND DIRECT / PURE AUDIO STEREO FM MODE MEMORY
ENTER
RETURN
SETUP TUNING
PRESET
ON
RCVR
STANDBY/ON
STANDBY
STANDBY/ON
STANDBY
PHONES
MASTER VOLUME
TAPE TUNER PHONO C D VIDEO 4 VIDEO 5 VIDEO 3 VIDEO 2 VIDEO 1 DVD
OFF ZONE 2 REC OUT DISPLAY DIMMER
AUDIO SELECTOR
ZONE 2 ( ) GRN REC ( ) RED
VCR 2 VCR 1 S VIDEO AUDIO VIDEO L R DIGITAL
VIDEO 5 INPUT
OFF ON
POWER
TX-SR800
PURE AUDIO UPSAMPLING
CLEAR
DSP A-FO RM LISTENING MODE MEMORY THX SURROUND DIRECT / PURE AUDIO STEREO FM MODE MEMORY
ENTER
RE TURN
SETUP TUNI NG
PRESET
POWER
STANDBY/ON
STANDBY
OFF ON
POWER
STANDBY/ON
STANDBY
STANDBY indicator
To wall outlet
STANDBY
Memory preservation (Other than USA and Canadian
models)
The TX-SR800 does not require memory preservation batteries.
A built-in memory backup system preserves the contents of
memory (e.g., speaker settings and surround settings) during
power failures and even when the power is turned off with the
POWER switch. The backup system is charged when the
POWER switch is turned on.
The length of time that the memory will be preserved will vary
depending on the ambient climate. On the average, memory
contents are protected over a period of a few weeks after the last
time the unit has been turned off. This period may be shorter
when the unit is exposed to a highly humid climate.
Memory preservation (USA and Canadian models)
The TX-SR800 does not require memory preservation batteries.
A built-in memory backup system preserves the contents of
memory (e.g., speaker settings and surround settings) during
power failures and even when the unit is unplugged. The unit
must be plugged in order to charge the back-up system.
The length of time that the memory will be preserved will vary
depending on the ambient climate. On the average, memory
contents are protected over a period of a few weeks after the last
time the unit has been unplugged. This period may be shorter
when the unit is exposed to a highly humid climate.
To wall outlet
STANDBY indicator
(USA and Canadian models) (All models other than USA and Canadian models)
