13

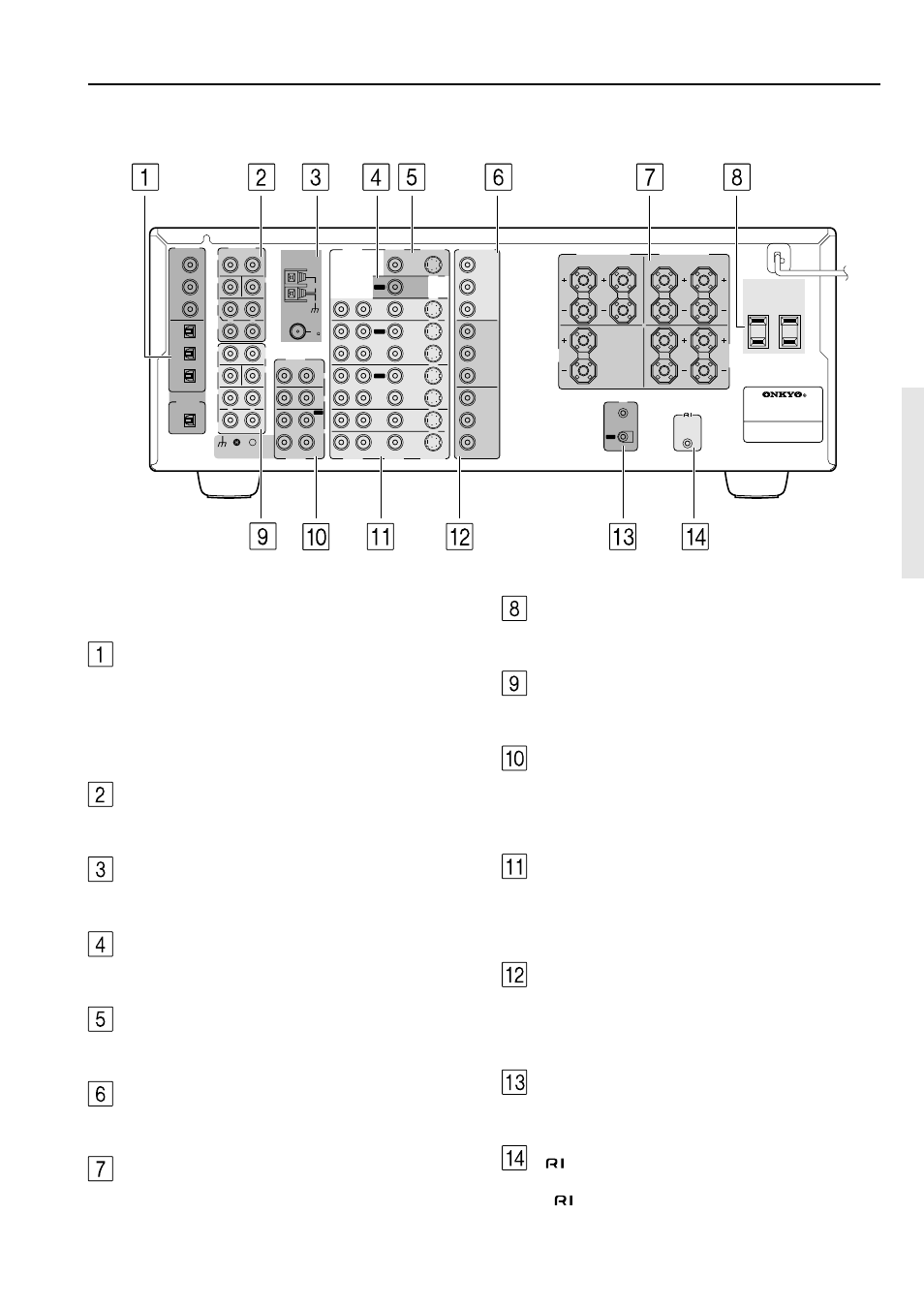

Index parts and facilities

Rear panel

SURR
BACK/
ZONE 2
SPEAKERS

AUDIO

VIDEO

S VIDEO

MONITOR

OUT

R

L

IN

IN

IN

IN

IN

ZONE 2

DVD

VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

AUDIO

VIDEO

S VIDEO

COMPONENT

VIDEO

Y

P

B

P

R

OUTPUT

INPUT 1

Y

P

B

P

R

INPUT 2

Y

P

B

P

R

FRONT SPEAKERS

L

R

L

R

SURR SPEAKERS

CENTER
SPEAKER

R

L

AC OUTLETS

AC 120 V 60 Hz

SWITCHED

TOTAL 120W 1A MAX.

AV RECEIVER

MODEL NO.

TX-SR

800

R

L

OUT

OUT

OUT

I R

IN

OUT

REMOTE

CONTROL

PHONO

DIGITAL

INPUT

PRE OUT

DIGITAL

OUTPUT

OPT

OPT

2

1

2

3

FRONT

SUB

SURR

R

L

AUDIO

R

L

CD

TAPE

R

L

AUDIO

1

3

GND

SURR

BACK/

ZONE 2

IN

OUT

COAX

R

L

MULTI CH
INPUT

FRONT

SUB

SURR

SURR
BACK

CENTER

R

L

R

L

AM

FM

75

CENTER

ANTENNA

4 OHMS MIN. OR
6 OHMS MIN.
/SPEAKER

CAUTION:

SPEAKER

IMPEDANCE

SEE
INSTRUCTION
MANUAL FOR
CORRECT
SETTINGS.

For more information regarding connection procedures, see pages
indicated in brackets [ ].

DIGITAL INPUT/OUTPUT [15-19]

These jacks are for connecting components with digital input and
output capabilities. To connect a CD player, see page 15; to connect
an MD or CD recorder, see page 15; to connect a DAT deck, see
page 15; to connect a DVD player, see page 16; to connect a DVD
recorder, see page 18; and to connect a digital satellite tuner, see
page 19.

PRE OUT [27]

To use the TX-SR800 as a preamplifier, connect a power amplifier to
this jack.

ANTENNA [22-23]

These jacks are for connecting the FM indoor antenna and AM loop
antenna that are supplied with the TX-SR800.

ZONE 2 VIDEO OUT [24]

These jacks are for connecting the components that will be used in
the remote zone (Zone 2).

MONITOR OUT VIDEO/S VIDEO [17]

These jacks are for connecting to the video input jacks on television
monitors or projectors.

COMPONENT VIDEO OUTPUT [17]

These jacks are for connecting to the component video input jacks on
television monitors or projectors.

SPEAKERS [20-21]

These terminals are for connecting the speakers.

AC OUTLETS [26]

This AC outlet is provided to plug in the power cord from another
component.

MULTI CH INPUT [27]

This connector is for connecting components with a multi-channel
output.

PHONO/CD/TAPE AUDIO IN/OUT [15]

These connectors are for connecting to the audio input and output
jacks on audio components. To connect a turntable, see page 15; to
connect a CD player, see page 15; and to connect a cassette tape
deck, MD recorder, or CD recorder, see page 15.

DVD/VIDEO1-4 IN/OUT [16-19]

These connectors are for connecting to the video input and output
jacks on video components. To connect a DVD player, see page 16;
to connect a DVD recorder, see page 18; to connect a VCR, see page
17; and to connect a satellite tuner, see page 19.

COMPONENT VIDEO INPUT1/2 [16, 18]

These connectors are for connecting to the component video outputs
of video components that have them. To connect a DVD player, see
page 16; to connect a DVD recorder, see page 18; and to connect a
satellite tuner, see page 19.

IR IN/OUT [25]

These connectors are for connecting the remote sensor of a multi-
room kit (sold separately).

[26]

This jack is for connecting other Onkyo components equipped with
the same

terminal.
